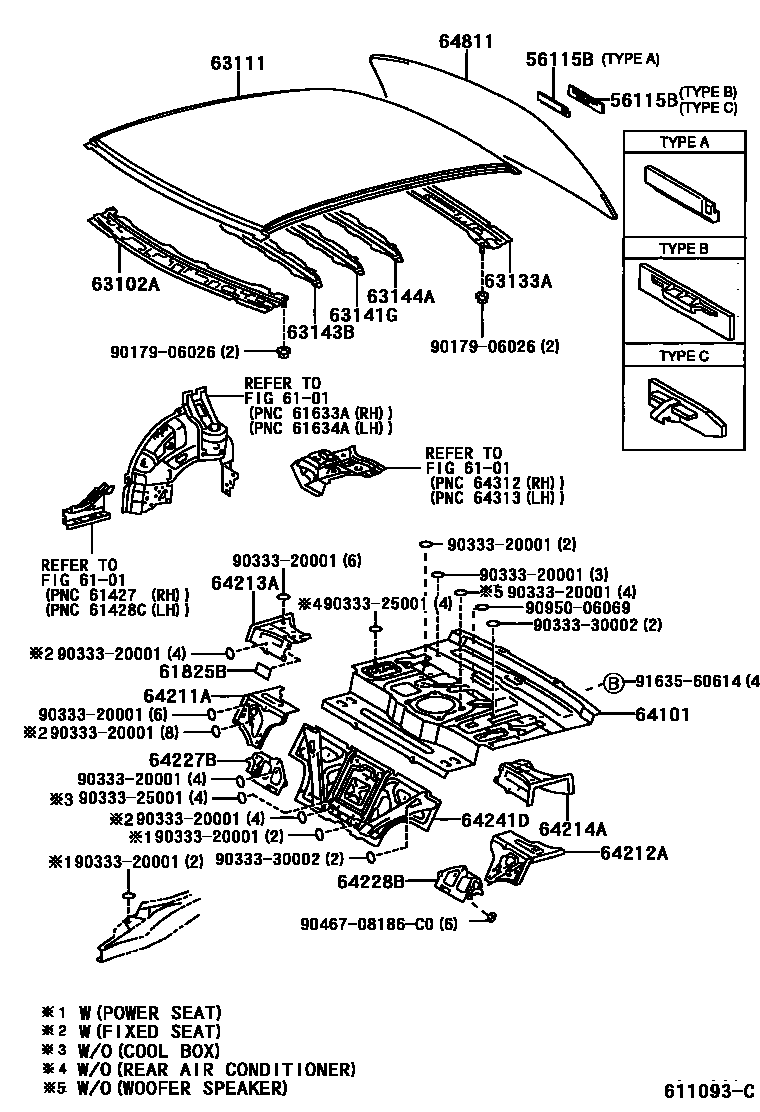

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
6101SIDE MEMBER
61825BPLATE, NOISE CONTROL, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63133AFRAME, BACK WINDOW, UPPER
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
64101PANEL SUB-ASSY, UPPER BACK
W(REAR AIR CONDITIONER)
W(REAR POWER SEAT)
W(REAR AIR CONDITIONER & REAR POWER SEAT)
64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH
W(REAR POWER SEAT)
64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH
W(REAR POWER SEAT)
64213AEXTENSION, PACKAGE TRAY STRAINER, RH
64214AEXTENSION, PACKAGE TRAY STRAINER, LH
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64241DPANEL, ROOM PARTITION
W(POWER SEAT & COOL BOX)
W(POWER SEAT)
64811GLASS, BACK WINDOW
*UVCEHT,T=3.5,GREEN
9017906026
main90179-06026
9033320001
main90333-20001
9033325001
main90333-25001
9033330002
main90333-30002
9046708186C0
main90467-08186C0
9095006069
main90950-06069
9163560614
main91635-60614
25 parts on this diagram · 3 diagrams in section
