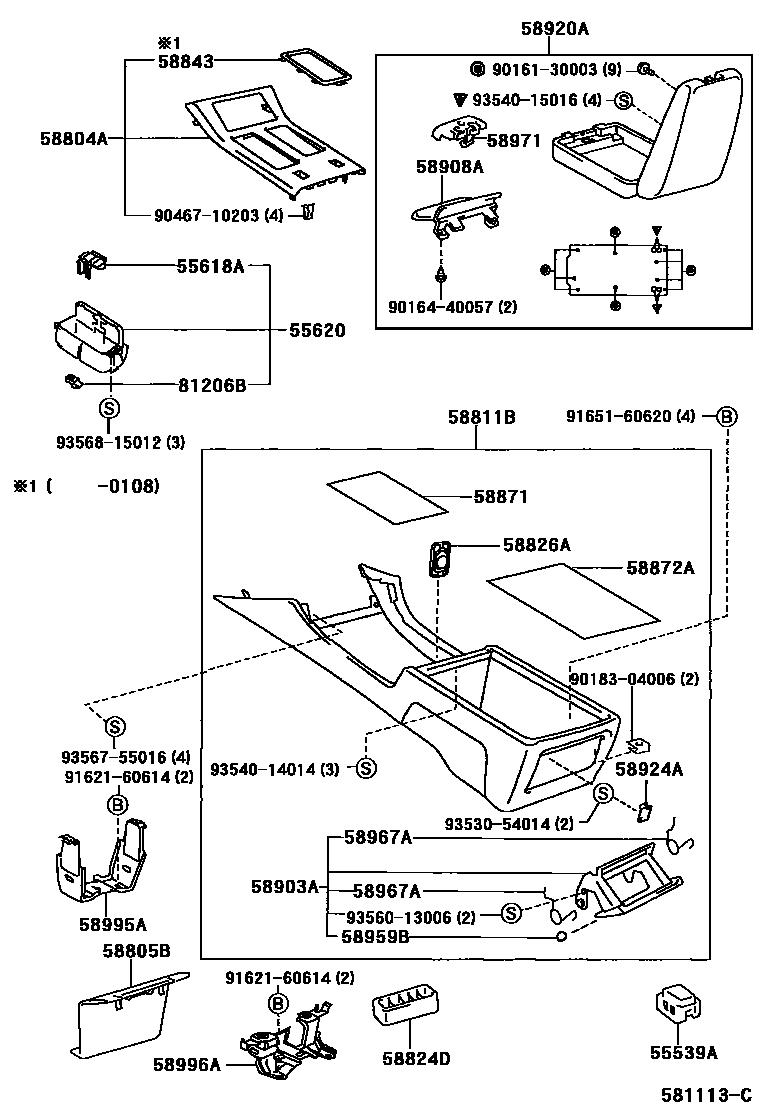

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
55618AHOLDER, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
58804APANEL SUB-ASSY, CONSOLE, UPPER
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
58805BPANEL SUB-ASSY, CONSOLE, LOWER
58811BBOX, CONSOLE
58824DBOX, CONSOLE COIN
58826APOCKET, CONSOLE BOX, LOWER
58843BEZEL, SHIFTING HOLE
58871CUSHION, CONSOLE BOX
58872ACUSHION, CONSOLE BOX, NO.2
58903APANEL SUB-ASSY, CONSOLE REAR END
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58920AARMREST ASSY, REAR CONSOLE
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
LEATHER,IVORY,TRIM0#
58924APANEL, CONSOLE REAR END, NO.2
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58967ASPRING, CONSOLE DOOR STOPPER
RH
LH
58971LOCK, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
81206BLAMP SUB-ASSY, CONSOLE BOX
9016130003
main90161-30003
9016440057
main90164-40057
9018304006
main90183-04006
9046710203
main90467-10203
9162160614
main91621-60614
9165160620
main91651-60620
9353054014
main93530-54014
9354014014
main93540-14014
9354015016
main93540-15016
9356013006
main93560-13006
9356755016
main93567-55016
9356815012
main93568-15012
33 parts on this diagram · 2 diagrams in section
