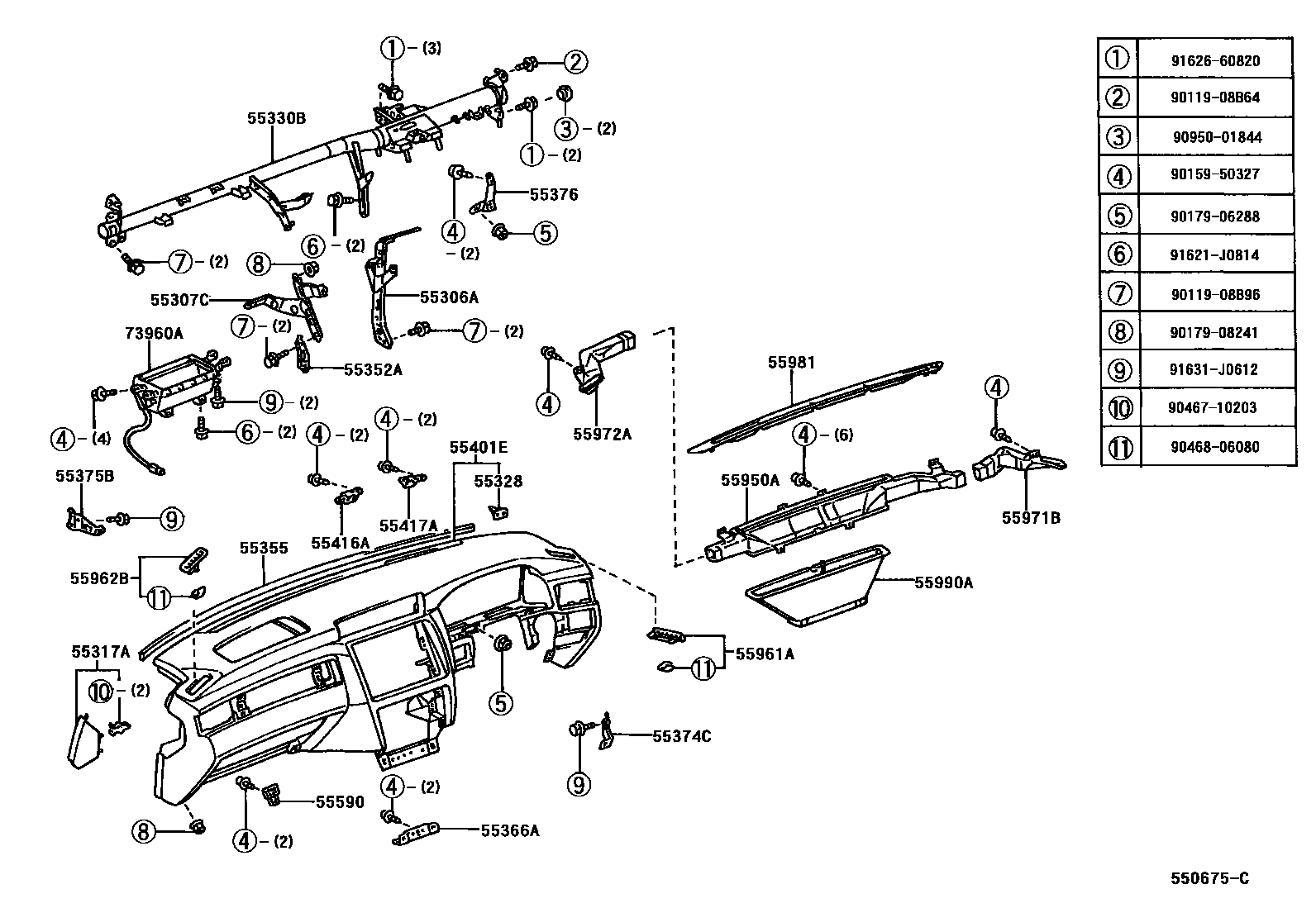

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55355CUSHION, INSTRUMENT PANEL, NO.1
55366ABRACKET, RADIO MOUNTING, NO.1
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55417ARETAINER, METER HOOD, NO.2
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55950ANOZZLE ASSY, DEFROSTER
55961ANOZZLE, SIDE DEFROSTER, RH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
55962BNOZZLE, SIDE DEFROSTER, LH
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
DK.CHARCOAL,TRIM1#
SANDAL WOOD,TRIM0#
55990ANOZZLE ASSY, DEFROSTER, LOWER
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9011908B64
main90119-08B64
9011908B96
main90119-08B96
9015950327
main90159-50327
9017906288
main90179-06288
9017908241
main90179-08241
9046710203
main90467-10203
9046806080
main90468-06080
9095001844
main90950-01844
91621J0814
main91621-J0814
9162660820
main91626-60820
91631J0612
main91631-J0612
34 parts on this diagram · 2 diagrams in section
