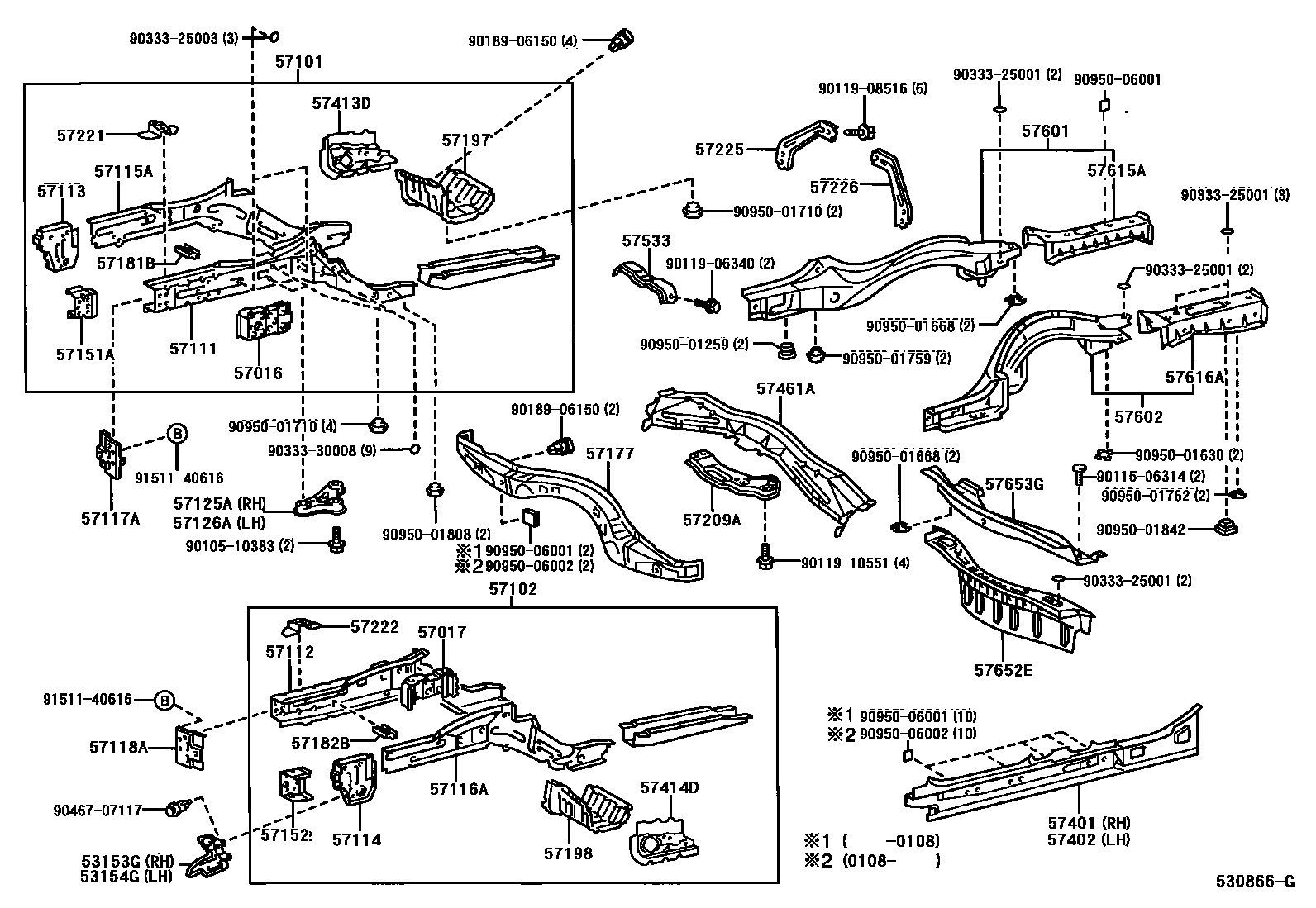

FLOOR SIDE MEMBER

53153GGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30110iJZS175199909-200103

53154GGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30100iJZS175199909-200108

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-51010iJZS175199909-200108

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-51010iJZS175199909-200108

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30120iJZS175199909-200103

main57101-30121iJZS175200103-200108

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30100iJZS175199909-200103

main57102-30101iJZS175200103-200108

57111MEMBER, FRONT SIDE, RH

main57111-51010iJZS175199909-200108

57112MEMBER, FRONT SIDE, LH

main57112-51010iJZS175199909-200108

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-30040iJZS175199909-200103

main57113-30041iJZS175200103-200108

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-30030iJZS175199909-200103

main57114-30031iJZS175200103-200108

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-51010iJZS175199909-200108

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-51010iJZS175199909-200108

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-30030iJZS175199909-200108

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-30030iJZS175199909-200108

57125APLATE, STRUT BAR BRACKET, RH

main57125-51010iJZS175199909-200108

57126APLATE, STRUT BAR BRACKET, LH

main57126-51010iJZS175199909-200108

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30020iJZS175199909-200007

main57151-30021iJZS175200007-200108

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30020iJZS175199909-200007

main57152-30021iJZS175200007-200108

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-51010iJZS175199909-200108

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-53010iJZS175199909-200108

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57181-53010iJZS175199909-200108

57197BOX, TORQUE, FRONT RH

main57197-51010iJZS175199909-200108

57198BOX, TORQUE, FRONT LH

main57198-51010iJZS175199909-200108

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-30110iJZS175199909-200108

57221BRACKET, FRONT SIDE MEMBER, RH

main57221-30040iJZS175199909-200108

57222BRACKET, FRONT SIDE MEMBER, LH

main57221-30040iJZS175199909-200108

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-30020iJZS175199909-200108

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-30020iJZS175199909-200001

main57226-30021iJZS175200001-200108

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30080iJZS175199909-200108

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30070iJZS175199909-200108

57413DEXTENSION, FLOOR SIDE, INNER RH

main57413-30030iJZS175199909-200108

57414DEXTENSION, FLOOR SIDE, INNER LH

main57414-30020iJZS175199909-200108

57461AMEMBER, CENTER FLOOR CROSS

main57461-30100iJZS175199909-200108

57533BRACE, FRONT FLOOR, CENTER

main57533-51010iJZS175199909-200108

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30904iJZS175199909-200108

main57601-30912iJZS175200108-200312

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30907iJZS175199909-200108

main57602-30922iJZS175200108-200312

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-30904iJZS175199909-200108

main57615-30906iJZS175200108-200312

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-30905iJZS175199909-200108

main57616-30907iJZS175200108-200312

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-51010iJZS175199909-200108

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-51010iJZS175199909-200108

9010510383

main90105-10383

9011506314

main90115-06314

9011906340

main90119-06340

9011908516

main90119-08516

9011910551

main90119-10551

9018906150

main90189-06150

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9046707117

main90467-07117

9095001259

main90950-01259

9095001630

main90950-01630

9095001668

main90950-01668

9095001710

main90950-01710

9095001759

main90950-01759

9095001762

main90950-01762

9095001808

main90950-01808

9095001842

main90950-01842

9095006001

main90950-06001

9095006002

main90950-06002

9151140616

main91511-40616

61 parts on this diagram · 1 diagram in section
