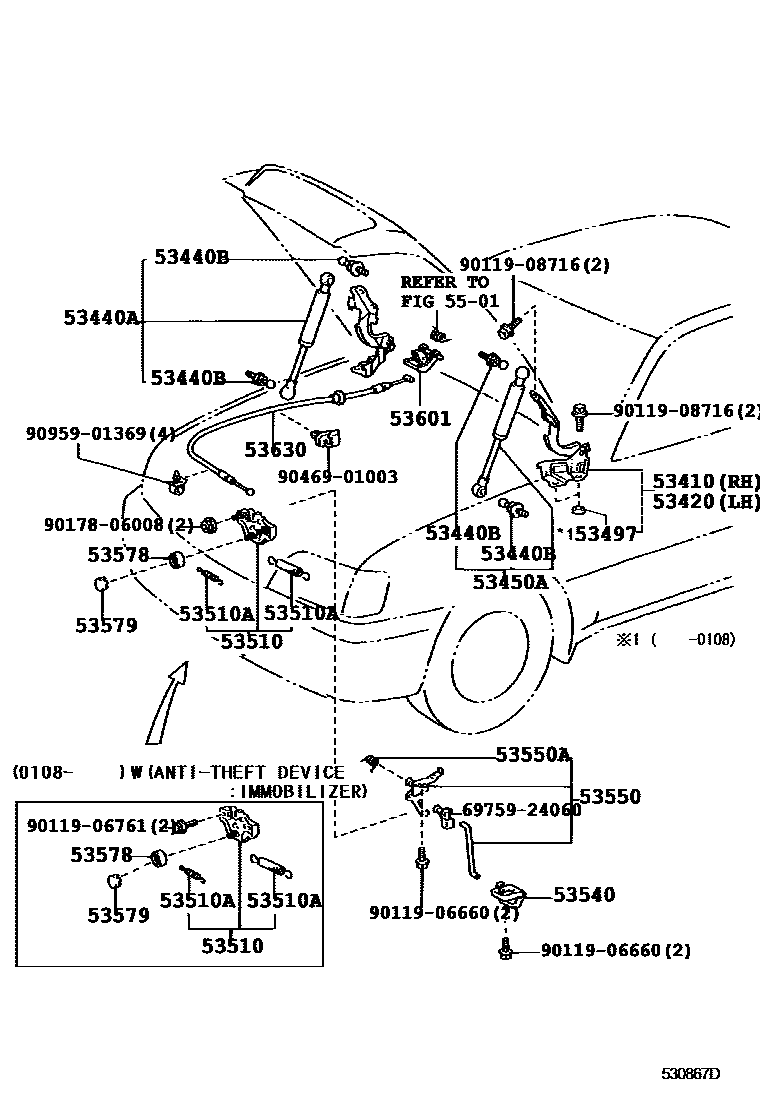

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-30160iJZS175200108-200312

53420HINGE ASSY, HOOD, LH

main53420-30160iJZS175199909-200108

53440ASUPPORT ASSY, HOOD, RH

main53440-39185iJZS175199909-200108

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iJZS175200108-200312

main68961-24030×4iJZS175199909-200108

53450ASUPPORT ASSY, HOOD, LH

main53450-39165iJZS175199909-200108

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iJZS175199909-200106

T=2.0

main53497-50020×4iJZS175200106-200108

T=1.0

main53497-50030×4iJZS175200106-200108

T=2.0

53510LOCK ASSY, HOOD

main53510-50090iJZS175200108-200312

W(ANTI-THEFT DEVICE:IMMOBILIZER)

main53510-51011iJZS175199909-200108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iJZS175200108-200312

WD=0.9,CW=20.5

main90506-16071iJZS175199909-200108

WD=1.8,CW=18

main90506-18068iJZS175200108-200312

WD=1.8,CW=18,W(ANTI-THEFT DEVICE:IMMOBILIZER)

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30020iJZS175199909-200108

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-30090iJZS175199909-200108

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iJZS175199909-200108

53578NUT, HOOD LOCK

main53578-50010iJZS175199909-200108

53579CAP, HOOD LOCK NUT

main53579-50010iJZS175200108-200312

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-A0iJZS175200108-200312

IVORY,TRIM0#

main53611-22010-B2iJZS175199909-200108

MD.CHARCOAL,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30260iJZS175199909-200108

main53630-30280iJZS175200108-200312

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6975924060SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24060

9011906660

main90119-06660

9011906761

main90119-06761

9011908716

main90119-08716

9017806008

main90178-06008

9046901003

main90469-01003

9095901369

main90959-01369

23 parts on this diagram · 1 diagram in section
