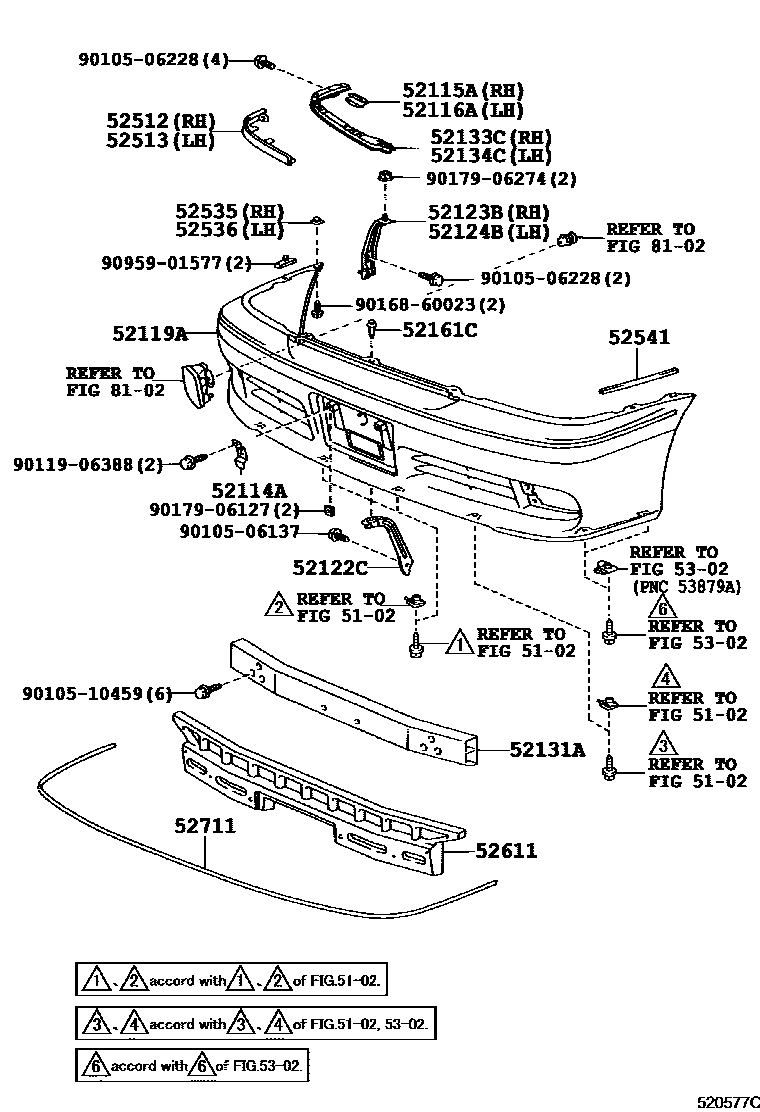

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52122CPLATE, FRONT BUMPER REINFORCEMENT, CENTER
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52131AREINFORCEMENT, FRONT BUMPER
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
52161CPIECE, FRONT BUMPER
52512FILLER, FRONT BUMPER, RH
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
DK.BLUE MC.,2FR ,8L4
GRAYISH BLUE ME.,8N6
DARK BLUE MC.,8P8
52513FILLER, FRONT BUMPER, LH
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
DK.BLUE MC.,2FR ,8L4
GRAYISH BLUE ME.,8N6
DARK BLUE MC.,8P8
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
5302HOOD & FRONT FENDER
8102FOG LAMP
9010506137
main90105-06137
9010506228
main90105-06228
9010510459
main90105-10459
9011906388
main90119-06388
9016860023
main90168-60023
9017906127
main90179-06127
9017906274
main90179-06274
9095901577
main90959-01577
29 parts on this diagram · 1 diagram in section
