SPARE WHEEL CARRIER

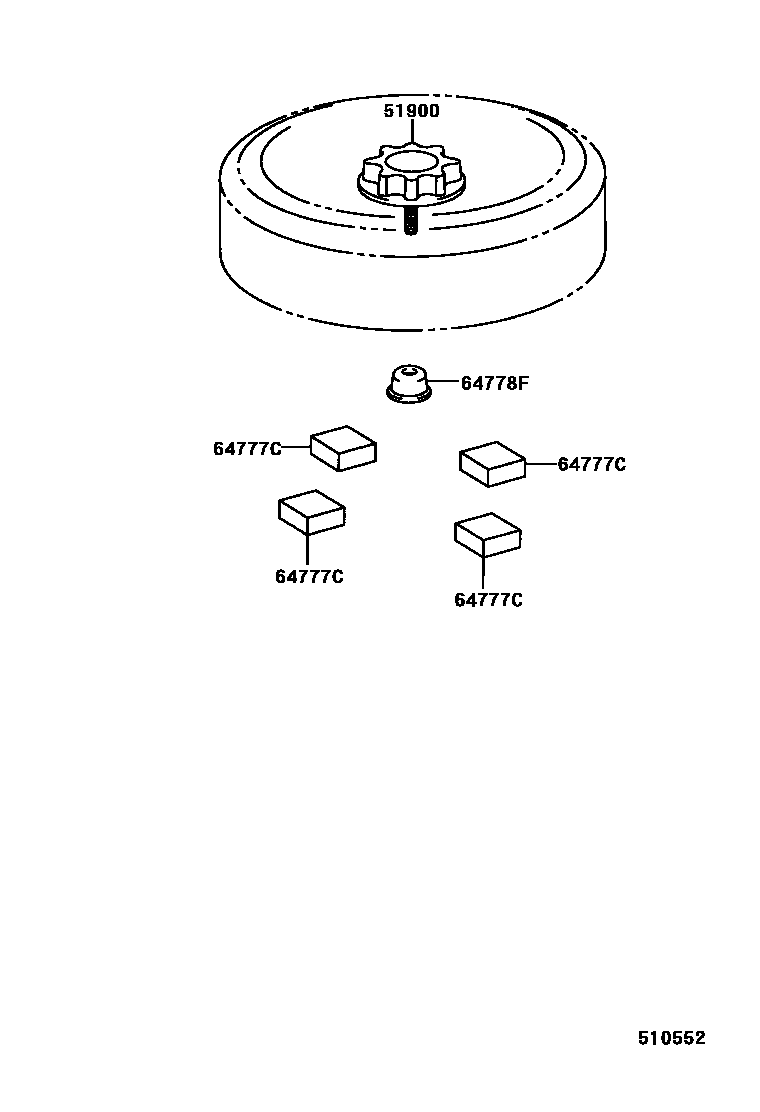

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51931-50010i199909-200108

64777CCUSHION, SPARE WHEEL

main64777-30050×4i199909-200108

64778FPROTECTOR, SPARE WHEEL

main64778-30020i199909-200108

3 parts on this diagram · 1 diagram in section
