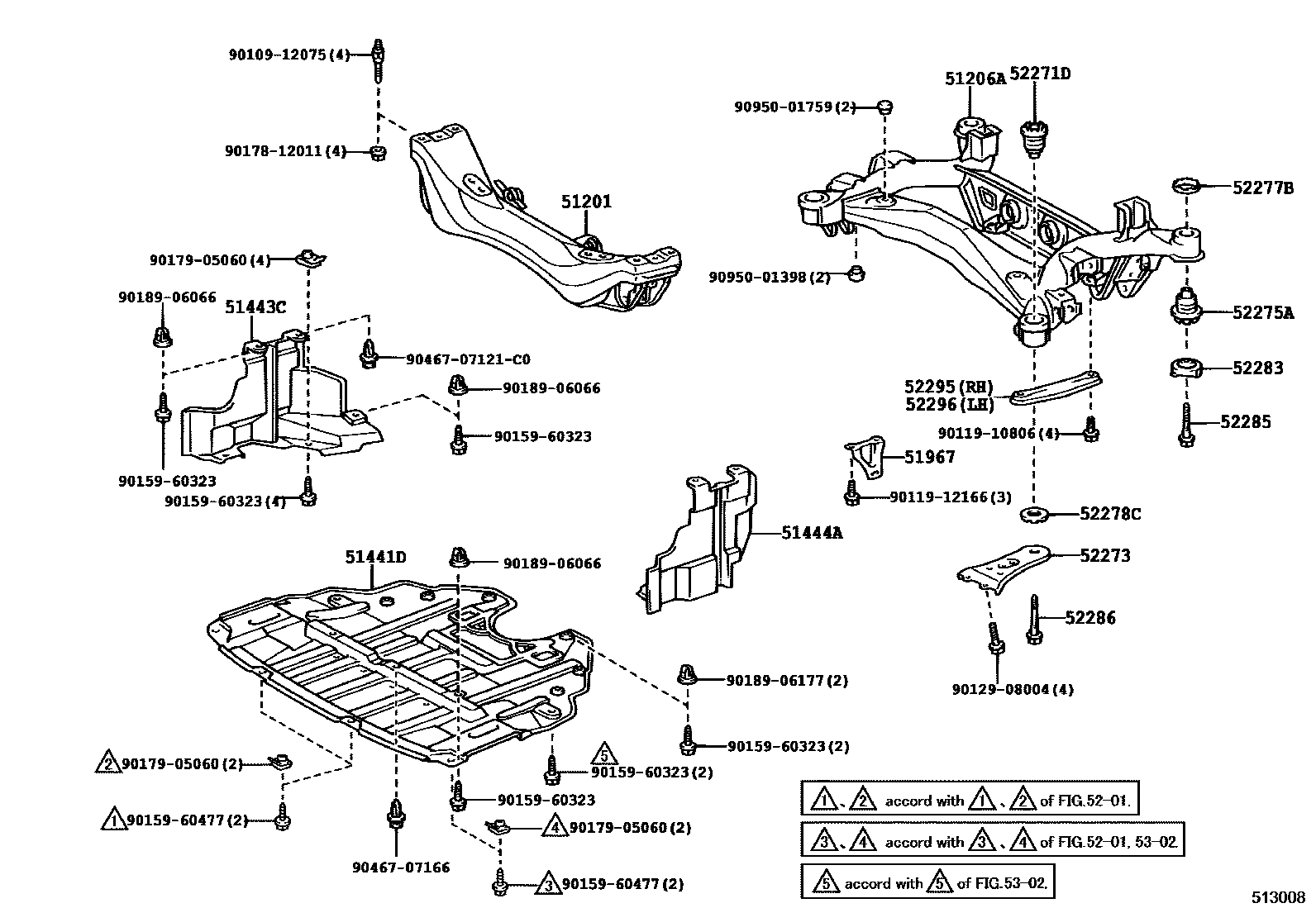

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-51011iJZS175199909-200108

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-51020iJZS175199909-200006

main51206-51021iJZS175200006-200007

main51206-51030iJZS175200007-200108

51441DCOVER, ENGINE UNDER

main51441-30290iJZS175199909-200108

51443CCOVER, ENGINE UNDER, REAR RH

main51443-51010iJZS175199909-200108

51444ACOVER, ENGINE UNDER, REAR LH

main51444-51010iJZS175199909-200108

51967HOOK, TRANSPORT, REAR

main51967-30040iJZS175199909-200108

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-51010×2iJZS175199909-200108

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-51010×2iJZS175199909-200108

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30080×2iJZS175199909-200108

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30020×2iJZS175199909-200108

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-51010×2iJZS175199909-200108

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050×2iJZS175199909-200108

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iJZS175199909-200108

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010×2iJZS175199909-200108

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iJZS175199909-200108

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50010iJZS175199909-200108

9010912075

main90109-12075

9011910806

main90119-10806

9011912166

main90119-12166

9012908004

main90129-08004

9015960323

main90159-60323

9015960477

main90159-60477

9017812011

main90178-12011

9017905060

main90179-05060

9018906066

main90189-06066

9018906177

main90189-06177

9046707121C0

main90467-07121C0

9046707166

main90467-07166

9095001398

main90950-01398

9095001759

main90950-01759

30 parts on this diagram · 1 diagram in section
