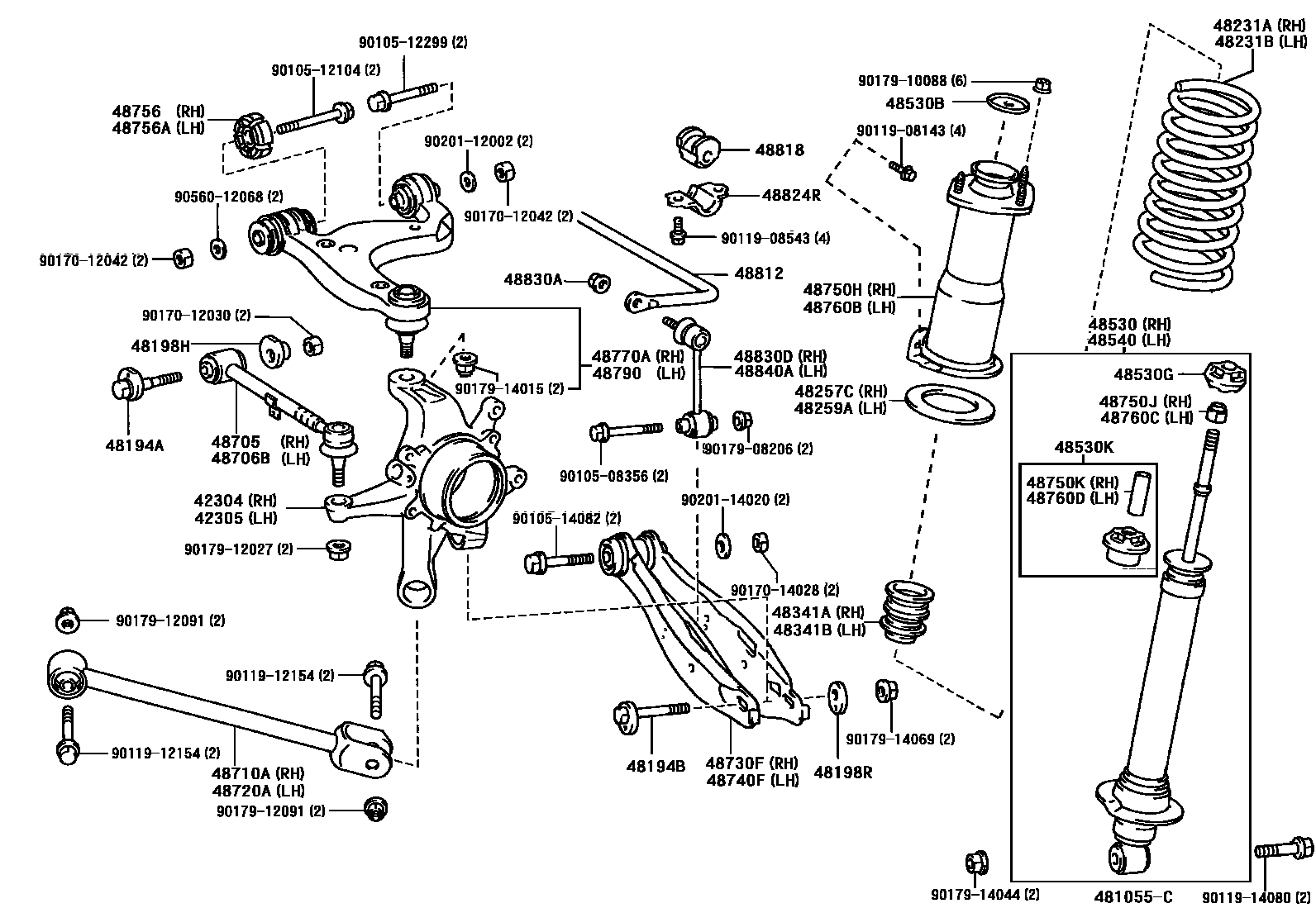

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-51010iJZS175200108-200312

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-51010iJZS175199909-200108

48194ACAM, REAR SUSPENSION CAMBER ADJUST, NO.1

main48190-30040×2iJZS175199909-200108

48194BCAM, REAR SUSPENSION CAMBER ADJUST, NO.3

main48190-30060×2iJZS175199909-200108

48198HCAM, CAMBER ADJUST, NO.2

main48198-30080×2iJZS175199909-200108

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-30060×2iJZS175199909-200108

48231ASPRING, COIL, REAR RH

main48231-3A190iJZS175199909-200108

48231BSPRING, COIL, REAR LH

main48231-3A190iJZS175199909-200108

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30060iJZS175199909-200108

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30060iJZS175199909-200108

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30100iJZS175199909-200108

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30100iJZS175199909-200108

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-39635iJZS175199909-200108

MARK 48530-30300

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iJZS175199909-200108

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01073×2iJZS175199909-200108

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01074×2iJZS175199909-200108

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-39635iJZS175199909-200108

MARK 48530-30300

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30080iJZS175199909-200108

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48705-30080iJZS175199909-200108

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30210iJZS175199909-200108

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30210iJZS175200108-200312

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30100iJZS175199909-200108

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30090iJZS175199909-200108

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-51010iJZS175199909-200108

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iJZS175200003-200108

main90179-12127iJZS175200301-200312

main94187-11200iJZS175199909-200003

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12050iJZS175199909-200108

48756PIECE, REAR SUSPENSION ARM, RH

main48756-30010iJZS175199909-200108

48756APIECE, REAR SUSPENSION ARM, LH

main48756-30010iJZS175199909-200108

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-51010iJZS175199909-200108

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iJZS175200108-200212

main90179-12127iJZS175200301-200312

main94187-11200iJZS175199909-200003

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12050iJZS175199909-200108

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-39035iJZS175200108-200312

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-39035iJZS175199909-200108

48812BAR, STABILIZER, REAR

main48812-30340iJZS175199909-200108

48818BUSH, STABILIZER, REAR

main48818-30110×2iJZS175199909-200108

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30050×2iJZS175199909-200108

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×2iJZS175199909-200108

48830DLINK ASSY, REAR STABILIZER, RH

main48830-51010iJZS175199909-200108

48840ALINK ASSY, REAR STABILIZER, LH

main48830-51010iJZS175199909-200108

9010508356

main90105-08356

9010512104

main90105-12104

9010512299

main90105-12299

9010514082

main90105-14082

9011908143

main90119-08143

9011908543

main90119-08543

9011912154

main90119-12154

9011914080

main90119-14080

9017012030

main90170-12030

9017012042

main90170-12042

9017014028

main90170-14028

9017908206

main90179-08206

9017910088

main90179-10088

9017912027

main90179-12027

9017912091

main90179-12091

9017914015

main90179-14015

9017914044

main90179-14044

9017914069

main90179-14069

9020112002

main90201-12002

9020114020

main90201-14020

9056012068

main90560-12068

60 parts on this diagram · 1 diagram in section
