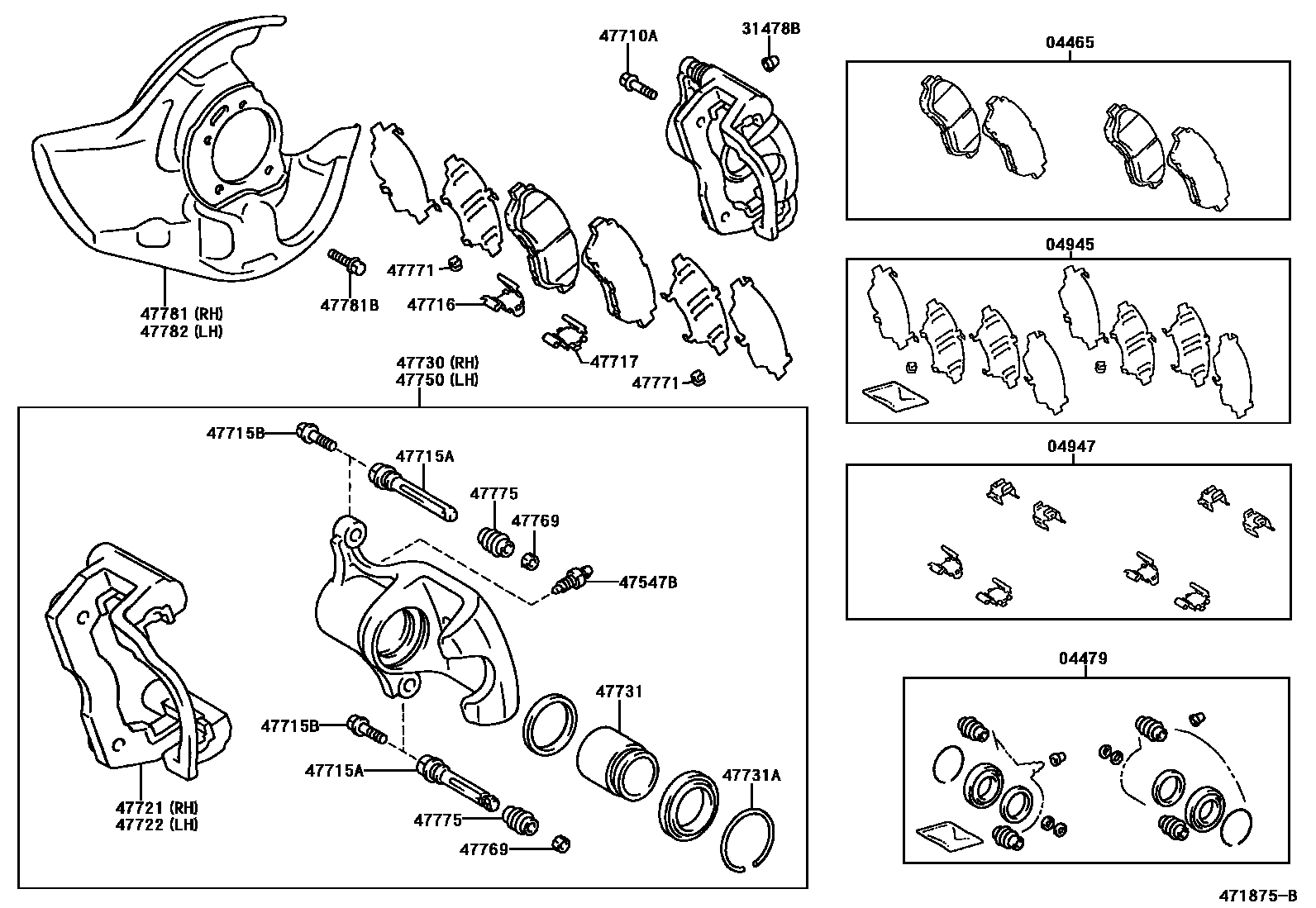

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30280iJZS175200108-200201

MARK NBK PN529H

main04465-30300iJZS175200201-200312

MARK NBK PN529H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30250iJZS175200201-200312

main04479-30150iJZS175199909-200101

main04479-30151iJZS175200108-200201

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30160iJZS175199909-200108

main04945-30170iJZS175200201-200312

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30130iJZS175199909-200108

main04947-30131iJZS175200108-200312

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iJZS175199909-200108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iJZS175199909-200108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228×4iJZS175199909-200108

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070×4iJZS175199909-200108

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iJZS175199909-200108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30140×2iJZS175199909-200108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-30130×2iJZS175199909-200108

main47717-51010×2iJZS175200108-200312

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30210iJZS175199909-200108

main47721-30211iJZS175200209-200312

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30110iJZS175200108-200209

main47722-30111iJZS175200209-200312

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30440iJZS175199909-200108

47731PISTON, FRONT DISC BRAKE

main47731-33070×2iJZS175199909-200108

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iJZS175199909-200108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30440iJZS175199909-200108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iJZS175200108-200312

T=4.8

main47769-50020iJZS175199909-200108

T=4.1

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090×4iJZS175199909-200108

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iJZS175199909-200108

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22161iJZS175199909-200009

main47781-22162iJZS175200009-200108

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028×8iJZS175199909-200108

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22161iJZS175199909-200009

main47782-22162iJZS175200009-200108

23 parts on this diagram · 1 diagram in section
