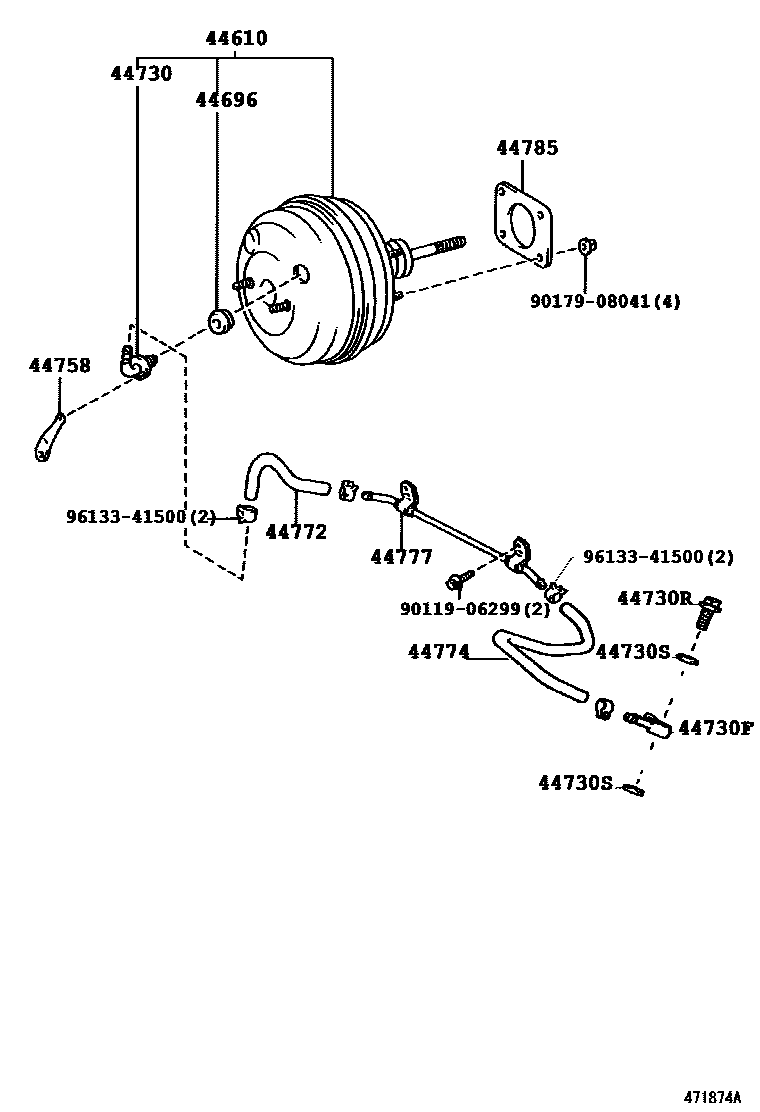

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-3A220iJZS175199909-200108

main44610-3A270iJZS175200108-200312

44696GROMMET, CHECK VALVE

main90480-24015iJZS175199909-200108

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-40040iJZS175199909-200108

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09160iJZS175199909-200108

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iJZS175199909-200108

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iJZS175199909-200108

44758BRACKET, VACUUM CHECK VALVE

main44758-40020iJZS175199909-200108

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-30200iJZS175199909-200108

44774HOSE, UNION TO CONNECTOR TUBE

main44774-30120iJZS175199909-200108

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-30020iJZS175199909-200108

44785GASKET, BRAKE BOOSTER

main44785-30030iJZS175199909-200108

9011906299

main90119-06299

9017908041

main90179-08041

9613341500

main96133-41500

14 parts on this diagram · 1 diagram in section
