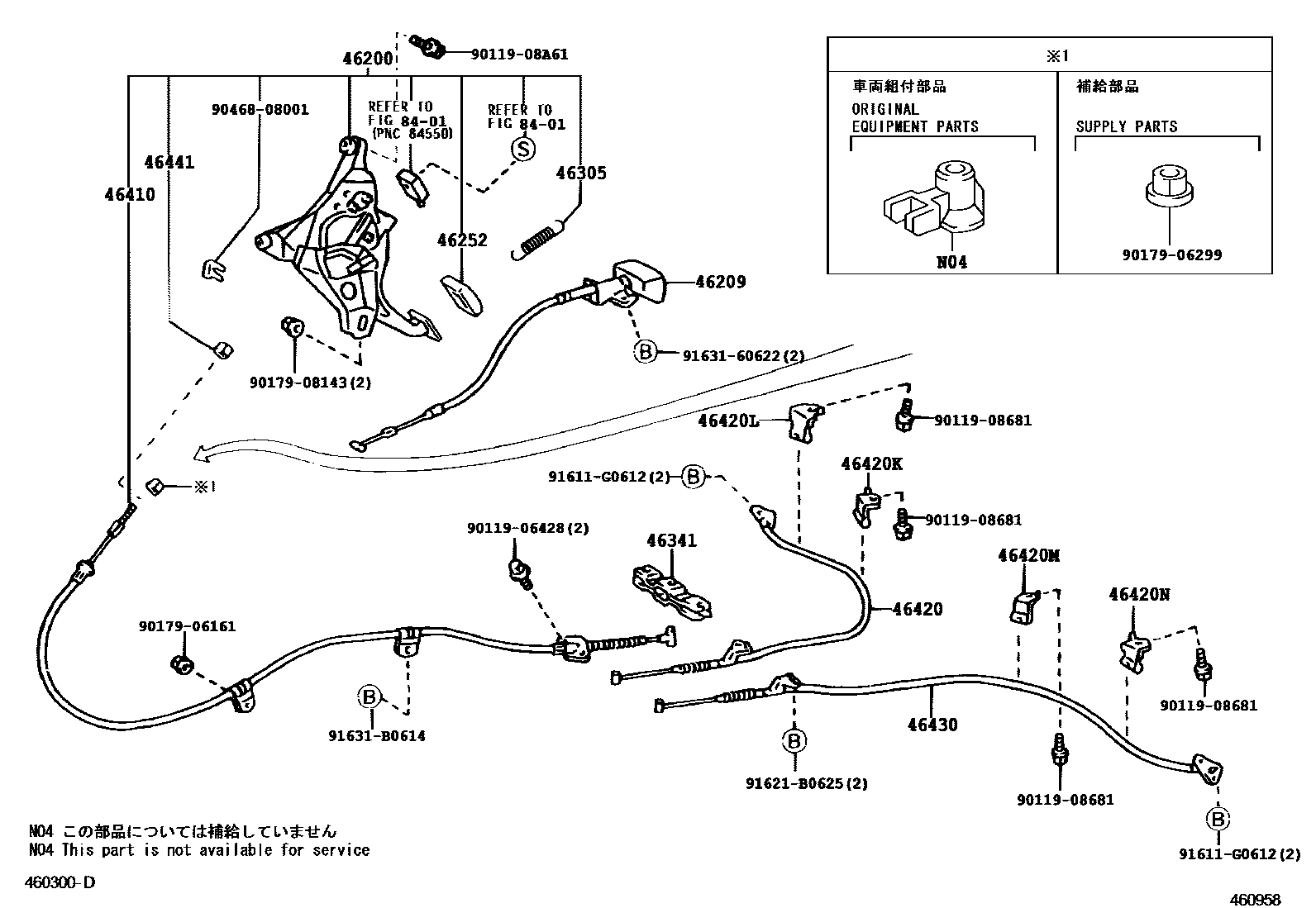

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30370iJZS175200108-200312

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30190-A0iJZS175200108-200312

IVORY,TRIM0#

main46209-30190-B1iJZS175200108-200312

MD.CHARCOAL,TRIM1#

46252PAD, PARKING PEDAL

main46252-20010iJZS175199909-200108

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-30020iJZS175199909-200108

46341EQUALIZER, PARKING BRAKE

main46341-24010iJZS175199909-200108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30730iJZS175199909-200108

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-51011iJZS175199909-200108

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iJZS175199909-200108

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iJZS175199909-200108

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iJZS175199909-200108

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iJZS175199909-200108

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-51011iJZS175199909-200108

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iJZS175199909-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906428

main90119-06428

9011908681

main90119-08681

9011908A61

main90119-08A61

9017906161

main90179-06161

9017906299

main90179-06299

9017908143

main90179-08143

9046808001

main90468-08001

91611G0612

main91611-G0612

91621B0625

main91621-B0625

9163160622

main91631-60622

91631B0614

main91631-B0614

25 parts on this diagram · 2 diagrams in section
