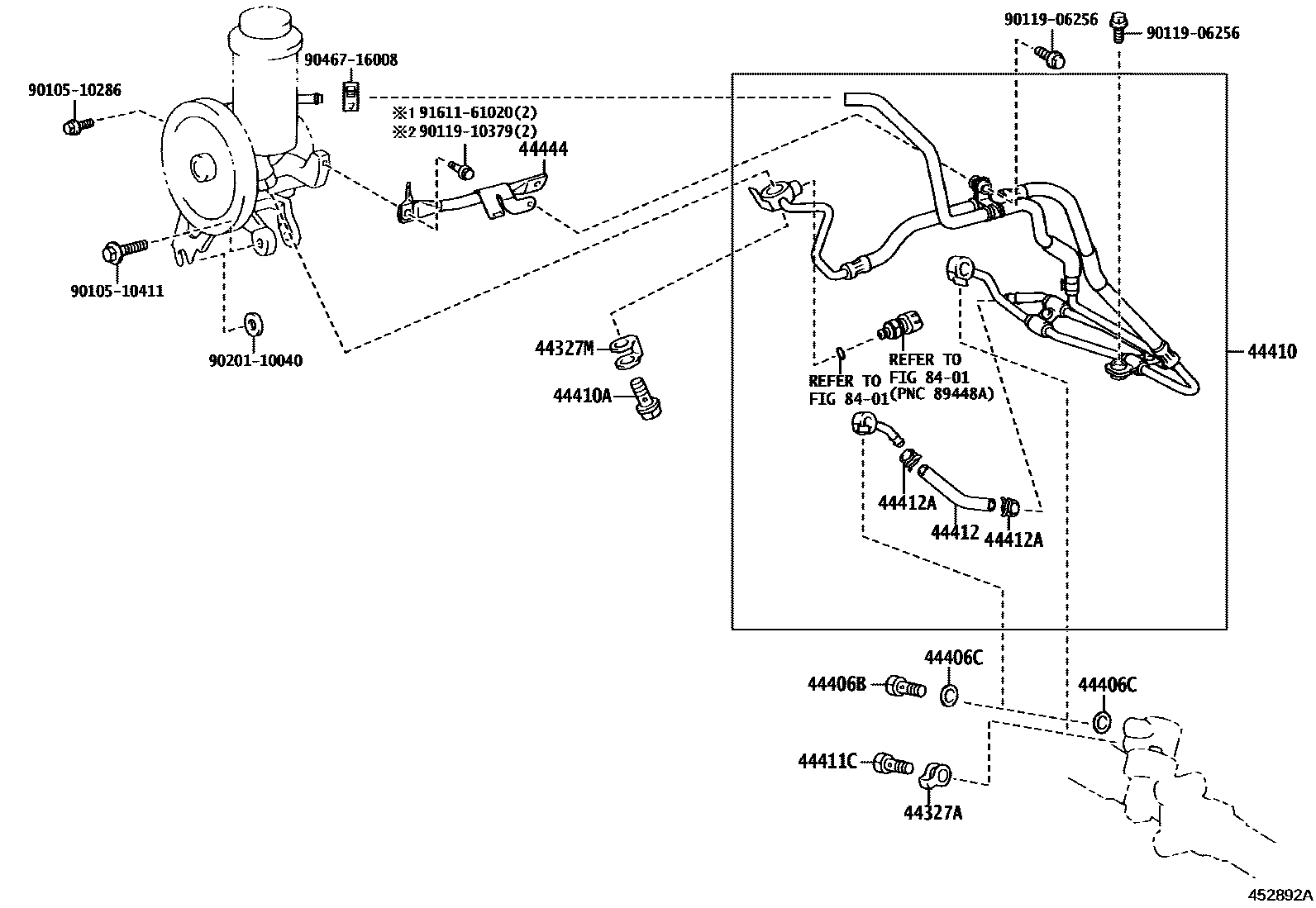

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iJZS175199909-200108

44327MGASKET, PRESSURE PORT, NO.2

main44327-30040iJZS175199909-200108

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17005iJZS175200208-200312

main96341-11703iJZS175199909-200108

44406CGASKET(FOR RETURN TUBE)

main90430-17007×2iJZS175199909-200108

44410TUBE ASSY, PRESSURE FEED

main44410-30500iJZS175200108-200312

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iJZS175199909-200108

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iJZS175199909-200108

44412HOSE, RETURN

main44412-30150iJZS175199909-200108

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90467-16007×2iJZS175199909-200108

44444STAY, PUMP, REAR

main44444-51010iJZS175199909-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510286

main90105-10286

9010510411

main90105-10411

9011906256

main90119-06256

9011910379

main90119-10379

9020110040

main90201-10040

9046716008

main90467-16008

9161161020

main91611-61020

18 parts on this diagram · 1 diagram in section
