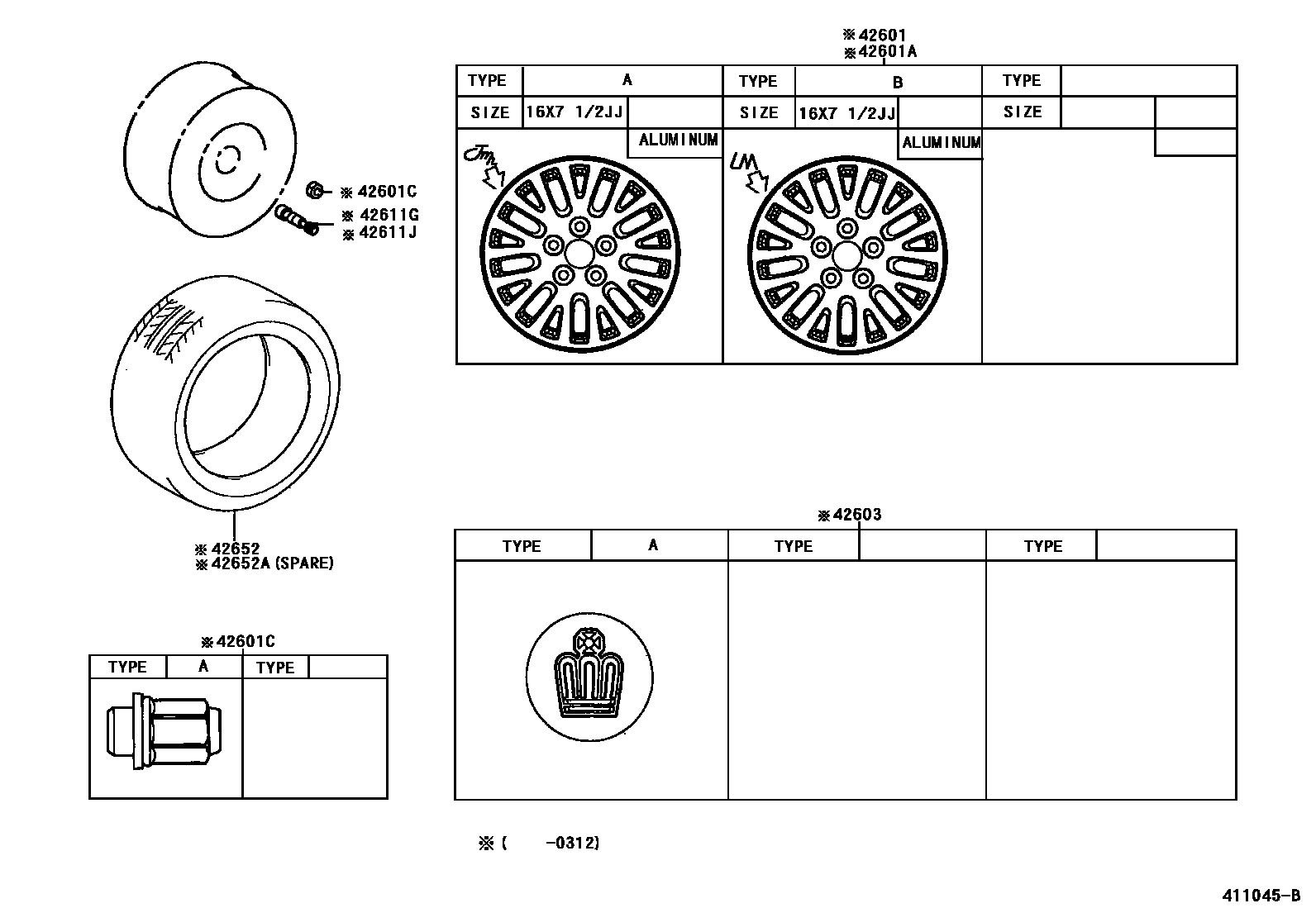

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-3A160×4iJZS175200108-200312

15X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION

main42611-3A170×4iJZS175199909-200108

15X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-3A160iJZS175200108-200312

15X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION

main42611-3A170iJZS175199909-200108

15X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01058×20iJZS175199909-200108

TYPE A:REFER TO ILLUSTRATION

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30450×4iJZS175199909-200108

*ALU,TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iJZS175199909-200108

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZS175199909-200108

42652TIRE

main42652-30680×4iJZS175199909-200108

205/65R15 94H

42652ATIRE (FOR SPARE)

main42652-30680iJZS175199909-200108

205/65R15 94H

8 parts on this diagram · 2 diagrams in section
