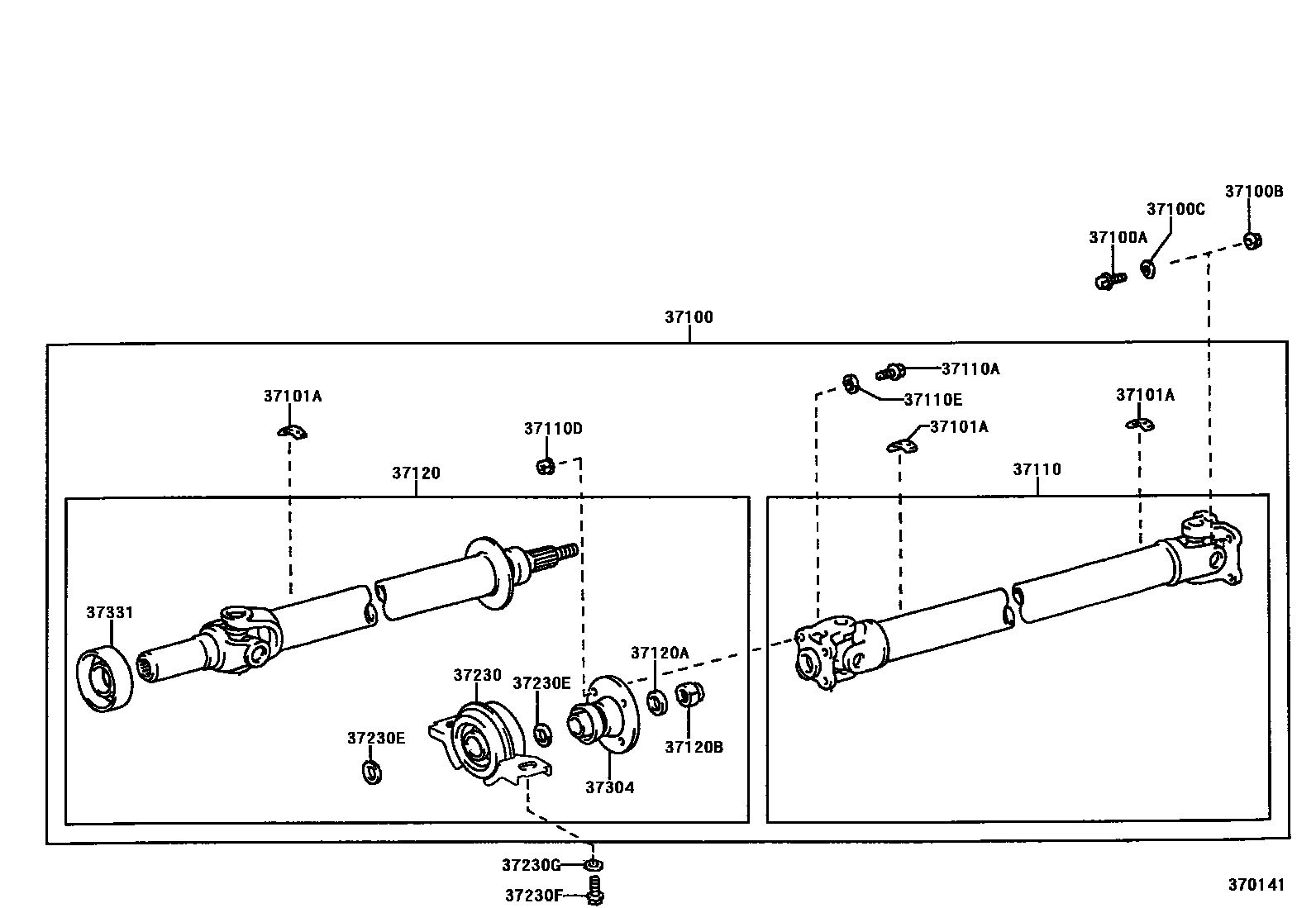

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
3G,T=1.0,L=19.1
5G,T=1.0,L=31.8
7G,T=2.0
2G,T=1.0,L=12.7
4G,T=1.0,L=25.4
6G,T=2.0
8G,T=2.0
10G,T=2.0
12G,T=2.0
14G,T=2.0
16G,T=2.0
18G,T=2.0
20G,T=2.0,L=42.4
1G,T=1.0,L=6.4
22G,T=2.0,L=46.6
24G,T=2.0,L=50.8
1.5G,T=1.0,L=9.5
2.5G,T=1.0,L=15.9
3.5G,T=1.0,L=22.3
4.5G,T=1.0,L=28.6
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX29-15
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
OD=33.5,T=4.0
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
L=33
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=9.0
T=6.5
T=11.0
T=13.5
T=2.0
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37331COVER, SLIDING SHAFT DUST
18 parts on this diagram · 2 diagrams in section
