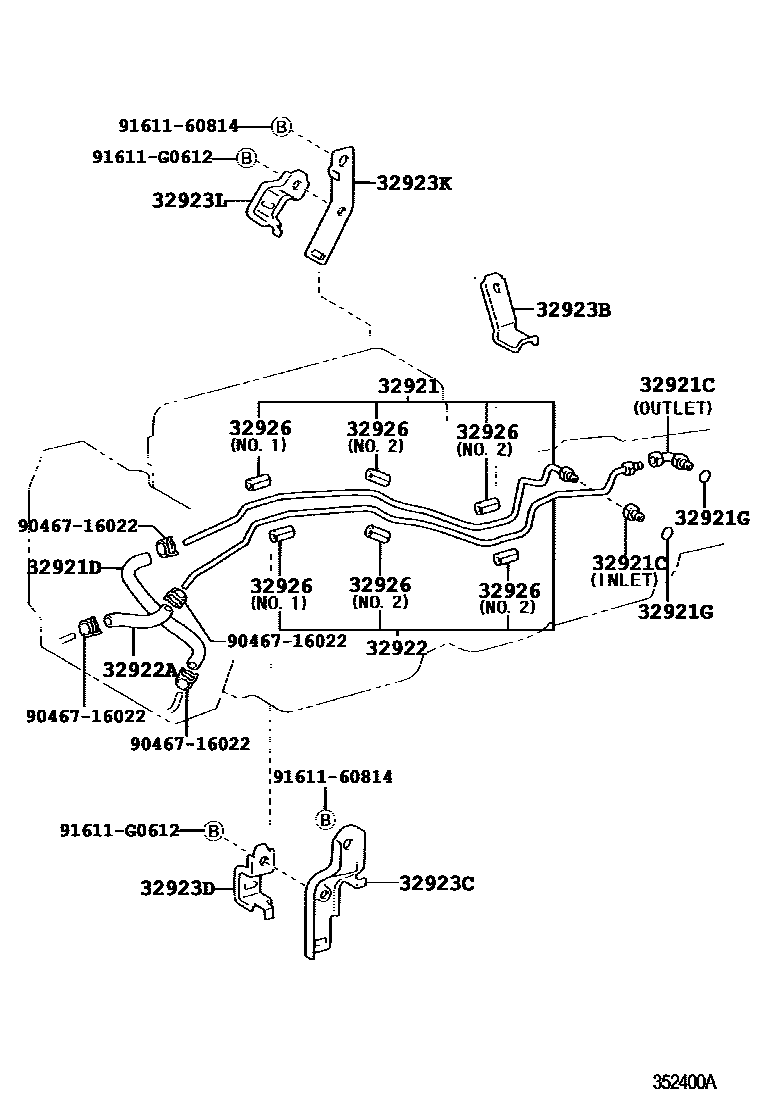

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-30750iJZS175200108-200312

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iJZS175199909-200108

INLET

main90407-16009iJZS175199909-200108

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17095iJZS175200108-200312

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iJZS175199909-200108

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30750iJZS175199909-200108

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17155iJZS175199909-200108

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-51010iJZS175199909-200108

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32924-51010iJZS175199909-200108

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main32929-50020iJZS175199909-200108

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32923-30190iJZS175199909-200108

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-50020iJZS175199909-200108

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iJZS175199909-200108

L=35,ID=10,NO.1

main32926-30030×4iJZS175199909-200108

L=35,ID=10,NO.2

9046716022

main90467-16022

9161160814

main91611-60814

91611G0612

main91611-G0612

15 parts on this diagram · 1 diagram in section
