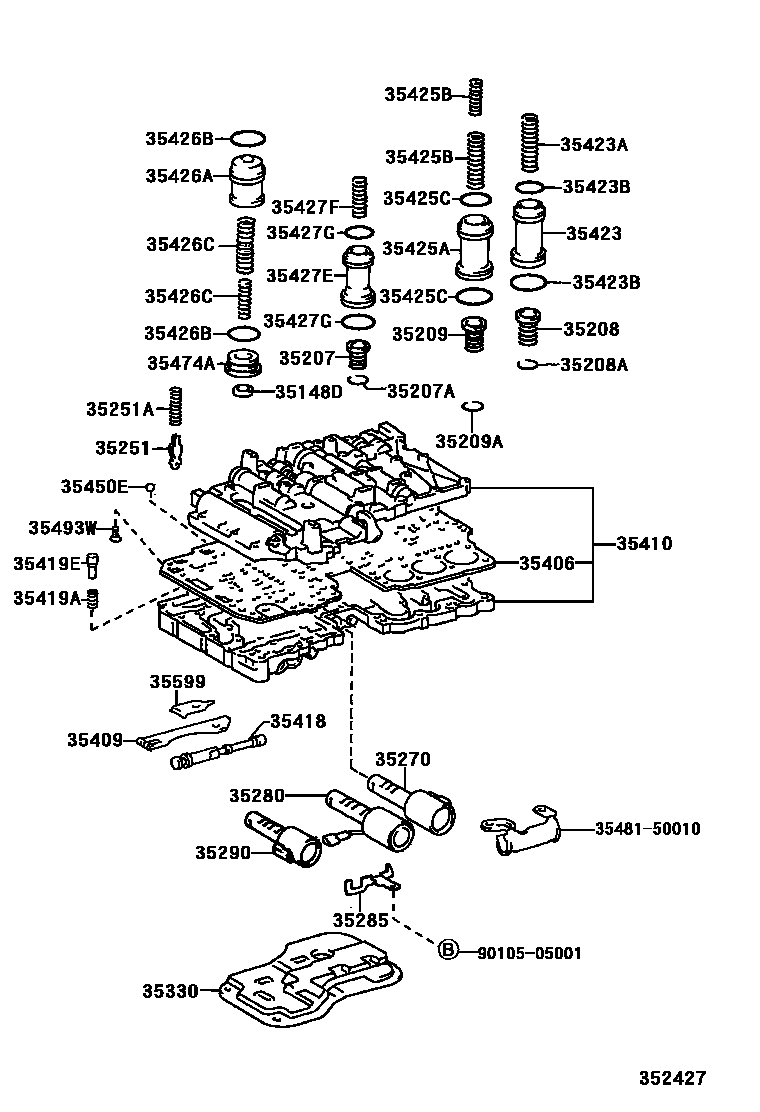

VALVE BODY & OIL STRAINER (ATM)
35148DGASKET (FOR C-O ACCUMULATOR PISTON)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270SOLENOID ASSY, SHIFT CONTROL
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35406PLATE SUB-ASSY, VALVE BODY
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35419EVALVE, CHECK, NO.3
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
LOWER
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
INNER
OUTER
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPPER
LOWER
35450EBALL (FOR UPPER VALVE BODY)
OD=5.535,RUBBER
OD=6.35,RUBBER
35474ACOVER, ACCUMULATOR
35493WSEAT, VALVE BODY
35599COVER, MANUAL DETENT SPRING
3548150010BODY, GOVERNOR
main35481-50010
9010505001
main90105-05001
38 parts on this diagram · 6 diagrams in section
