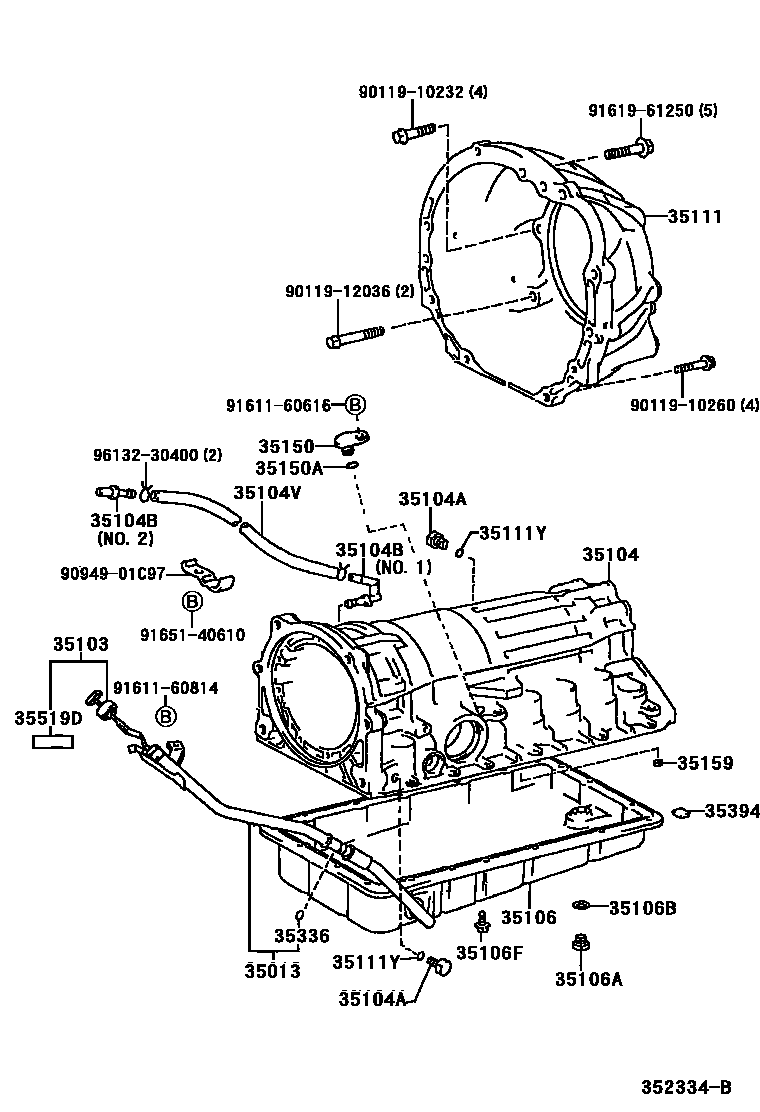

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30550iJZS175200108-200312

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30670iJZS175199909-200108

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22070iJZS175200108-200312

main35104-30170iJZS175199909-200008

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iJZS175199909-200108

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iJZS175199909-200108

NO.1

main90930-03099iJZS175199909-200012

NO.2

main90930-03168iJZS175200012-200108

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iJZS175199909-200108

main90445-11154iJZS175200203-200312

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30130iJZS175199909-200108

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iJZS175200108-200312

main90341-10018iJZS175199909-200108

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJZS175200304-200312

main35178-50010iJZS175199909-200108

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iJZS175200108-200312

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-30150iJZS175199909-200108

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iJZS175199909-200108

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iJZS175199909-200008

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iJZS175199909-200008

35159GASKET, BRAKE DRUM

main35159-30010iJZS175199909-200108

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iJZS175199909-200108

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iJZS175199909-200108

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iJZS175199909-200108

9011910232

main90119-10232

9011910260

main90119-10260

9011912036

main90119-12036

9094901C97

main90949-01C97

9161160616

main91611-60616

9161160814

main91611-60814

9161961250

main91619-61250

9165140610

main91651-40610

9613230400

main96132-30400

27 parts on this diagram · 1 diagram in section
