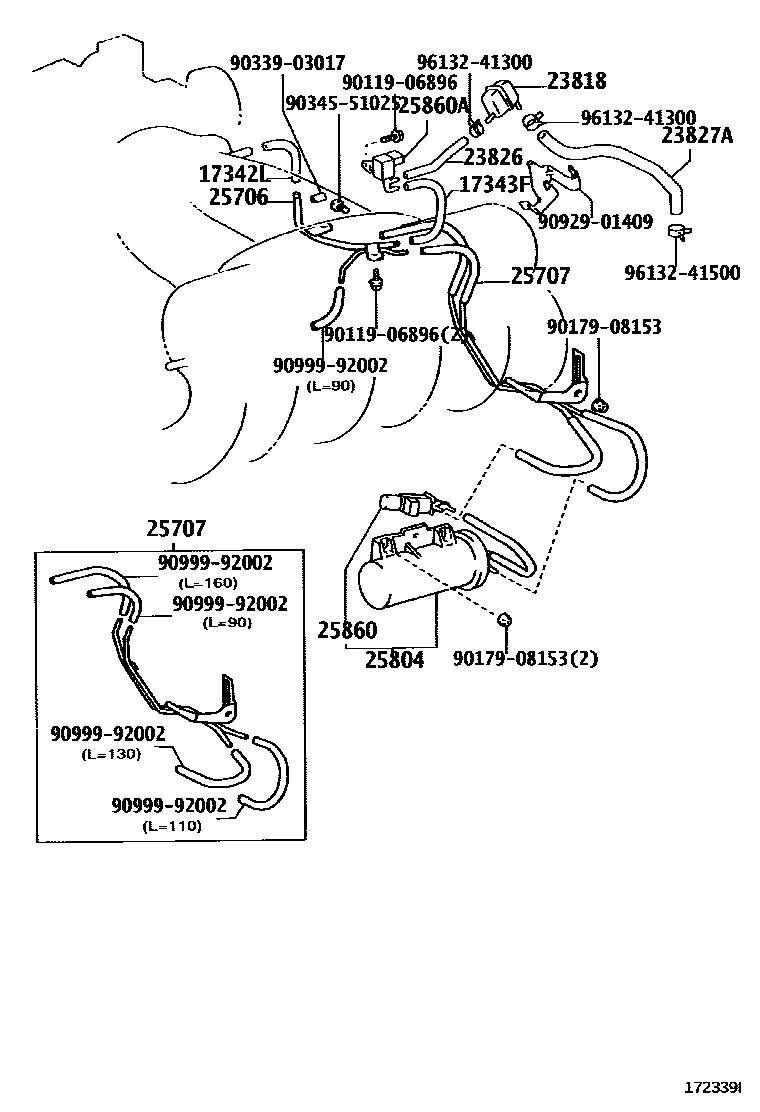

VACUUM PIPING
17342LHOSE, AIR, NO.2
17343FHOSE, AIR, NO.3
23818PIPE, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25804VALVE SET, VACUUM CONTROL
25860VALVE ASSY, VACUUM SWITCHING, NO.1
AISIN,*369
TAIHEIYO,*369
25860AVALVE, VACUUM SWITCHING, NO.1
9011906896
main90119-06896
9017908153
main90179-08153
9033903017
main90339-03017
9034551025
main90345-51025
9092901409
main90929-01409
9099992002
main90999-92002
9613241300
main96132-41300
9613241500
main96132-41500
18 parts on this diagram · 1 diagram in section
