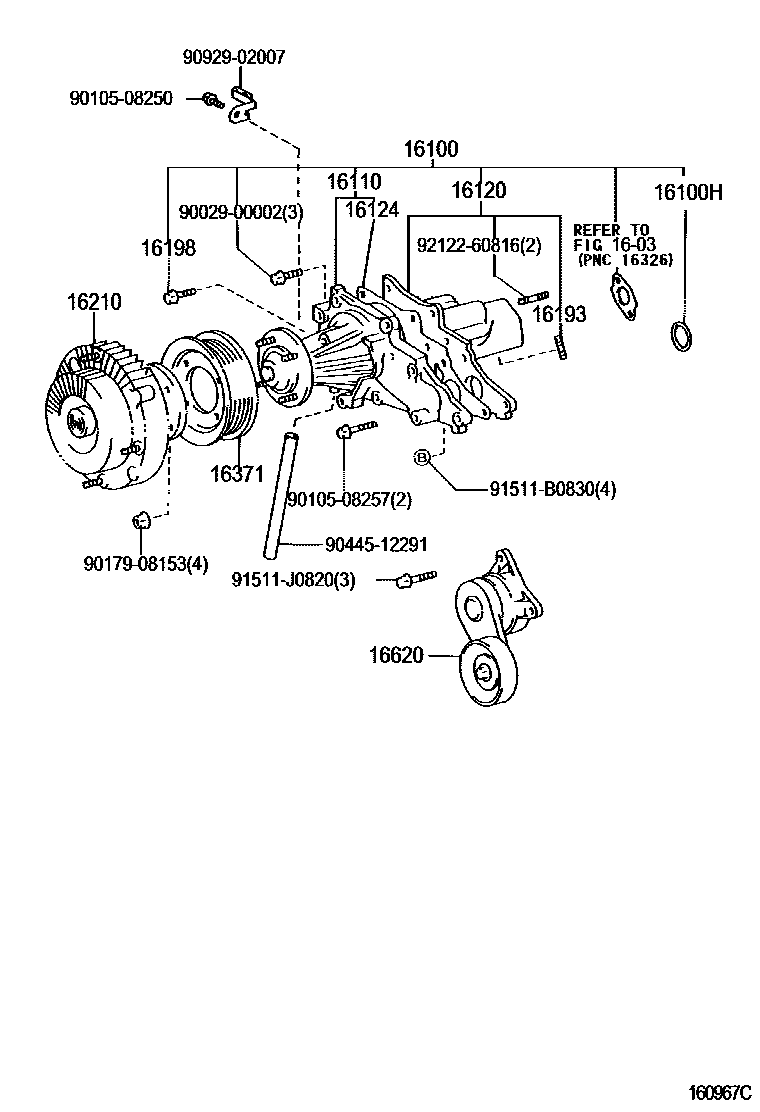

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-49866i2JZGE..JZS175199909-200006

main16100-49867i2JZGE..JZS175200006-200108

main16100-49868i2JZGE..JZS175200108-200312

16100HRING, O(FOR WATER PUMP)

main96761-24040i2JZGE..JZS175199909-200108

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49146i2JZGE..JZS175199909-200006

main16110-49147i2JZGE..JZS175200006-200108

main16110-49148i2JZGE..JZS175200108-200312

16120COVER ASSY, WATER PUMP

main16102-46072i2JZGE..JZS175200006-200108

main16102-46073i2JZGE..JZS175200108-200312

main16120-46080i2JZGE..JZS175199909-200006

16124GASKET, WATER PUMP COVER

main16124-46070i2JZGE..JZS175199909-200108

main16124-46071i2JZGE..JZS175200108-200312

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030×2i2JZGE..JZS175199909-200108

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-46031i2JZGE..JZS175199909-200108

16210COUPLING ASSY, FLUID

main16210-46052i2JZGE..JZS175199909-200108

16371PULLEY, FAN

main16371-46030i2JZGE..JZS175199909-200108

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W024i2JZGE..JZS175199909-200006

main16620-0W025i2JZGE..JZS175200006-200108

9002900002

main90029-00002

9010508250

main90105-08250

9010508257

main90105-08257

9017908153

main90179-08153

9044512291

main90445-12291

9092902007

main90929-02007

91511B0830

main91511-B0830

91511J0820

main91511-J0820

9212260816

main92122-60816

20 parts on this diagram · 1 diagram in section
