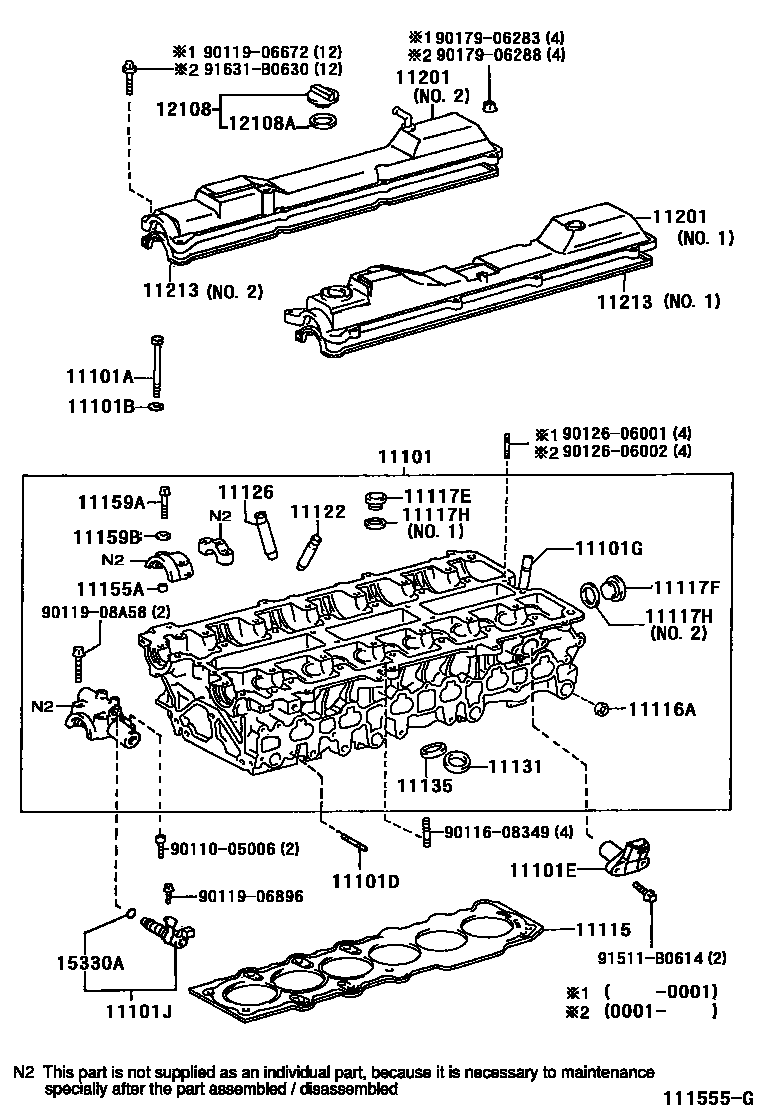

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101ESENSOR, CAM POSITION
11101GUNION(FOR CYLINDER HEAD)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-46011
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
NO.1
NO.2
11213GASKET, CYLINDER HEAD COVER
NO.1
NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
9011005006
main90110-05006
9011608349
main90116-08349
9011906672
main90119-06672
9011906896
main90119-06896
9011908A58
main90119-08A58
9012606001
main90126-06001
9012606002
main90126-06002
9017906283
main90179-06283
9017906288
main90179-06288
91511B0614
main91511-B0614
91631B0630
main91631-B0630
35 parts on this diagram · 1 diagram in section
