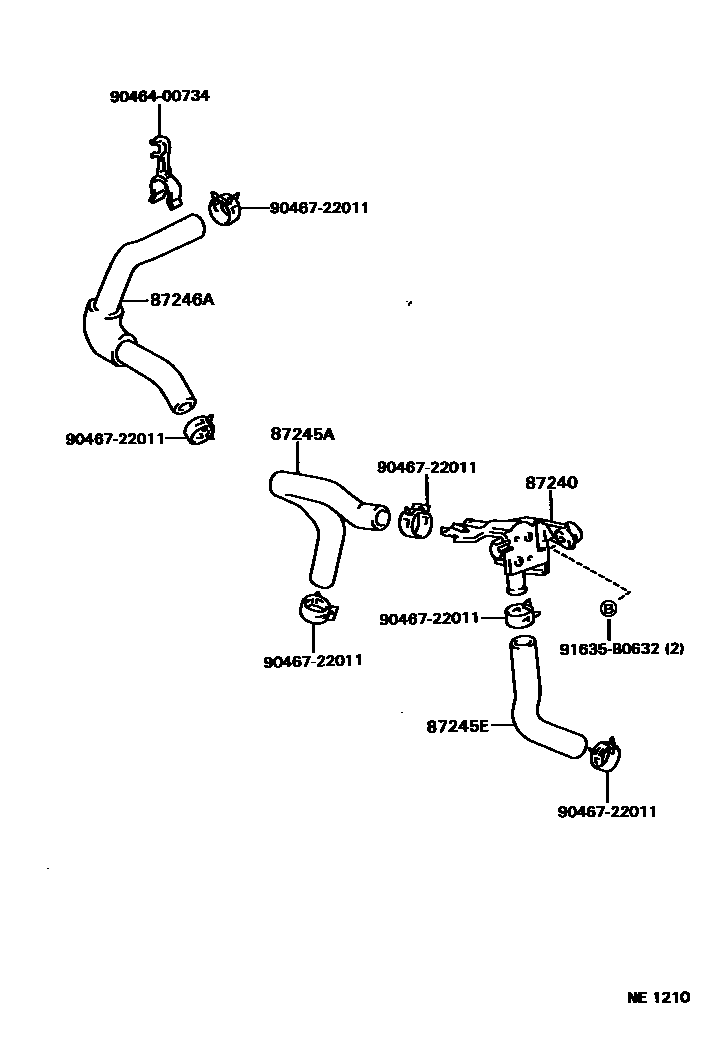

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-30650iGS151199707-199808

main87240-30670iJZS155..LHD199512

main87240-30680iJZS155..RHD199512

87245AHOSE, HEATER WATER, INLET A

main87245-3A710iJZS155..LHD199512-200001

main87245-3A711iJZS155200001

main87245-3F030iGS151199707-199808

main87245-3F240iJZS155..RHD199512-199909

87245EHOSE, HEATER WATER, INLET E

main87245-3F100iGS151199707-199808

main87245-3F120iJZS155..LHD199512-199908

main87245-3F260iJZS155..RHD199512

main87245-3F760iJZS155..LHD..4FC..GEN199908

87246AHOSE, HEATER WATER, OUTLET A

main87245-3A720iJZS155..LHD199512-199908

main87245-3F020iJZS155..RHD199512

main87245-3F040iGS151199707-199808

main87245-3F770iJZS155..LHD..4FC..GEN199908

9046400734

main90464-00734

9046722011

main90467-22011

91635B0632

main91635-B0632

7 parts on this diagram · 3 diagrams in section
