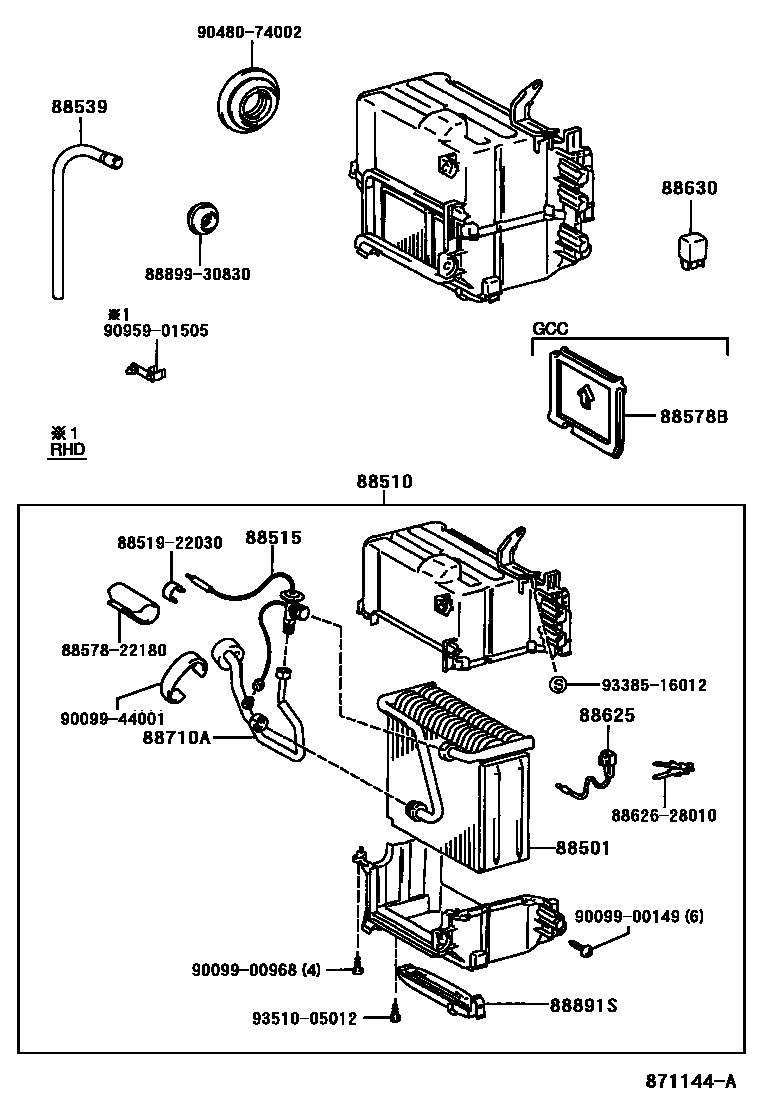

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR 0003 1O RING

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30870iGS151,JZS155..RHD199512

main88501-30880iJZS155..LHD199512

88510UNIT ASSY, COOLER

main88510-3F270iJZS155..RHD199512-199707

main88510-3F320iJZS155..LHD199512-199908

main88510-3F560iGS151,JZS155..RHD199707

main88510-3F690iJZS155..LHD..4FC..GEN199908

88515VALVE, COOLER EXPANSION

main88515-30610iGS151,JZS155..RHD199512-199908

main88515-30660iJZS155..LHD199512-199908

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30730iGS151,JZS155..RHD199512

main88539-30740iJZS155..GCC;JZS155..5F..GEN199908

main88539-30860iJZS155..LHD..4FC..GEN199908

88578BPACKING, COOLING UNIT, NO.1

main88578-30730×2iJZS155..GCC199512-199707

88625THERMISTOR, COOLER, NO.1

main88625-3A090iJZS155..LHD..4FC..GEN199908

main88625-3A110iGS151,JZS155..RHD199707

88630RELAY ASSY, COOLER

main90987-04002iGS151,JZS155199512

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A090iGS151,JZS155..RHD199512

main88710-3A110iJZS155..LHD199512

88891SCOVER, COOLER, NO.1

main88891-30670iGS151,JZS155..RHD199707-199909

8851922030HOLDER, REMOTE BULB

main88519-22030

8857822180PAKING, COOLER AIR DUCT

main88578-22180

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8889930830COVER, EVAPORATOR

main88899-30830

9009900149

main90099-00149

9009900968

main90099-00968

9009944001

main90099-44001

9048074002

main90480-74002

9095901505

main90959-01505

9338516012

main93385-16012

9351005012

main93510-05012

20 parts on this diagram · 3 diagrams in section
