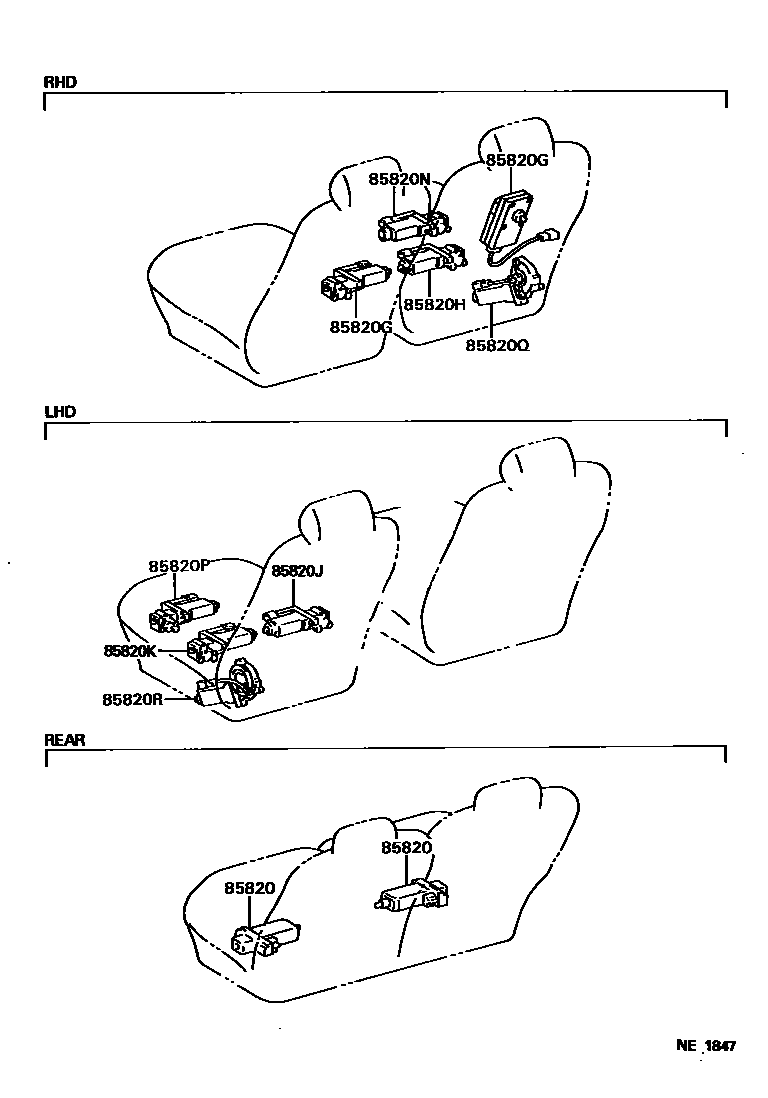

SEAT MOTOR & SEAT HEATER

85820MOTOR ASSY, POWER SEAT (FOR REAR)

main85820-30570×2iJZS155..ROY199512

85820GMOTOR ASSY, POWER SEAT

main85820-30530iJZS155..RHD199512

FRONT VERTICAL

main85820-30550iJZS155..RHD199512-199609

LUMBER SUPPORT

main85820-30551iJZS155..RHD199609

85820HMOTOR ASSY, POWER SEAT

main85820-30500iJZS155..RHD199707

main85820-30540iJZS155..RHD199512-199707

85820JMOTOR ASSY, POWER SEAT

main85820-30490iJZS155..LHD..ROY199512

85820KMOTOR ASSY, POWER SEAT

main85820-30500iJZS155..LHD..ROY199512

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85820-30570iJZS155..RHD199707

main85820-30670iJZS155..RHD199512-199707

85820PMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE LH)

main85820-30370iJZS155..LHD..ROY199512

main85820-30570iJZS155..HT199707

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-32020iJZS155..RHD199512

85820RMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING LH)

main85820-33010iJZS155..HT;JZS155..LHD..ROY199512

9 parts on this diagram · 1 diagram in section
