WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1000(*H,L=360)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=220)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=40)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=980)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1800(*H,L=970)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=240)
L=1450(*H,L=210)
8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22410
8538722420CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22420
9009904455
main90099-04455
9011906110
main90119-06110
9017906026
main90179-06026
9095001731
main90950-01731

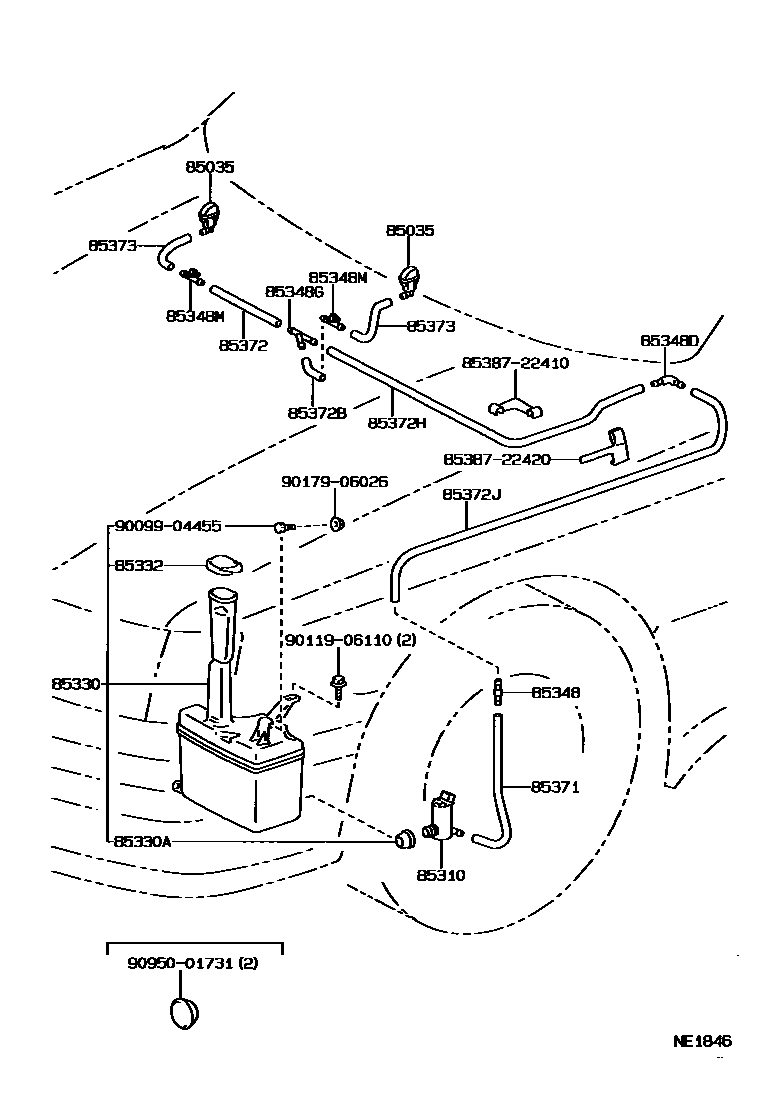

21 parts on this diagram · 1 diagram in section
