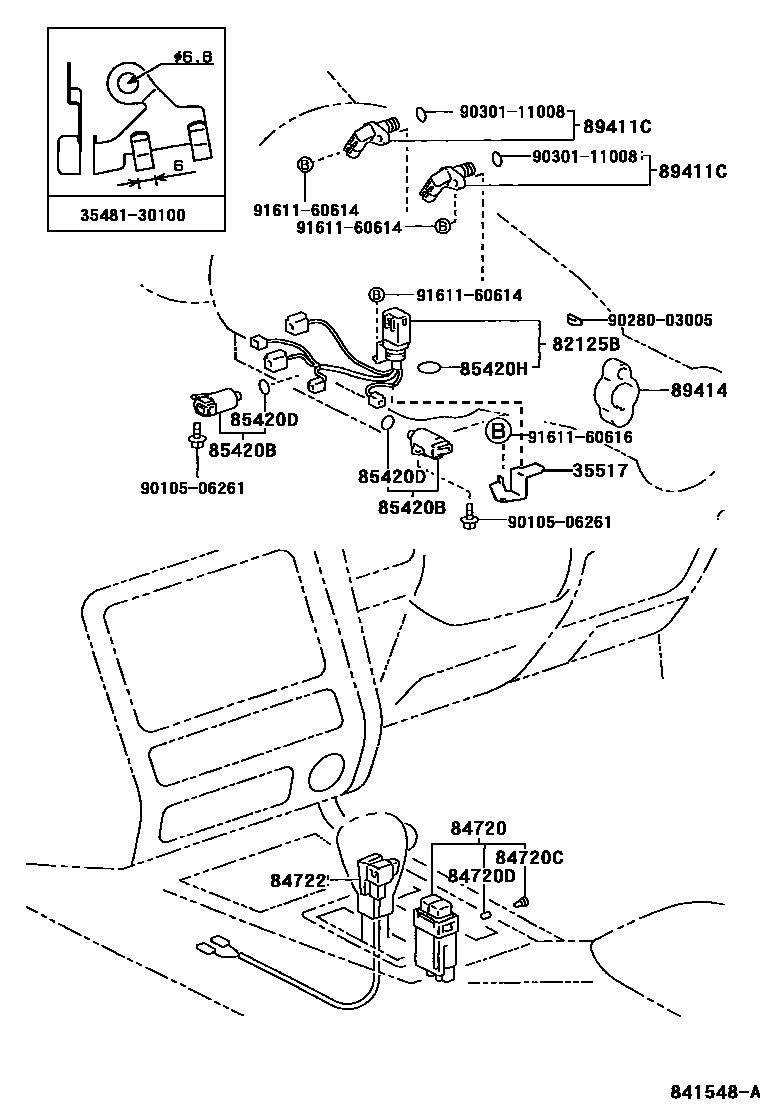

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
35517PLATE, TRANSMISSION WIRE LOCK
LEADED GASOLINE SPEC
82125BWIRE, TRANSMISSION
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
84720DCAP, PATTERN SELECT SWITCH
84722SWITCH, TRANSMISSION CONTROL
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
85420BSOLENOID ASSY, TRANSMISSION
NO.1,DENSO
NO.1,AISIN
NO.1
NO.2
NO.1
NO.2
NO.2,DENSO
NO.2,AISIN
85420DRING, O (FOR TRANSMISSION SOLENOID)
85420HRING, O(FOR SPEED SENSOR)
89411CSENSOR, SPEED
89414ROTOR, SENSOR
3548130100BODY, GOVERNOR
main35481-30100
9010506261
main90105-06261
9028003005
main90280-03005
9030111008
main90301-11008
9161160614
main91611-60614
9161160616
main91611-60616
17 parts on this diagram · 3 diagrams in section
