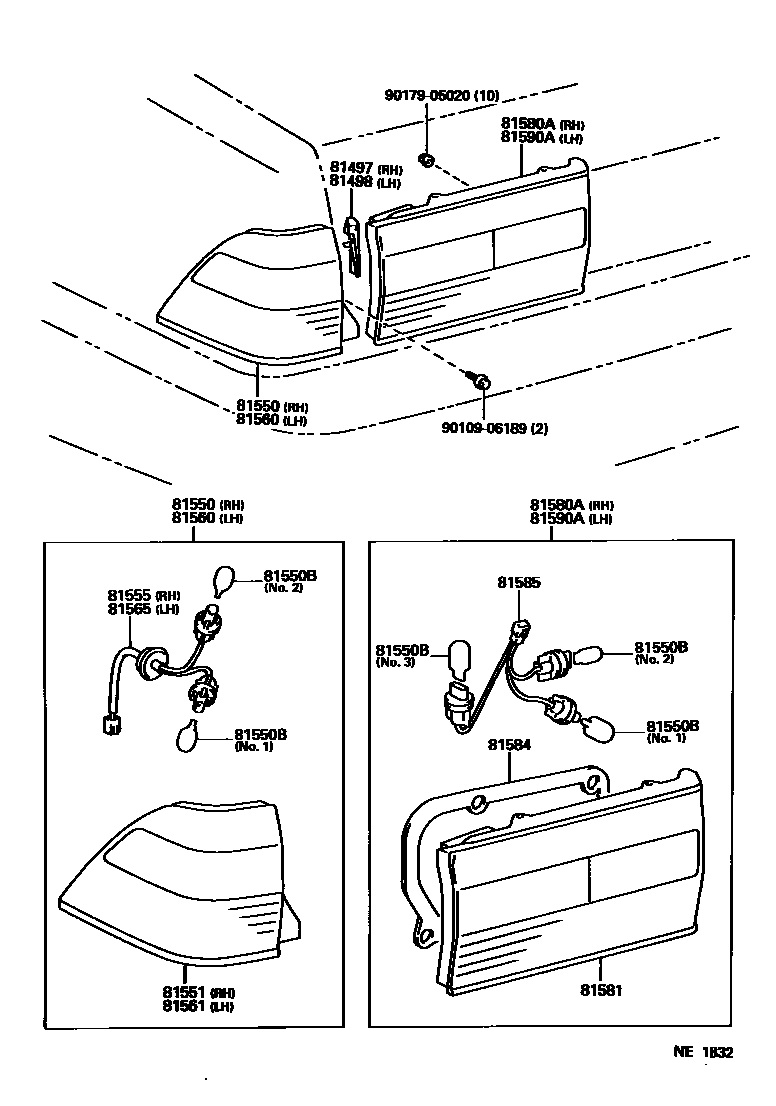

REAR COMBINATION LAMP

0001 1 0002 1

81497COVER, REAR COMBINATION LAMP, RH

main81497-30050iJZS155..SED199512

81498COVER, REAR COMBINATION LAMP, LH

main81498-30050iJZS155..SED199512

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30750iJZS155..SED199512

main81550-30810iGS151,JZS155..HT199707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2iJZS155..4FC..SED;JZS155..5F..SPSAL199512-199909

12V 16W,NO.3

main90981-11042×6iGS151,JZS155..HT199707-199909

12V 21W,NO.1,TOSHIBA

main90981-11043×6iGS151,JZS155..HT199707-199909

12V 21/5W,NO.2,TOSHIBA

main90981-11047×6iGS151,JZS155..HT199707-199909

12V 21W,NO.1,ICHIKO

main90981-11048×6iGS151,JZS155..HT199707-199909

12V 21/5W,NO.2,ICHIKO

main90981-11059×2iJZS155199909

12V 16W,NO.3

main90981-13043×4iJZS155..4FC..SED;JZS155..5F..SPSAL; JZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512

12V 21W,FOR CHINA,NO.1; 12V 21W,NO.1

main90981-13044×4iJZS155..SED199512

12V 21/5W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-30750iJZS155..SED199512

main81551-30810iGS151,JZS155..HT199707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30750iJZS155..SED199512

main81555-30810iGS151,JZS155..HT199707

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30620iJZS155..SED199512

main81560-30780iGS151,JZS155..HT199707

81561LENS, REAR COMBINATION LAMP, LH

main81561-30620iJZS155..SED199512

main81561-30780iGS151,JZS155..HT199707

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-30750iJZS155..SED199512

main81555-30810iGS151,JZS155..HT199707

81580ALAMP ASSY, REAR

main81580-30080iJZS155..4FC..SED;JZS155..5F..SPSAL199512

main81580-30110iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512

CHINA SPEC

main81580-30150iGS151,JZS155..HT199707

81581LENS, REAR LAMP

main81581-30080iJZS155..4FC..SED;JZS155..5F..SPSAL199512

RH

main81581-30110iJZS155..5F..ROY199512-199707

RH

main81581-30150iGS151,JZS155..HT199707

RH

main81591-30030iJZS155..4FC..SED;JZS155..5F..SPSAL199512

LH

main81591-30060iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512

FOR CHINA(BACK UP LAMP BULB=12V 21W),LH

main81591-30090iGS151,JZS155..HT199707

LH

81584PACKING, REAR LAMP RH

main81584-30080×2iJZS155..SED199512

81585SOCKET & WIRE, REAR LAMP

main81585-30080×2iJZS155..4FC..SED;JZS155..5F..SPSAL199512

main81585-30110×2iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512

FOR CHINA(BACK UP LAMP BULB=12V 21W)

main81585-30150×2iGS151,JZS155..HT199707

81590ALAMP ASSY, REAR, LH

main81590-30030iJZS155..4FC..SED;JZS155..5F..SPSAL199512

main81590-30060iJZS155..5F..ROY199512-199707

main81590-30090iGS151,JZS155..HT199707

9010906189

main90109-06189

9017905020

main90179-05020

16 parts on this diagram · 2 diagrams in section
