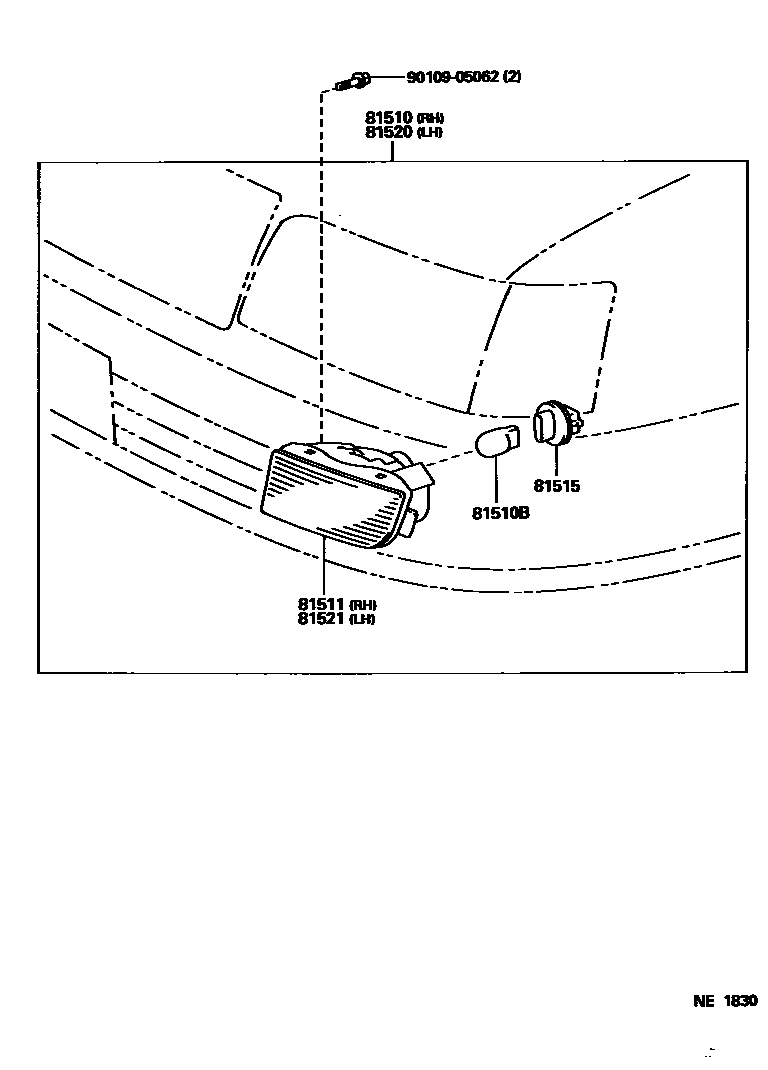

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-30350iJZS155..SED199512-199909

main81510-30370iGS151,JZS155..HT199707-199909

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iJZS155..SED199512-199909

12V 21W

main90981-13043iGS151,JZS155..HT199707-199909

12V 21W,FRONT TURN LAMP

main99132-12050iGS151,JZS155..HT199707-199909

12V 5W,SIDE TURN

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-30350iJZS155..SED199512-199909

main81511-30370iGS151,JZS155..HT199707-199909

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main90075-99080iGS151,JZS155199512-199711

main90075-99128iGS151,JZS155199711-199909

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-30580iJZS155..SED199512-199909

main81520-30600iGS151,JZS155..HT199707-199909

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-30580iJZS155..SED199512-199909

main81521-30600iGS151,JZS155..HT199707-199909

9010905062

main90109-05062

7 parts on this diagram · 2 diagrams in section
