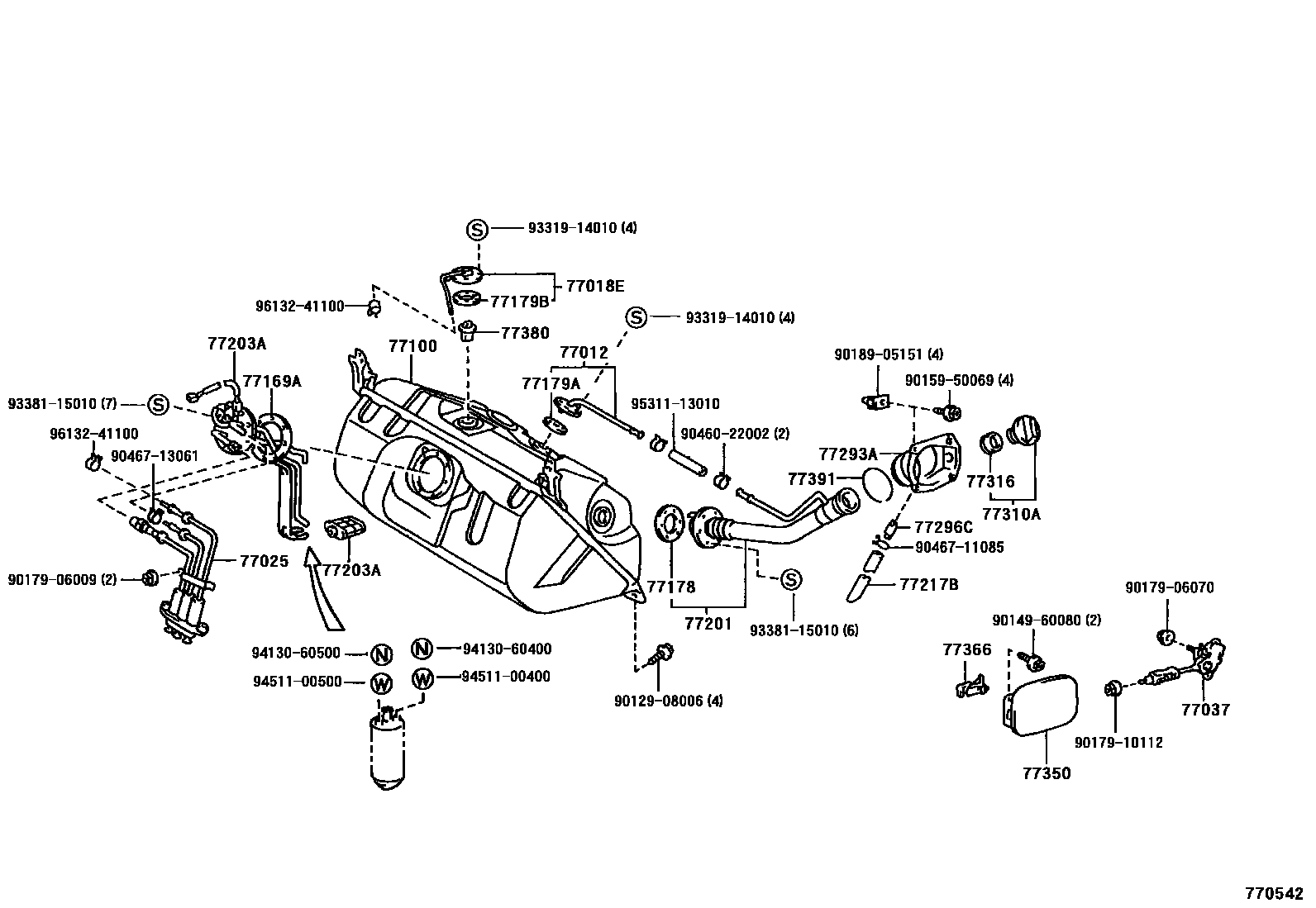

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1LHD..4FC..GEN

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-30090iGS151,JZS155199512

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-30070iGS151,JZS155199512

77025TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR

main77025-30250iGS151,JZS155199512

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77030-30080iGS151,JZS155199512

77100TANK ASSY, FUEL

main77001-30460iGS151,JZS155199512

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iGS151,JZS155199512

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iGS151,JZS155199512

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGS151,JZS155199512

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iGS151,JZS155199512

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30240iJZS155..RHD..SED199609

LEADED GASOLINE SPEC

main77201-30240iJZS155..LHD199512-199909

main77201-30340iGS151,JZS155..RHD199512-199909

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-30090iJZS155199512

main77203-30140iGS151199707-199808

77217BHOSE, FUEL TANK INLET

main77217-30060iGS151,JZS155199512

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-30030iGS151,JZS155..HT199707

main77293-30040iJZS155..SED199512

77296PLATE, FUEL TUBE GROMMET SUPPORT

main77296-30060iGS151,JZS155199512

77296CPLATE, FUEL HOSE GROMMET SUPPORT

main77296-22070iGS151,JZS155199512

77310ACAP ASSY, FUEL TANK

main77310-14090iGS151,JZS155199512-199803

main77310-48020iGS151,JZS155199803

77316GASKET, FUEL TANK CAP

main77316-14010iGS151,JZS155199512-199803

main77316-16010iGS151,JZS155199803

77350LID ASSY, FUEL FILLER OPENING

main77350-30310iJZS155..SED199512

main77350-30320iGS151,JZS155..HT199707

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30010iGS151,JZS155..HT199707

main77360-30020iJZS155..SED199512

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iGS151,JZS155199512

77391RING, FUEL INLET BOX

main77391-22020iGS151,JZS155199512

9012908006

main90129-08006

9014960080

main90149-60080

9015950069

main90159-50069

9017906009

main90179-06009

9017906070

main90179-06070

9017910112

main90179-10112

9018905151

main90189-05151

9046022002

main90460-22002

9046711085

main90467-11085

9046713061

main90467-13061

9331914010

main93319-14010

9338115010

main93381-15010

9413060400

main94130-60400

9413060500

main94130-60500

9451100400

main94511-00400

9451100500

main94511-00500

9531113010

main95311-13010

9613241100

main96132-41100

39 parts on this diagram · 7 diagrams in section
