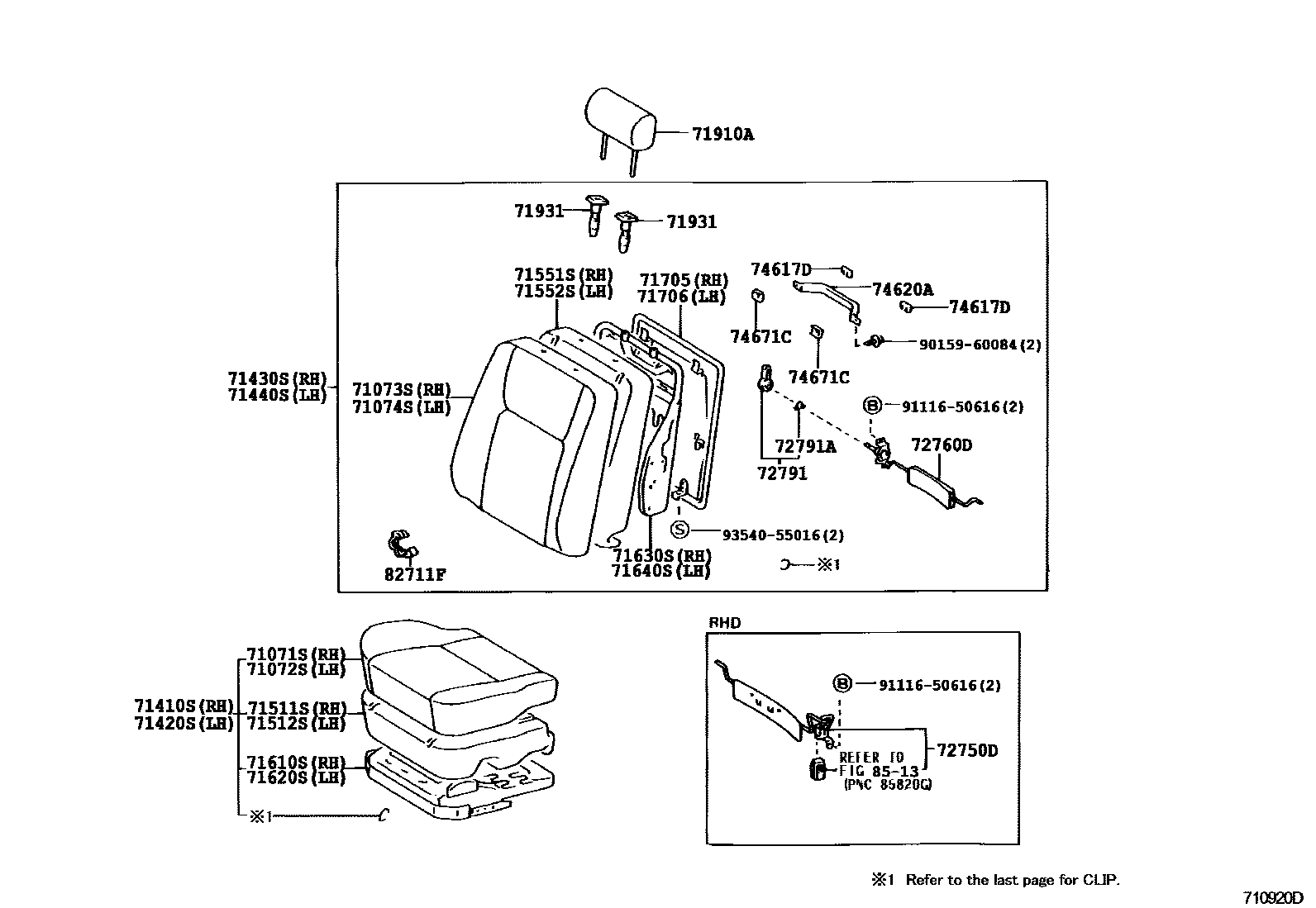

FRONT SEAT & SEAT TRACK

0001 1 0002 1RH SEAT 0003 1RH SEAT 0004 1RH SEAT 0005 1LH SEAT 0006 1LH SEAT 0007 1LH SEAT 0008 1CLIP

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3F220-B0iJZS155..RHD199512-199707

DK.BLUE GRAY,TRIM1#

main71071-3F220-E0iJZS155..RHD199512-199707

ANTELOPE,TRIM4#

main71071-3F310-B2iGS151199707-199808

DK.BLUE GRAY,TRIM1#

main71071-3F310-E2iGS151199707-199808

ANTELOPE,TRIM4#

main71071-3F770-B2iJZS155..LHD..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71071-3F770-E2iJZS155..LHD..ROY199512-199707

ANTELOPE,TRIM4#

main71071-3F780-B2iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main71071-3F780-B3iJZS155..SPSAL199707-200108

DK.BLUE GRAY,TRIM1#

main71071-3F780-E2iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main71071-3F780-E3iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

main71071-3F810-E1iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71071-3F810-E3iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71071-3K030-B0iJZS155..RHD199707-199909

DK. BLUE GRAY,TRIM1#

main71071-3K030-E0iJZS155..RHD199707-199909

ANTELOPE,TRIM4#

main71071-3K090-B0iJZS155..LHD..ROY199707-200108

DK. BLUE GRAY,TRIM1#

main71071-3K090-E0iJZS155..LHD..ROY199707-200108

ANTELOPE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3A520-B0iJZS155..LHD..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71072-3A520-E0iJZS155..LHD..ROY199512-199707

ANTELOPE,TRIM4#

main71072-3A530-B9iJZS155..RHD199512-199707

DK.BLUE GRAY,TRIM1#

main71072-3A530-E9iJZS155..RHD199512-199707

ANTELOPE,TRIM4#

main71072-3A550-B0iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main71072-3A550-B4iGS151,JZS155..ROYEX,SPSAL199707-200108

DK. BLUE GRAY,TRIM1#

main71072-3A550-E0iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main71072-3A550-E4iGS151,JZS155..ROYEX,SPSAL199707-200108

ANTELOPE,TRIM4#

main71072-3F200-E1iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71072-3F200-E3iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71072-3F360-B0iJZS155..HT;JZS155..LHD..ROY199707-200108

DK. BLUE GRAY,TRIM1#

main71072-3F360-E0iJZS155..HT;JZS155..LHD..ROY199707-200108

ANTELOPE,TRIM4#

main71072-3F370-B0iJZS155..RHD..SED199707-199909

DK. BLUE GRAY,TRIM1#

main71072-3F370-E0iJZS155..RHD..SED199707-199909

ANTELOPE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-3A870-B0iJZS155..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71073-3A870-E0iJZS155..ROY199512-199707

ANTELOPE,TRIM4#

main71073-3F030-B0iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main71073-3F030-B4iJZS155..SPSAL199707-200108

DK. BLUE GRAY,TRIM1#

main71073-3F030-E0iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main71073-3F030-E4iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

main71073-3F480-E1iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71073-3F480-E3iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71073-3F530-B0iJZS155..RHD199707-199909

DK. BLUE GRAY,TRIM1#

main71073-3F530-E0iJZS155..RHD199707-199909

ANTELOPE,TRIM4#

main71073-3F540-B0iGS151199707-199808

DK. BLUE GRAY,TRIM1#

main71073-3F540-E0iGS151199707-199808

ANTELOPE,TRIM4#

main71073-3F550-B0iJZS155..LHD..ROY199707-200108

DK. BLUE GRAY,TRIM1#

main71073-3F550-E0iJZS155..LHD..ROY199707-200108

ANTELOPE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-3A870-B0iJZS155..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71073-3A870-E0iJZS155..ROY199512-199707

ANTELOPE,TRIM4#

main71073-3F030-B0iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main71073-3F030-B4iJZS155..SPSAL199707-200108

DK. BLUE GRAY,TRIM1#

main71073-3F030-E0iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main71073-3F030-E4iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

main71073-3F480-E1iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71073-3F480-E3iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71073-3F550-B0iJZS155..LHD..ROY199707-200108

DK. BLUE GRAY,TRIM1#

main71073-3F550-E0iJZS155..LHD..ROY199707-200108

ANTELOPE,TRIM4#

main71074-3A540-B0iJZS155..RHD199707-199909

DK. BLUE GRAY,TRIM1#

main71074-3A540-E0iJZS155..RHD199707-199909

ANTELOPE,TRIM4#

main71074-3A560-B0iGS151199707-199808

DK. BLUE GRAY,TRIM1#

main71074-3A560-E0iGS151199707-199808

ANTELOPE,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-3F400-B0iJZS155..RHD199512-199707

***,DK.BLUE GRAY,TRIM1#

main71410-3F400-E0iJZS155..RHD199512-199707

***,ANTELOPE,TRIM4#

main71410-3K090-B2iGS151199707-199808

***,DK.BLUE GRAY,TRIM1#

main71410-3K090-E2iGS151199707-199808

***,ANTELOPE,TRIM4#

main71410-3K150-B2iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

main71410-3K150-B3iJZS155..SPSAL199707-200108

***,DK.BLUE GRAY,TRIM1#

main71410-3K150-E2iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

main71410-3K150-E3iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

main71410-3K170-B2iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71410-3K170-E2iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71410-3K180-E1iJZS155..LHD..ROY199512-199707

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71410-3K180-E3iJZS155..LHD..ROY199707-200108

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71410-3K240-B0iJZS155..RHD199707-199909

***,DK.BLUE GRAY,TRIM1#

main71410-3K240-E0iJZS155..RHD199707-199909

***,ANTELOPE,TRIM4#

main71410-3K300-B0iJZS155..LHD..ROY199707-200108

***,DK.BLUE GRAY,TRIM1#

main71410-3K300-E0iJZS155..LHD..ROY199708-200108

***,ANTELOPE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-3A580-B0iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71420-3A580-E0iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71420-3A590-B9iJZS155..RHD199512-199707

***,DK.BLUE GRAY,TRIM1#

main71420-3A590-E9iJZS155..RHD199512-199707

***,ANTELOPE,TRIM4#

main71420-3A610-B0iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

main71420-3A610-B4iJZS155..SPSAL199707-200108

***,DK.BLUE GRAY,TRIM1#

main71420-3A610-E0iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

main71420-3A610-E4iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

main71420-3F330-E1iJZS155..LHD..ROY199512-199707

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71420-3F330-E3iJZS155..LHD..ROY199707-200108

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71420-3F410-B0iJZS155..HT199707-199909

***,DK.BLUE GRAY,TRIM1#

main71420-3F410-E0iJZS155..HT199707-199909

***,ANTELOPE,TRIM4#

main71420-3F420-B0iJZS155..RHD..SED199707-199909

***,DK.BLUE GRAY,TRIM1#

main71420-3F420-E0iJZS155..RHD..SED199707-199909

***,ANTELOPE,TRIM4#

main71420-3F460-B0iGS151199707-199808

***,DK.BLUE GRAY,TRIM1#

main71420-3F460-E0iGS151199707-199808

***,ANTELOPE,TRIM4#

main71420-3F510-B0iJZS155..LHD..ROY199707-200108

***,DK.BLUE GRAY,TRIM1#

main71420-3F510-E0iJZS155..LHD..ROY199707-200108

***,ANTELOPE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-30030-B0iJZS155..RHD199707-199909

***,DK. BLUE GRAY,TRIM1#

main71040-30030-E0iJZS155..RHD199707-199909

***,ANTELOPE,TRIM4#

main71040-30070-B0iGS151199707-199808

***,DK. BLUE GRAY,TRIM1#

main71040-30070-E0iGS151199707-199808

***,ANTELOPE,TRIM4#

main71430-3F850-B0iJZS155..RHD199512-199707

***,DK.BLUE GRAY,TRIM1#

main71430-3F850-E0iJZS155..RHD199512-199707

***,ANTELOPE,TRIM4#

main71430-3K840-E1iJZS155..LHD..ROY199512-199707

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71430-3K840-E3iJZS155..LHD..ROY199707-200108

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71440-3F770-B7iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71440-3F770-E7iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71440-3F830-B0iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

main71440-3F830-B2iJZS155..SPSAL199707-200108

***,DK.BLUE GRAY,TRIM1#

main71440-3F830-E0iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

main71440-3F830-E2iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

main71440-3K780-B0iJZS155..LHD..ROY199707-200108

***,DK.BLUE GRAY,TRIM1#

main71440-3K780-E0iJZS155..LHD..ROY199707-200108

***,ANTELOPE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-3F770-B7iJZS155..RHD199512-199707

***,DK.BLUE GRAY,TRIM1#

main71440-3F770-E7iJZS155..RHD199512-199707

***,ANTELOPE,TRIM4#

main71440-3K610-B2iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71440-3K610-E2iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71440-3K620-E1iJZS155..LHD..ROY199512-199707

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71440-3K620-E3iJZS155..LHD..ROY199707-200108

***,W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main71440-3K630-B1iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

main71440-3K630-B2iJZS155..SPSAL199707-200108

***,DK.BLUE GRAY,TRIM1#

main71440-3K630-E1iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

main71440-3K630-E2iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

main71440-3K700-B0iJZS155..HT199707-199909

***,DK.BLUE GRAY,TRIM1#

main71440-3K700-E0iJZS155..HT199707-199909

***,ANTELOPE,TRIM4#

main71440-3K710-B0iJZS155..RHD..SED199707-199909

***,DK.BLUE GRAY,TRIM1#

main71440-3K710-E0iJZS155..RHD..SED199707-199909

***,ANTELOPE,TRIM4#

main71440-3K740-B0iGS151199707-199808

***,DK.BLUE GRAY,TRIM1#

main71440-3K740-E0iGS151199707-199808

***,ANTELOPE,TRIM4#

main71440-3K880-B0iJZS155..LHD..ROY199707-200108

***,DK.BLUE GRAY,TRIM1#

main71440-3K880-E0iJZS155..LHD..ROY199707-200108

***,ANTELOPE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30800iGS151,JZS155199512

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-30460iJZS155199512-199707

main71512-30560iGS151,JZS155..RHD199707

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30720iJZS155199512-199909

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-30720iJZS155199512-199909

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-30620iJZS155..RHD199512

main71610-30630iGS151199707-199808

main71610-30720iJZS155..LHD199512

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-30280iJZS155..HT;JZS155..LHD..ROY199512

main71620-30290iJZS155..RHD..SED;GS151,JZS155..ROYEX,SPSAL199512

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-3A060iJZS155..GCC;JZS155..SPSAL..GEN199512-199909

main71630-3A220iJZS155..RHD199512-199707

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-3A060iJZS155..RHD199512-199707

main71630-3A220iJZS155..LHD199512-199909

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30380-B0iGS151,JZS155..ROYEX,SPSAL199512-200108

BLUE GRAY,TRIM1#

main71705-30380-E0iGS151,JZS155..ROYEX,SPSAL199512-200108

QUARTZ,TRIM4#

main71705-30390-B0iJZS155..ROY199512-199707

BLUE GRAY,TRIM1#

main71705-30390-E0iJZS155..ROY199512-199707

QUARTZ,TRIM4#

main71705-30590-E0iJZS155..LHD..ROY199512-200108

W(LEATHER SEAT)-*104,QUARTZ,TRIM4#

main71705-30640-B0iJZS155..ROY199707-200108

BLUE GRAY,TRIM1#

main71705-30640-E0iJZS155..ROY199707-200108

QUARTZ,TRIM4#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-30380-B0iGS151,JZS155..ROYEX,SPSAL199512-200108

BLUE GRAY,TRIM1#

main71705-30380-E0iGS151,JZS155..ROYEX,SPSAL199512-200108

QUARTZ,TRIM4#

main71705-30390-B0iJZS155..ROY199512-199707

BLUE GRAY,TRIM1#

main71705-30390-E0iJZS155..ROY199512-199707

QUARTZ,TRIM4#

main71705-30590-E0iJZS155..LHD..ROY199512-200108

W(LEATHER SEAT)-*104,QUARTZ,TRIM4#

main71705-30640-B0iJZS155..ROY199707-200108

BLUE GRAY,TRIM1#

main71705-30640-E0iJZS155..ROY199707-200108

QUARTZ,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-30720-B0iJZS155..ROY199512-199707

BLUE GRAY,TRIM1#

main71910-30720-E0iJZS155..ROY199512-199707

QUARTZ,TRIM4#

main71910-3A020-B0iGS151,JZS155..ROYEX,SPSAL199512-200108

BLUE GRAY,TRIM1#

main71910-3A020-E0iGS151,JZS155..ROYEX,SPSAL199512-200108

QUARTZ,TRIM4#

main71910-3A040-E1iJZS155..LHD..ROY199512-200108

W(LEATHER SEAT)-*104,QUARTZ,TRIM4#

main71910-3A090-B0iJZS155..RHD..SED199707-199909

BLUE GRAY,TRIM1#,RH

main71910-3A090-B0iJZS155..HT;JZS155..LHD..ROY199707-200108

BLUE GRAY,TRIM1#

main71910-3A090-E0iJZS155..RHD..SED199707-199909

QUARTZ,TRIM4#,RH

main71910-3A090-E0iJZS155..HT;JZS155..LHD..ROY199707-200108

QUARTZ,TRIM4#

main71920-30580-B0iJZS155..RHD..SED199707-199909

BLUE GRAY,TRIM1#,LH

main71920-30580-E0iJZS155..RHD..SED199707-199909

QUARTZ,TRIM4#,LH

71931SUPPORT, FRONT SEAT HEADREST

main71930-30100-B1iGS151,JZS155199512-200108

W(LOCK),BLUE GRAY,TRIM1#

main71930-30100-E0iGS151,JZS155199512-200108

W(LOCK),QUARTZ,TRIM4#

main71931-30020-B1iGS151,JZS155199512-200108

W/O(LOCK),BLUE GRAY,TRIM1#

main71931-30020-E0iGS151,JZS155199512-200108

W/O(LOCK),QUARTZ,TRIM4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30180iGS151199707-199808

main72750-30190iJZS155..RHD199512-199609

main72750-30191iJZS155..RHD199609

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30130iJZS155..LHD199512

72791LEVER, LUMBAR SUPPORT

main72791-12010-B2iGS151;JZS155..LHD199512-200108

BLUE GRAY,TRIM1#

main72791-12010-E1iGS151;JZS155..LHD199512-200108

QUARTZ,TRIM4#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01006iGS151;JZS155..LHD199512

74617DPLUG, ASSIST GRIP

main74617-30020-B3iJZS155..ROY199512

BLUE GRAY,TRIM1#

main74617-30020-E0iJZS155..ROY199512

QUARTZ,TRIM4#

74620AGRIP ASSY, ASSIST, REAR

main74620-30050-B2iJZS155..ROY199512

BLUE GRAY,TRIM1#

main74620-30050-E0iJZS155..ROY199512

QUARTZ,TRIM4#

74671CSUPPORT, ASSIST GRIP

main74671-30010iJZS155..ROY199512

82711FCLAMP, WIRING HARNESS

main82711-1E360iJZS155..RHD..SED199707

RH

main82711-3F310iJZS155..RHD..SED199707

LH

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

9015960084

main90159-60084

9111650616

main91116-50616

9354055016

main93540-55016

32 parts on this diagram · 8 diagrams in section
