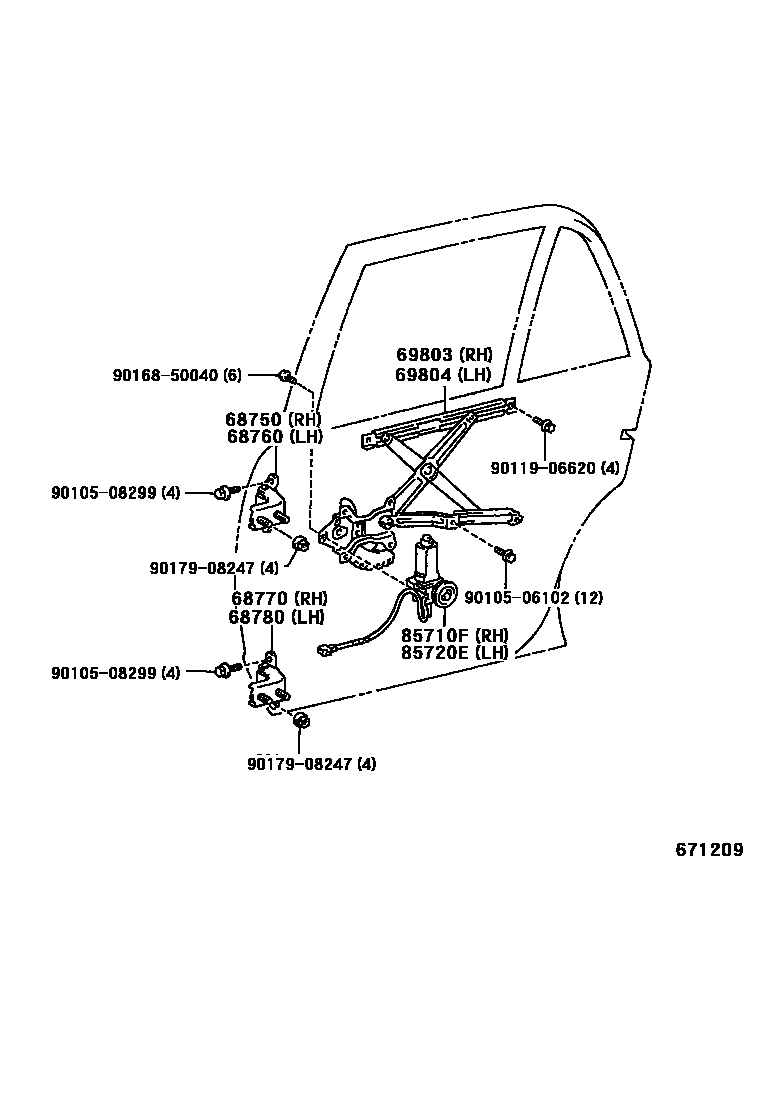

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30100iGS151,JZS155..HT199707

main68750-32060iJZS155..SED199512

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30110iGS151,JZS155..HT199707

main68760-32060iJZS155..SED199512

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30080iGS151,JZS155..HT199707

main68770-30090iJZS155..SED199706

main68770-32070iJZS155199512-199706

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30100iGS151,JZS155..HT199707

main68780-30110iJZS155..SED199706

main68780-32060iJZS155199512-199706

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30220iGS151,JZS155..HT199707

main69803-30230iJZS155..SED199512

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30220iGS151,JZS155..HT199707

main69804-30230iJZS155..SED199512

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30300iJZS155..SED199512

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30250iJZS155..SED199512

9010506102

main90105-06102

9010508299

main90105-08299

9011906620

main90119-06620

9016850040

main90168-50040

9017908247

main90179-08247

13 parts on this diagram · 2 diagrams in section
