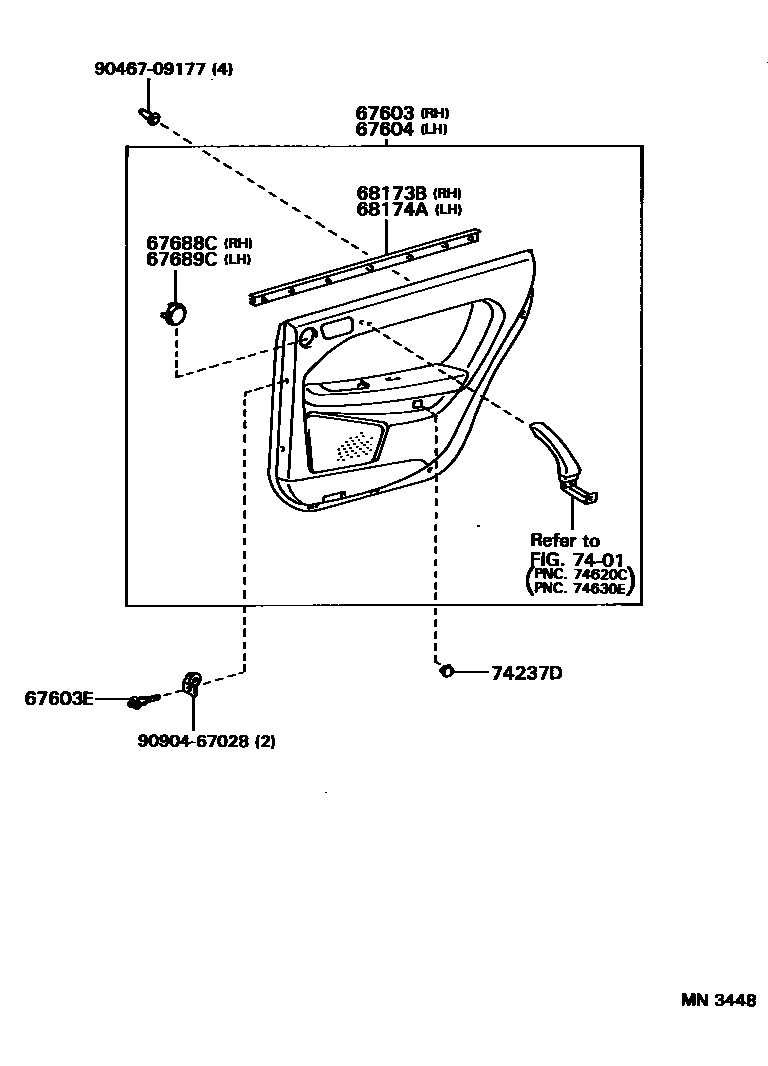

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-3A860-B0iJZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main67630-3A860-E0iJZS155..HT199707-199909

ANTELOPE,TRIM4#

main67630-3F050-B0iJZS155..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main67630-3F050-E0iJZS155..ROY199512-199707

ANTELOPE,TRIM4#

main67630-3F060-B0iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main67630-3F060-E0iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main67630-3F110-E0iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main67630-3F140-B0iJZS155..ROY..SED199707-200108

DK.BLUE GRAY,TRIM1#

main67630-3F140-E0iJZS155..ROY..SED199707-200108

ANTELOPE,TRIM4#

main67630-3F150-B0iJZS155..SPSAL199707-200108

DK.BLUE GRAY,TRIM1#

main67630-3F150-E0iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

main67630-3F220-E0iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main67630-3F310-B0iGS151199707-199808

DK.BLUE GRAY,TRIM1#

main67630-3F310-E0iGS151199707-199808

ANTELOPE,TRIM4#

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-B2×10iGS151,JZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main90467-07066-E5×10iGS151,JZS155..HT199707-199909

ANTELOPE,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-3A880-B0iJZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main67640-3A880-E0iJZS155..HT199707-199909

ANTELOPE,TRIM4#

main67640-3F050-B0iJZS155..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main67640-3F050-E0iJZS155..ROY199512-199707

ANTELOPE,TRIM4#

main67640-3F060-B0iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

main67640-3F060-E0iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

main67640-3F110-E0iJZS155..LHD..ROY199512-199707

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main67640-3F160-B0iJZS155..ROY..SED199707-200108

DK.BLUE GRAY,TRIM1#

main67640-3F160-E0iJZS155..ROY..SED199707-200108

ANTELOPE,TRIM4#

main67640-3F170-B0iJZS155..SPSAL199707-200108

DK.BLUE GRAY,TRIM1#

main67640-3F170-E0iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

main67640-3F240-E0iJZS155..LHD..ROY199707-200108

W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#

main67640-3F330-B0iGS151199707-199808

DK.BLUE GRAY,TRIM1#

main67640-3F330-E0iGS151199707-199808

ANTELOPE,TRIM4#

67688CGRILLE, SPEAKER DOOR, REAR NO.2 RH

main67688-30020-B0iJZS155..ROY..SED199512

DK.BLUE GRAY,TRIM1#

main67688-30020-E0iJZS155..ROY..SED199512

ANTELOPE,TRIM4#

67689CGRILLE, SPEAKER DOOR, REAR NO.2 LH

main67688-30020-B0iJZS155..ROY..SED199512

DK.BLUE GRAY,TRIM1#

main67688-30020-E0iJZS155..ROY..SED199512

ANTELOPE,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-30080iGS151,JZS155..HT199707

main68173-30101iJZS155199512-199707

main68173-30120iJZS155..SED199707

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-30051iJZS155199512-199707

main68174-30070iJZS155..SED199707

main68174-30080iGS151,JZS155..HT199707

7401ARMREST & VISOR

→ Go to FIG 74-01

74237DCAP, REAR DOOR ARMREST BASE

main74237-30030-B0×2iJZS155..SED199512-200108

DK.BLUE GRAY,TRIM1#

main74237-30030-E1×2iJZS155..SED199512-200108

ANTELOPE,TRIM4#

9046709177

main90467-09177

9090467028

main90904-67028

11 parts on this diagram · 4 diagrams in section
