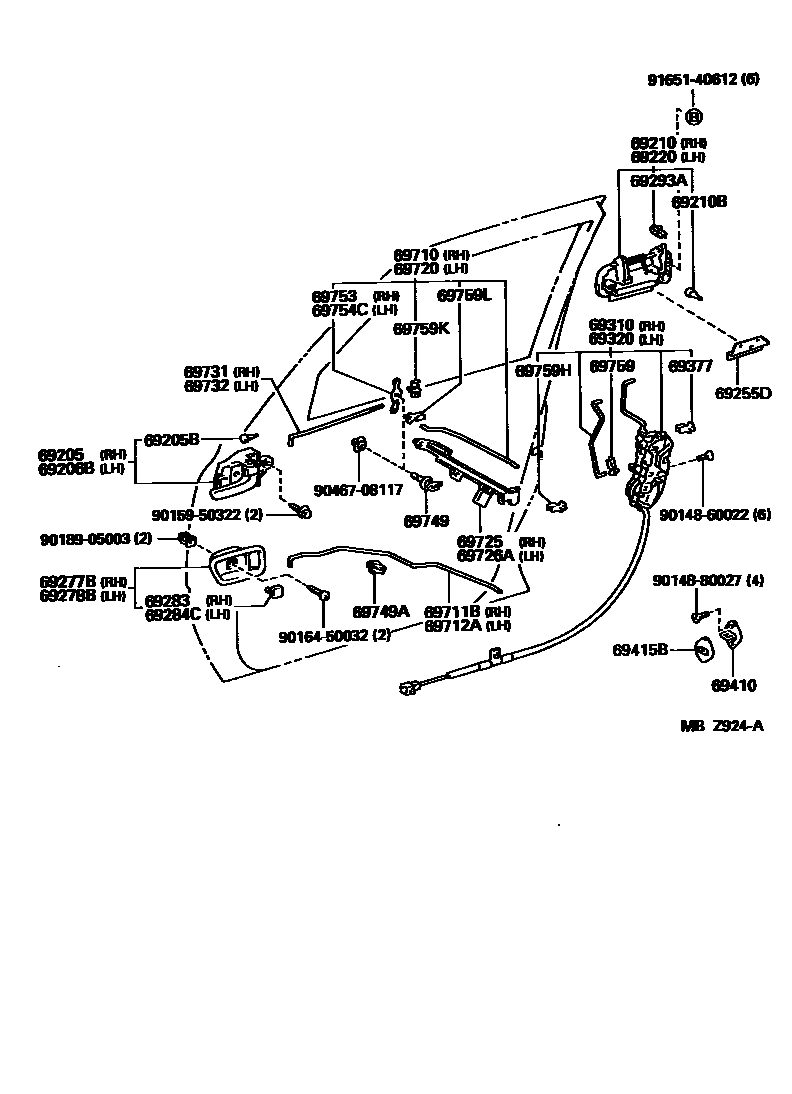

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.BLUE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
ORCHID BROWN,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.BLUE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
ORCHID BROWN,TRIM4#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
GRAY
YELLOW
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
RH
LH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759KSNAP, DOOR LOCK CONTROL LINK
LH
RH
69759LSNAP, DOOR LOCK CONTROL LINK
9014860022
main90148-60022
9014880027
main90148-80027
9015950322
main90159-50322
9016450032
main90164-50032
9018905003
main90189-05003
9046708117
main90467-08117
9165140612
main91651-40612
40 parts on this diagram · 3 diagrams in section
