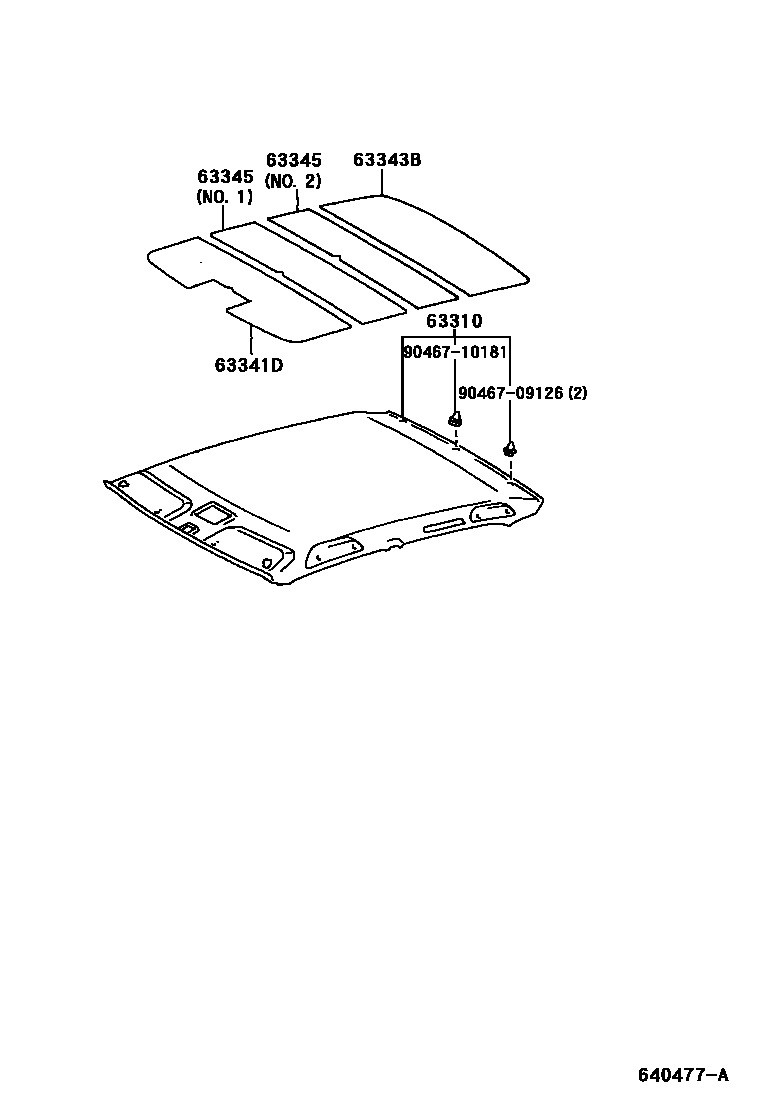

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-30650-B0iGS151,JZS155..HT199707-199909

W(REAR AIR CONDITIONER),LT. BLUISH GRAY,TRIM1#

main63310-30650-E0iGS151,JZS155..HT199707-199909

W(REAR AIR CONDITIONER),QUARTZ,TRIM4#

main63310-30660-B0iGS151,JZS155..HT199707-199909

LT. BLUISH GRAY,TRIM1#

main63310-30660-E0iGS151,JZS155..HT199707-199909

QUARTZ,TRIM4#

main63310-30730-B0iJZS155..ROY..SED; JZS155..SPSAL199512-199905

LT. BLUISH GRAY,TRIM1#; W(REAR AIR CONDITIONER),LT. BLUISH GRAY,TRIM1#

main63310-30730-E0iJZS155..ROY..SED; JZS155..SPSAL199512-199905

QUARTZ,TRIM4#; W(REAR AIR CONDITIONER),QUARTZ,TRIM4#

main63310-30731-B0iJZS155..4FC..SPSAL..GEN; JZS155..ROY..SED199905-200108

LT. BLUISH GRAY,TRIM1#; W(MANUAL AIR CONDITIONER),LT. BLUISH GRAY,TRIM1#

main63310-30731-E0iJZS155..4FC..SPSAL..GEN; JZS155..ROY..SED199905-200108

QUARTZ,TRIM4#; W(MANUAL AIR CONDITIONER),QUARTZ,TRIM4#

main63310-30740-B0iJZS155..SPSAL199512-199905

LT. BLUISH GRAY,TRIM1#

main63310-30740-E0iJZS155..SPSAL199512-199905

QUARTZ,TRIM4#

main63310-30741-B0iJZS155..SPSAL199905-200108

LT. BLUISH GRAY,TRIM1#

main63310-30741-E0iJZS155..SPSAL199905-200108

QUARTZ,TRIM4#

63341DPAD, ROOF SILENCER, FRONT

main63341-30230iJZS155199909-200108

main63341-30270iJZS155..SED199512-199909

main63341-30280iGS151,JZS155..HT199707-199909

63343BPAD, ROOF SILENCER, REAR

main63343-30190iGS151,JZS155199512-200108

63345PAD, ROOF SILENCER, NO.5

main63345-30090×2iGS151,JZS155199512-199909

NO.1 & NO.2

main63345-30130iJZS155199909-200108

NO.1

9046709126

main90467-09126

9046710181

main90467-10181

6 parts on this diagram · 1 diagram in section
