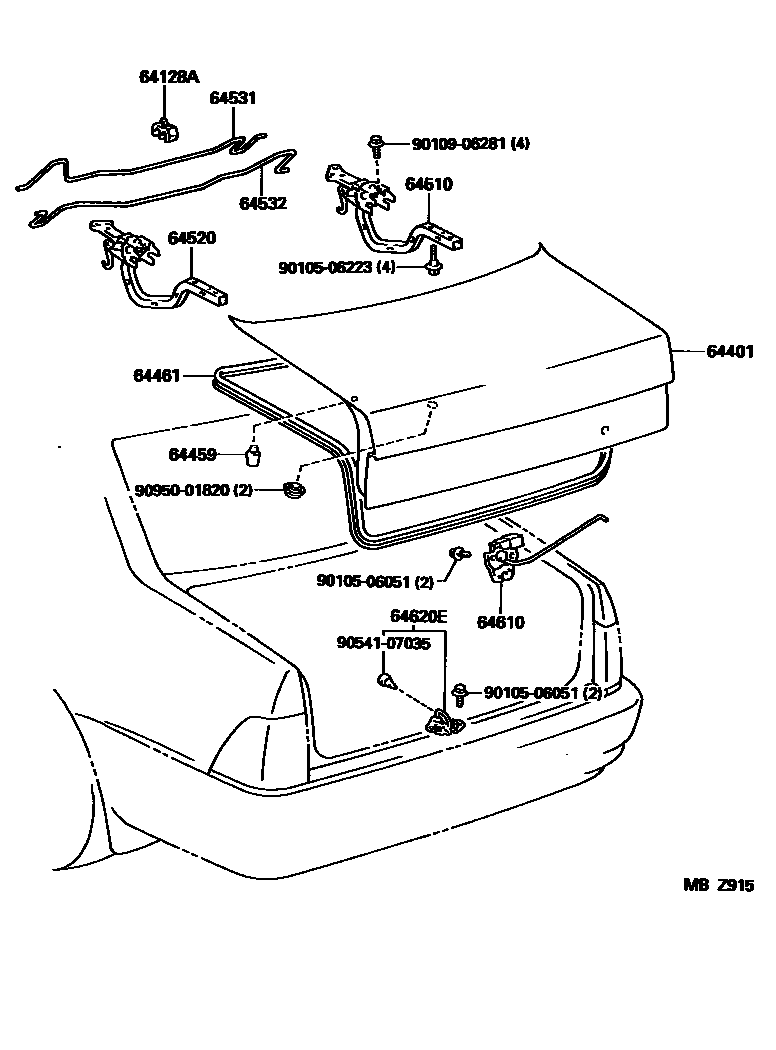

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-30050iGS151,JZS155199512

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30880iJZS155..SED199512

main64401-3A010iGS151,JZS155..HT199707

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09114×2iJZS155..SED199512

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30250iGS151,JZS155..HT199707

main64461-30290iJZS155..SED199512

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30230iJZS155..SED199512

main64510-30310iGS151,JZS155..HT199707

TYPE A:REFER TO ILLUSTRATION

main64510-30340iGS151,JZS155..HT199707

TYPE B:REFER TO ILLUSTRATION

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-30230iJZS155..SED199512

main64510-30310iGS151,JZS155..HT199707

TYPE A:REFER TO ILLUSTRATION

main64510-30340iGS151,JZS155..HT199707

TYPE B:REFER TO ILLUSTRATION

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30220iGS151,JZS155..HT199707

main64531-30240iJZS155..SED199512

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30220iGS151,JZS155..HT199707

main64532-30240iJZS155..SED199512

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30130iJZS155..SED199512

main64600-30150iGS151,JZS155..HT199707

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30100iGS151,JZS155199512-199804

main64620-30110iJZS155199804

9010506051

main90105-06051

9010506223

main90105-06223

9010906281

main90109-06281

9054107035

main90541-07035

9095001820

main90950-01820

15 parts on this diagram · 2 diagrams in section
