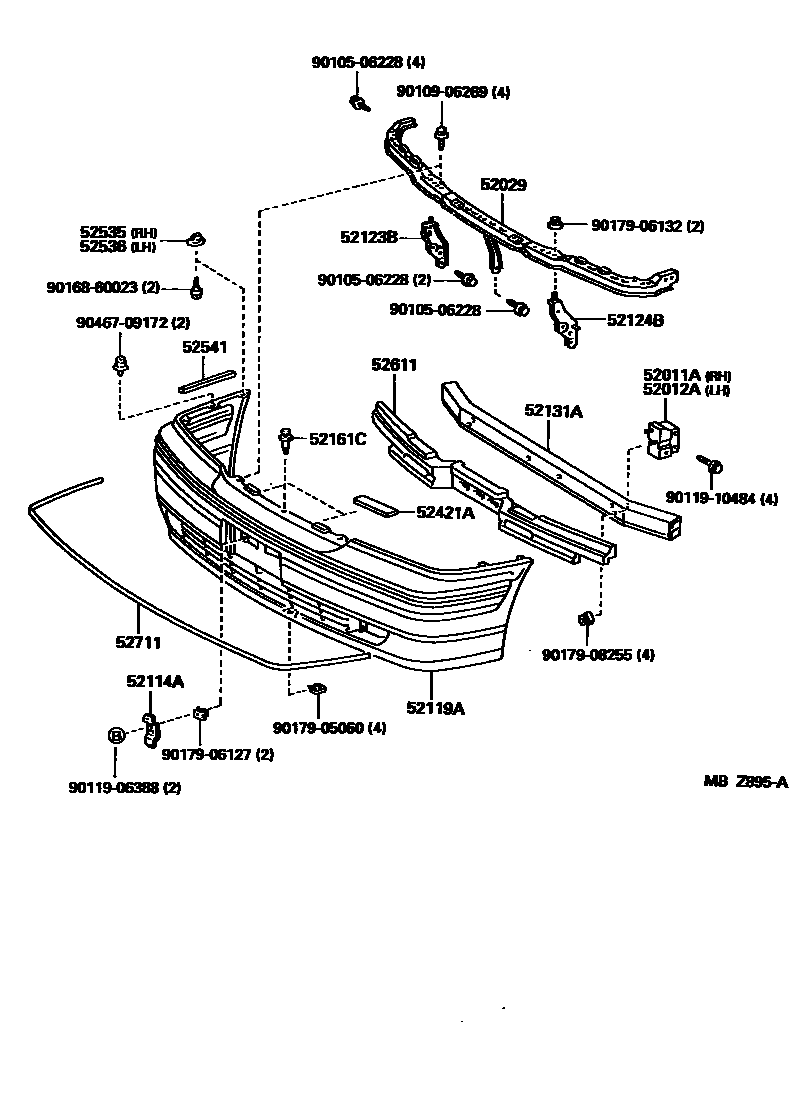

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52119ACOVER, FRONT BUMPER
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
9010506228
main90105-06228
9010906269
main90109-06269
9011906388
main90119-06388
9011910484
main90119-10484
9016860023
main90168-60023
9017905060
main90179-05060
9017906127
main90179-06127
9017906132
main90179-06132
9017908255
main90179-08255
9046709172
main90467-09172
25 parts on this diagram · 4 diagrams in section
