04466PAD KIT, DISC BRAKE, REAR

main04466-30030i199512-199807

main04466-30140i199807

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30180i199512

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-24010i199609

main04946-30060i199512-199609

04948FITTING KIT, DISC BRAKE, REAR

main04948-30040i199512

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i199512

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030i199512

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22070i199512

SUB PIN SIDE

main47715-22080i199512

MAIN PIN SIDE

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30180i199512

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-30190i199512

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30090i199512

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30100i199512

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-30170i199512

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164i199512

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-30090i199512

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30350i199512-199609

main47730-30351i199609

47731BPISTON, REAR DISC BRAKE

main47731-30120i199512

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006i199512

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30040i199512

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30350i199512-199609

main47750-30351i199609

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010i199512

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070i199512

sub47775-50010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10206i199512

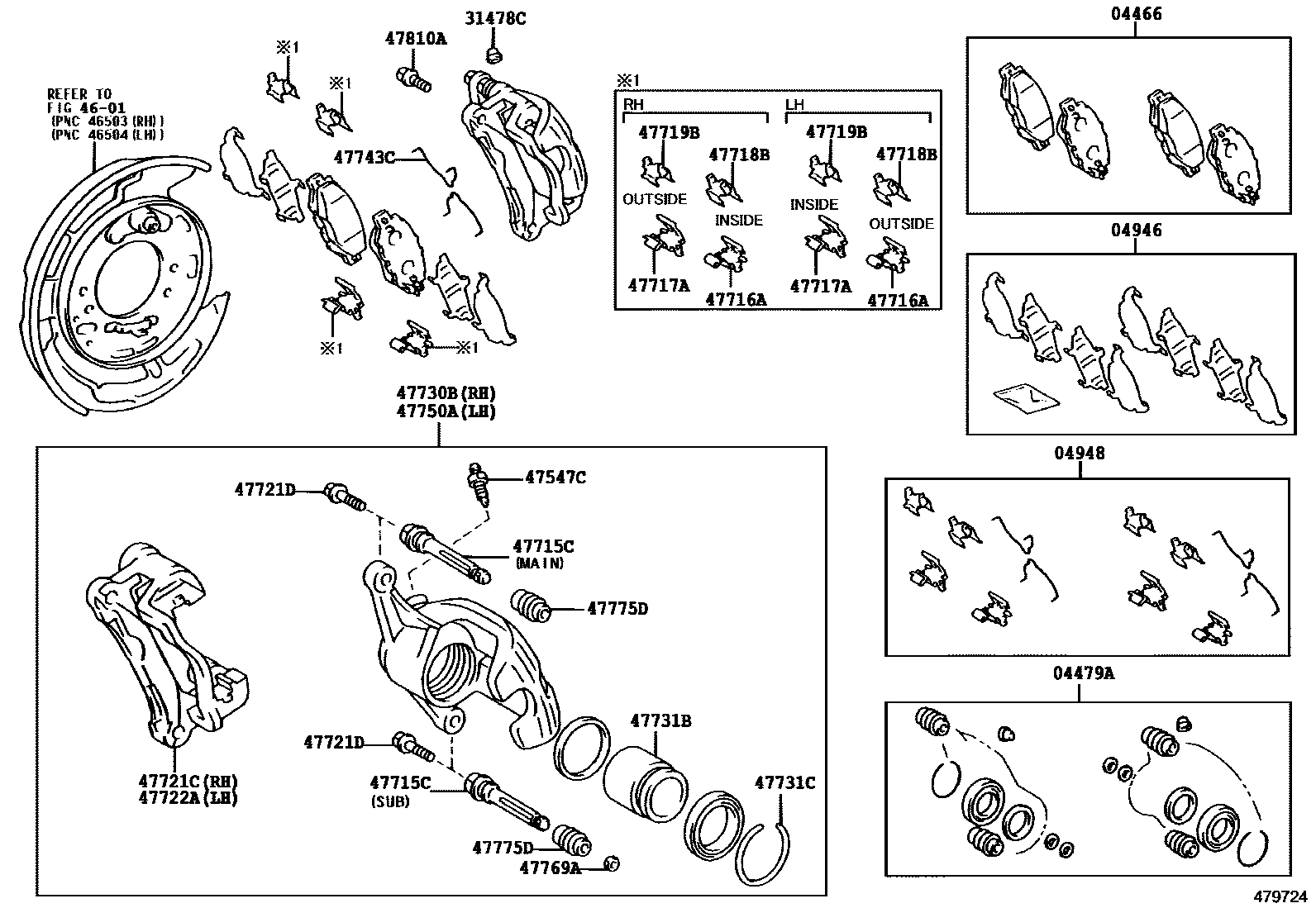

REAR DISC BRAKE CALIPER & DUST COVER
