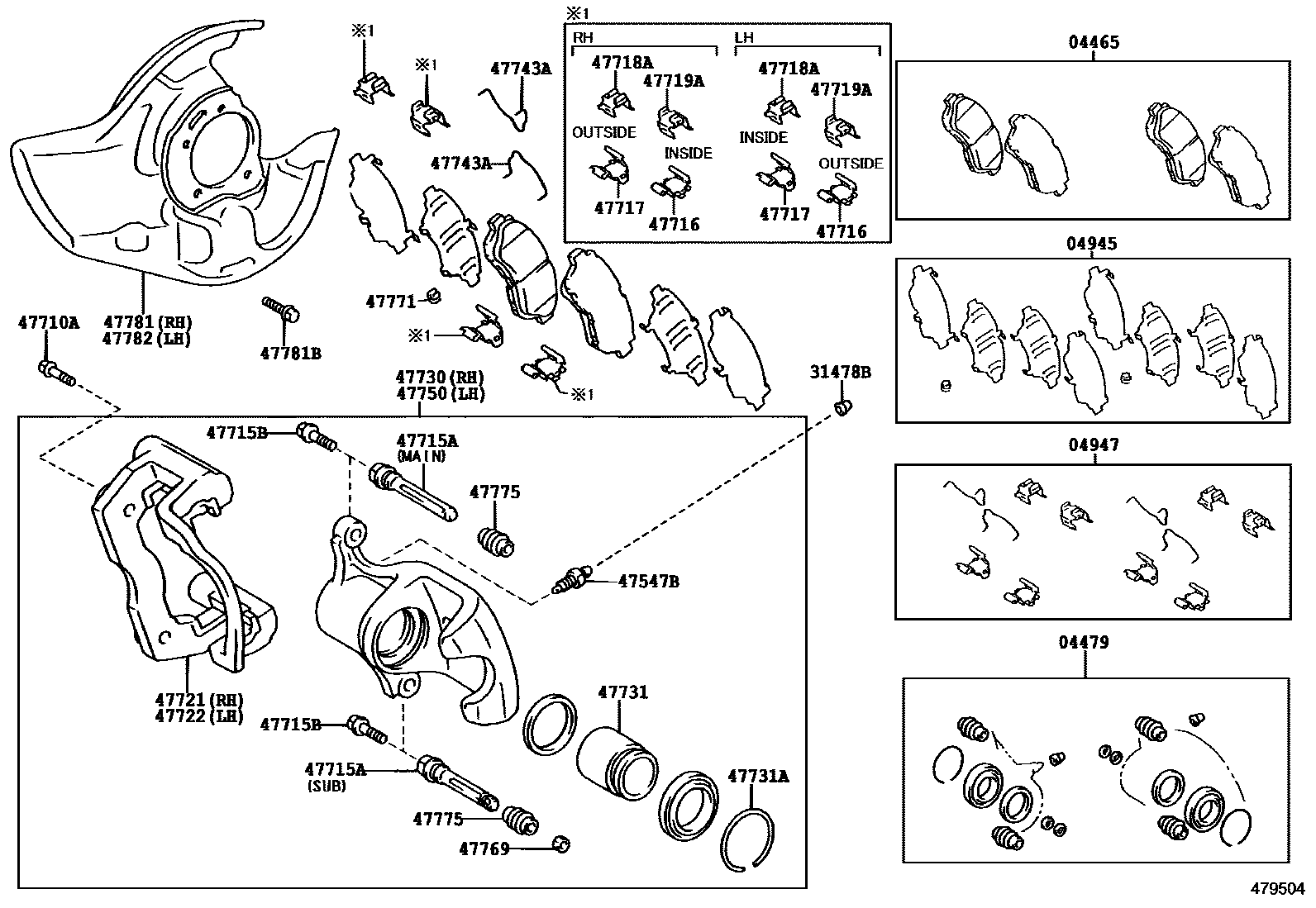

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30080iGS151,JZS155199512

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30150iGS151,JZS155199512-200101

sub04479-30151

main04479-30151iJZS155200101

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33020iGS151,JZS155199512

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30100iGS151,JZS155199512

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGS151,JZS155199512

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGS151,JZS155199512

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGS151,JZS155199512

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGS151,JZS155199512

SUB PIN SIDE

main47715-22080iGS151,JZS155199512

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGS151,JZS155199512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30160iGS151,JZS155199512

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-30170iGS151,JZS155199512

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30050iGS151,JZS155199512

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30060iGS151,JZS155199512

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22150iGS151,JZS155199512

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22110iGS151,JZS155199512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30330iGS151,JZS155199512

47731PISTON, FRONT DISC BRAKE

main47731-30110iGS151,JZS155199512

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iGS151,JZS155199512

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50010iGS151,JZS155199512

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30330iGS151,JZS155199512

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGS151,JZS155199512

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-50010iGS151,JZS155199707

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGS151,JZS155199512

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22161iGS151,JZS155..GEN199512-200009

sub47781-22162

main47781-22162iJZS155200009

main47781-30200iJZS155..GCC199601-199909

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iJZS155199512-199601

*6-1.0PX14-7.5

main90148-60028iGS151,JZS155199601

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22161iJZS155199512-200009

sub47782-22162

main47782-22162iJZS155200009

main47782-30200iJZS155..GCC199601-199909

26 parts on this diagram · 1 diagram in section
