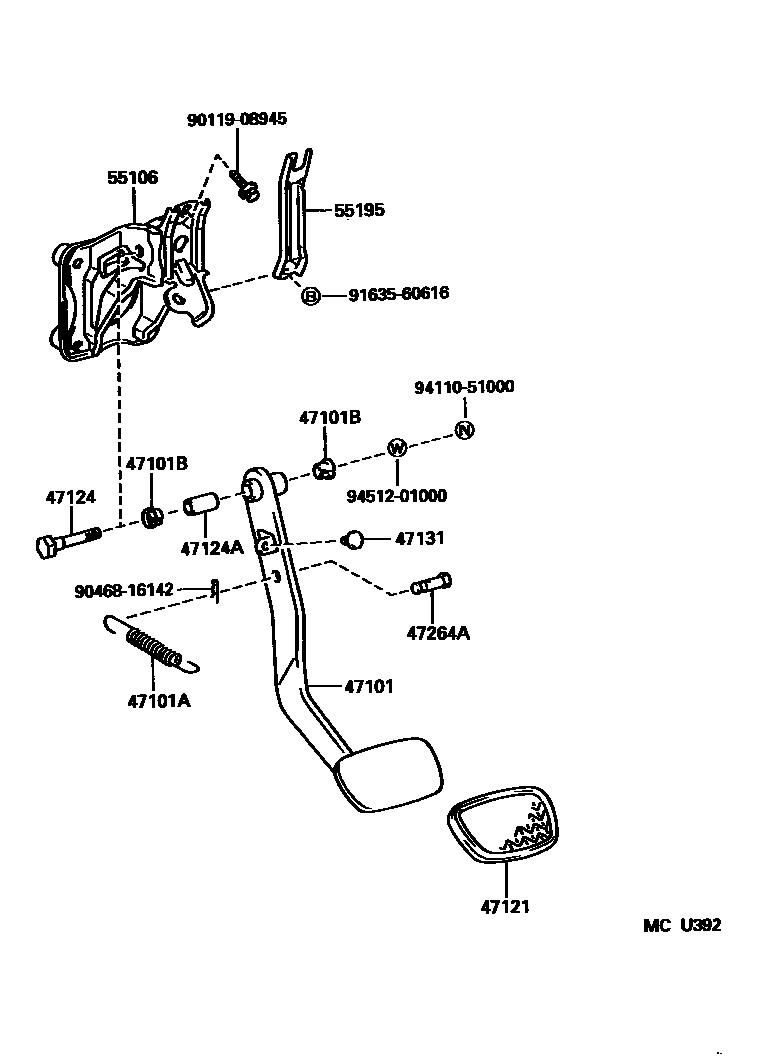

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-30370iGS151,JZS155..RHD199512

main47101-30400iJZS155..LHD..4FC199512

main47101-30410iJZS155..5F199512

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13005iGS151,JZS155199512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGS151,JZS155199512

47121PAD, BRAKE PEDAL

main31321-14020iJZS155..5F199512

main47121-50010iGS151,JZS155..4FC199512

47124SHAFT, BRAKE PEDAL

main90101-10015iJZS155199512-199602

main90101-10039iGS151,JZS155199602

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGS151,JZS155199512

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGS151,JZS155199512

47264APIN(FOR PUSH ROD)

main90249-10064iGS151,JZS155199512

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30290iGS151,JZS155..RHD199512

main55106-30310iJZS155..LHD199512

55195STAY, PEDAL BRACKET, NO.1

main55195-30050iJZS155..LHD199512

9011908945

main90119-08945

9046816142

main90468-16142

9163560616

main91635-60616

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 2 diagrams in section
