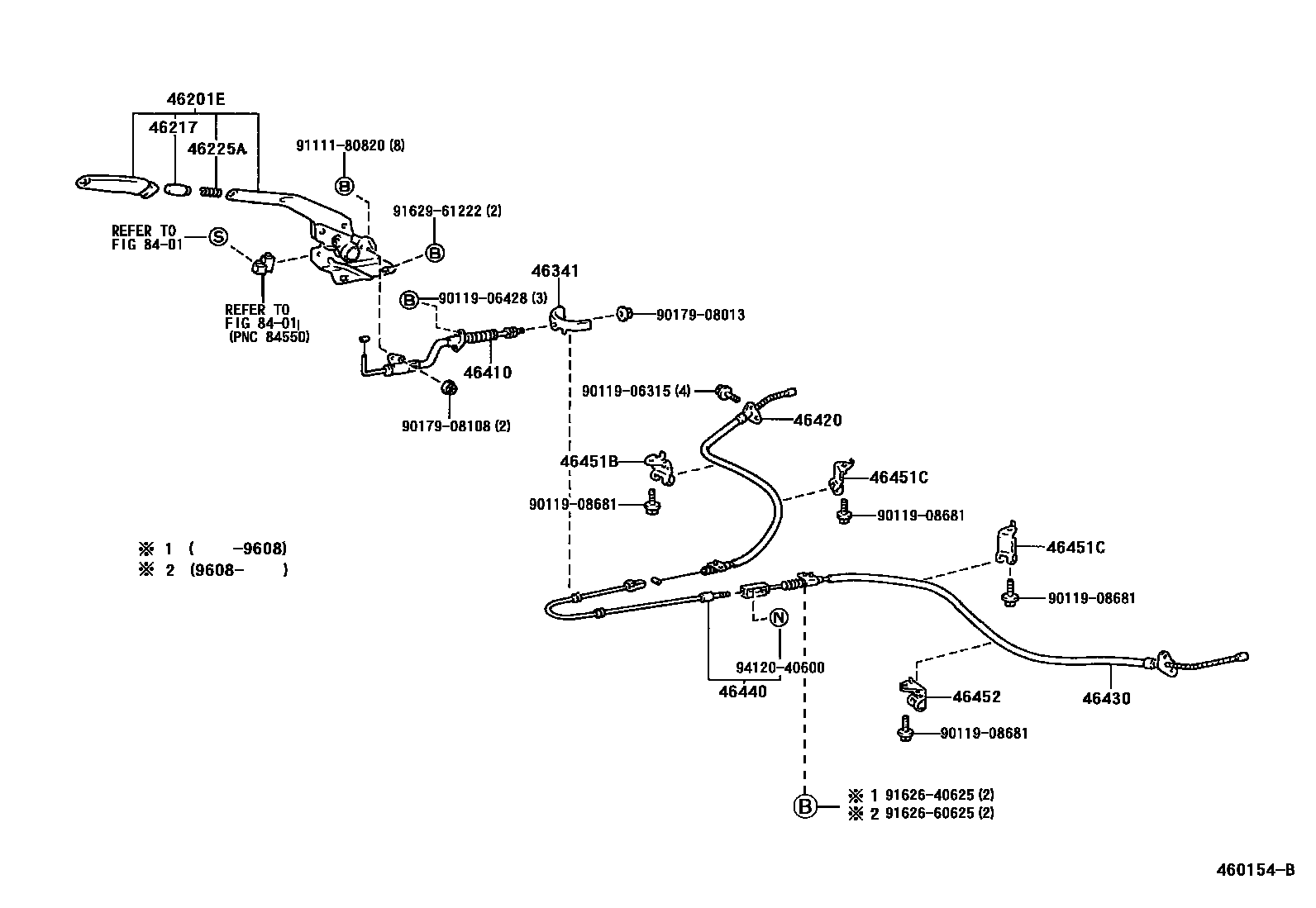

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30140iJZS155..RHD199512-199707

main46201-30170iGS151,JZS155..RHD199707

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-30150-B0iJZS155..LHD199512

DK.BLUE GRAY,TRIM1#

main46201-30150-E0iJZS155..LHD199512

ANTELOPE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-22060-B0iJZS155..LHD199512

DK.BLUE GRAY,TRIM1#

main46217-22060-E1iJZS155..LHD199512

ANTELOPE,TRIM4#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iJZS155..LHD199512

46341EQUALIZER, PARKING BRAKE

main46341-22040iGS151,JZS155199512

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22230iGS151,JZS155..RHD199707

main46410-30640iJZS155..RHD199512-199707

main46410-30690iJZS155..LHD199512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30560iGS151,JZS155199512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30130iGS151,JZS155199512

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-30120iGS151,JZS155199512

46451BRACKET, CABLE SUPPORT

main46451-22040iGS151,JZS155..RHD199512

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-22070iGS151,JZS155199512

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-22061×2iGS151,JZS155199512

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-22040iGS151,JZS155199512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906315

main90119-06315

9011906428

main90119-06428

9011908681

main90119-08681

9017908013

main90179-08013

9017908108

main90179-08108

9111180820

main91111-80820

9162640625

main91626-40625

9162660625

main91626-60625

9162961222

main91629-61222

9412040600

main94120-40600

24 parts on this diagram · 4 diagrams in section
