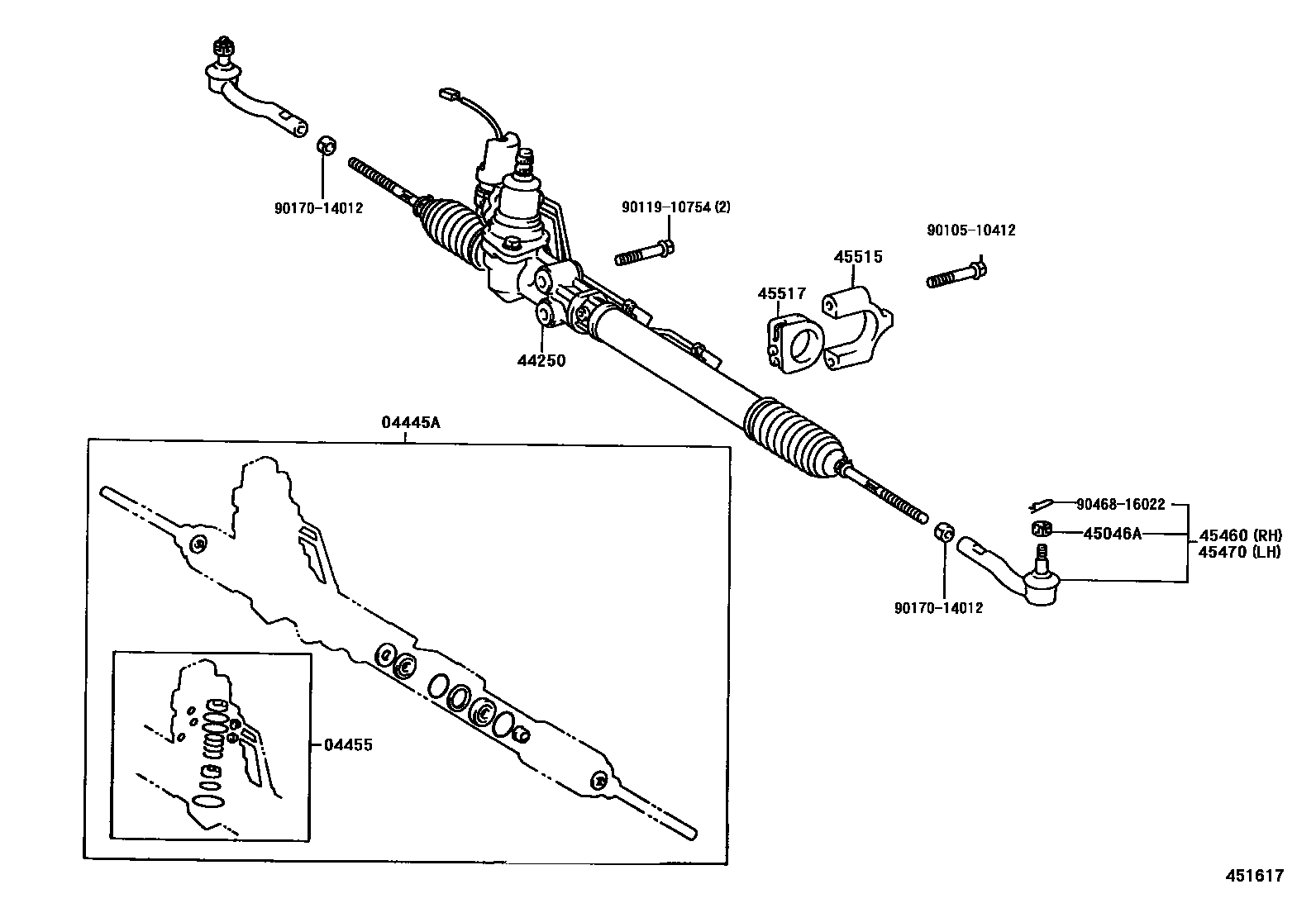

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-30190iJZS155..RHD199512-199909

main04445-30200iGS151199707-199808

main04445-30210iJZS155..LHD199512-200010

main04445-51011iJZS155200010

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-27030iJZS155..LHD199512-200010

main04455-30040iJZS155..RHD199512-199909

main04455-30060iGS151199707-199808

main04455-51010iJZS155200010

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30080iJZS155..LHD199512

main44250-30090iJZS155..RHD199512-199707

main44250-30100iGS151199707-199808

main44250-30141iJZS155..RHD199707

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGS151,JZS155199512

45460ROD ASSY, TIE, RH

main45460-39445iGS151,JZS155199512-199908

main45460-59035iJZS155199908

45470ROD ASSY, TIE, LH

main45470-39155iGS151,JZS155199512-199908

main45470-59035iJZS155199908

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGS151,JZS155199512

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-30020iGS151,JZS155199512

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816022

main90468-16022

12 parts on this diagram · 6 diagrams in section
