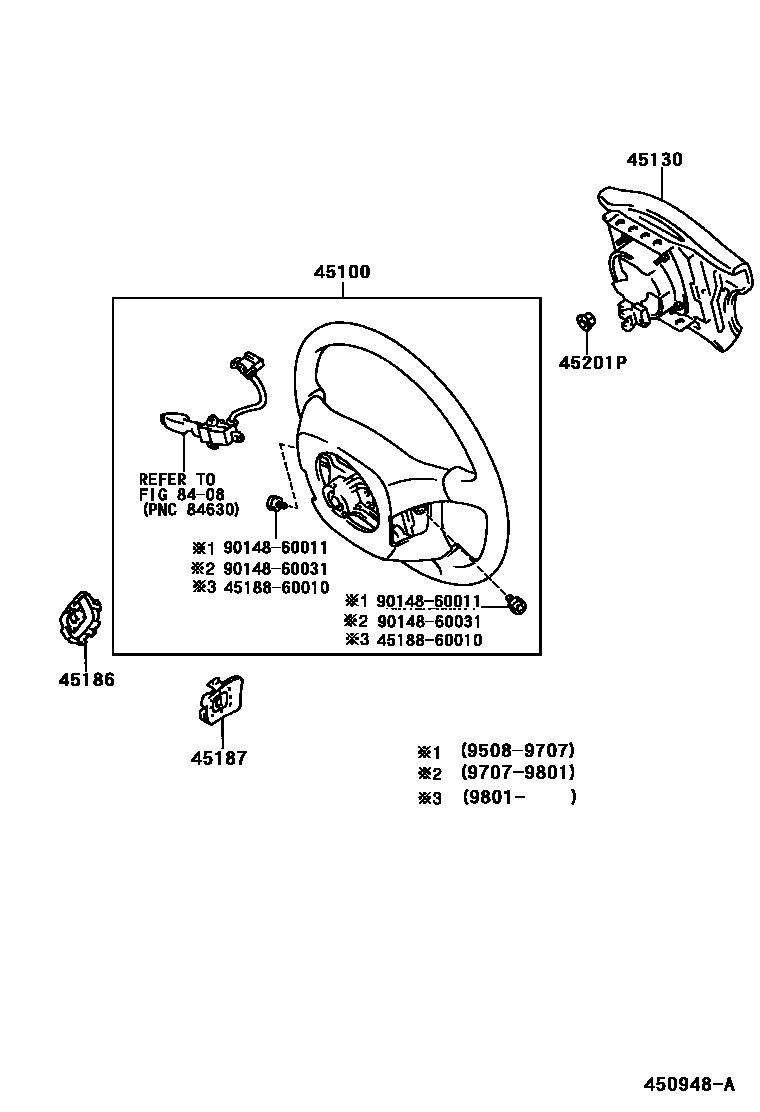

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,ANTELOPE,TRIM4#
3SPOKE,POLYPROPYLENE,DK.BLUE GRAY,TRIM1#
3SPOKE,POLYPROPYLENE,ANTELOPE,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.BLUE GRAY,TRIM1#
4-SPOKE,LEATHER,LEATHER, W(*80 & CRUISE CONTROL),DK.BLUE GRAY,TRIM1#
4-SPOKE,LEATHER,LEATHER, W(*80 & CRUISE CONTROL),ANTELOPE,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),ANTELOPE,TRIM4#
4-SPOKE,LEATHER,LEATHER,ANTELOPE,TRIM4#
4-SPOKE,LEATHER,LEATHER,W(*80),ANTELOPE,TRIM4#
4-SPOKE,URETHANE,DK.BLUE GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80),DK.BLUE GRAY,TRIM1#
4-SPOKE,URETHANE,ANTELOPE,TRIM4#
4-SPOKE,URETHANE,W(*80),ANTELOPE,TRIM4#
4-SPOKE,URETHANE,DK.BLUE GRAY,TRIM1#
4-SPOKE,URETHANE,ANTELOPE,TRIM4#
4-SPOKE,LEATHER,ANTELOPE,TRIM4#
4-SPOKE,LEATHER,ANTELOPE,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),DK. BLUE GRAY,TRIM1#
4-SPOKE,LEATHER,DK. BLUE GRAY,TRIM1#
4-SPOKE,LEATHER,W(CRUISE CONTROL),ANTELOPE,TRIM4#
4-SPOKE,LEATHER,W(CRUISE CONTROL),DK. BLUE GRAY,TRIM1#
4-SPOKE,LEATHER,W(CRUISE CONTROL),ANTELOPE,TRIM4#
45130BUTTON ASSY, HORN
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
W(*80),DK.BLUE GRAY,TRIM1#
DK.BLUE GRAY,TRIM1#
W(CRUISE CONTROL) OR W(*80),DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
W(*80),ANTELOPE,TRIM4#
W(CRUISE CONTROL) OR W(*80),ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
W(*80),DK.BLUE GRAY,TRIM1#
W(*80),ANTELOPE,TRIM4#
W(*80 & CRUISE CONTROL),DK.BLUE GRAY,TRIM1#
W(*80 & CRUISE CONTROL),ANTELOPE,TRIM4#
W(CRUISE CONTROL),DK.BLUE GRAY,TRIM1#
W(CRUISE CONTROL),ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
W(*80),DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
W(*80),ANTELOPE,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
45201PNUT, STEERING WHEEL SET
8408CRUISE CONTROL (AUTO DRIVE)
4518860010SCREW, STEERING WHEEL PAD ATTACHING
main45188-60010
9014860011
main90148-60011
9014860031
main90148-60031
9 parts on this diagram · 2 diagrams in section
