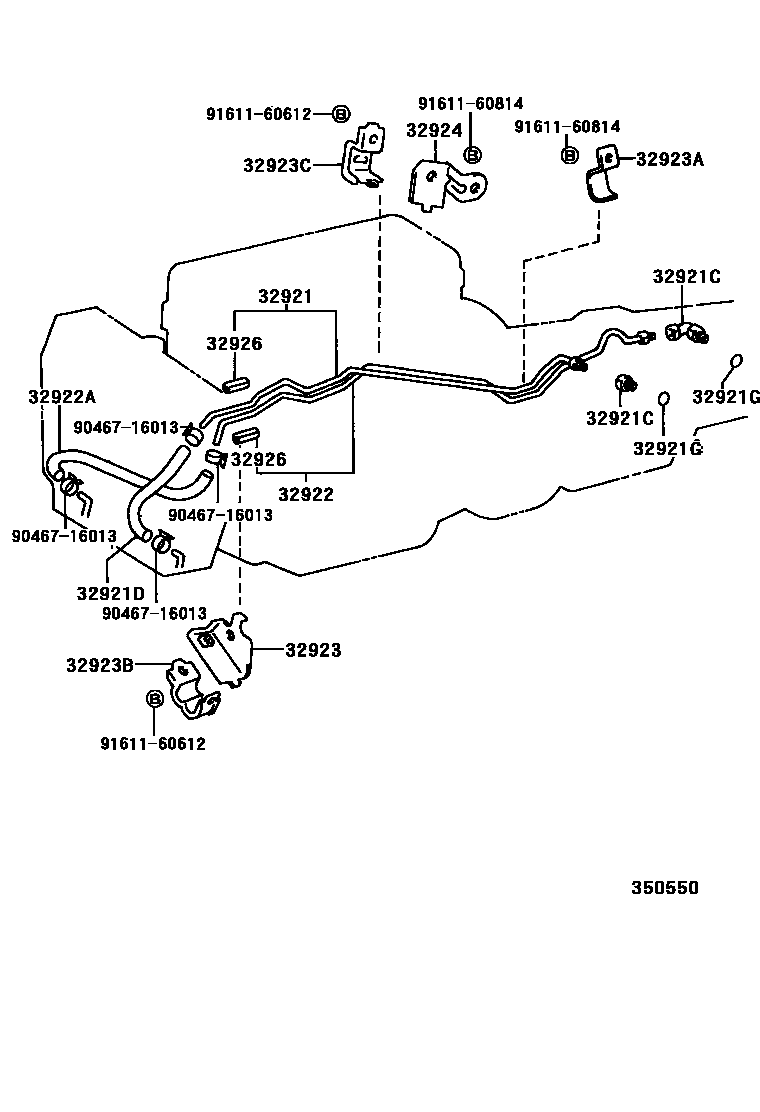

OIL COOLER & TUBE (ATM)

0001 1A340E 0002 1A42DE

32921TUBE, OIL COOLER INLET, NO.1

main32921-22650iGS151199707-199808

main32921-30610iJZS155..4FC199512

32921CUNION(FOR OIL COOLER TUBE)

main90404-14021iGS151199707-199808

INLET

main90404-16029iJZS155..4FC199512

INLET

main90407-14003iGS151199707-199808

OUTLET

main90407-16009iJZS155..4FC199512

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15048iGS151199707-199808

main90445-17110iJZS155..4FC199512

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGS151199707-199808

main90301-11006iJZS155..4FC199512

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22650iGS151199707-199808

main32922-30610iJZS155..4FC199512

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iJZS155..4FC199512

main90445-15020iGS151199707-199808

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30080iGS151199707-199808

main32924-22090iJZS155..4FC199512

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-30140iJZS155..4FC199512

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-30160iJZS155..4FC199512

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32929-22050iJZS155..4FC199512

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30200iJZS155..4FC199512

main32924-22120iGS151199707-199808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGS151199707-199808

L=35,ID=8

main32926-30020iJZS155..4FC199512

L=35,ID=10,CENTER

main32926-30030iJZS155..4FC199512

L=35,ID=10,REAR

main32926-30060iJZS155..4FC199512

L=35,ID=10,FRONT

9046716013

main90467-16013

9161160612

main91611-60612

9161160814

main91611-60814

15 parts on this diagram · 2 diagrams in section
