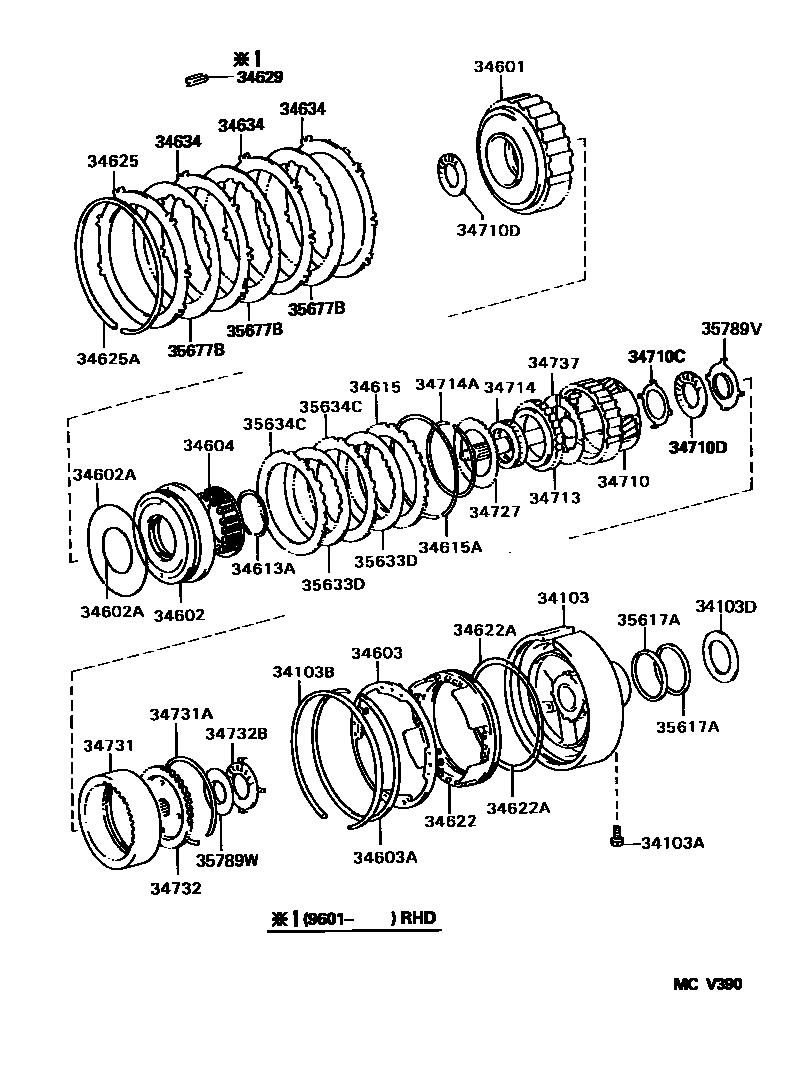

OVERDRIVE GEAR (ATM)
34103SUPPORT SUB-ASSY, OVERDRIVE
34103ABOLT (FOR OVERDRIVE SUPPORT)
AXLE CODE=A02A
34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)
34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
AXLE CODE=A02A
AXLE CODE=A01A
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
INNER
INNER
OUTER
OUTER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
34615FLANGE, OVERDRIVE CLUTCH
T=3.1
T=3.2
T=3.3
T=3.7
T=3.8
T=3.6
T=3.5
T=3.4
T=3.3
T=3.2,AXLE CODE=A02A
T=3.1,AXLE CODE=A02A
T=3.7
T=3.8
T=3.4
T=3.5
T=3.6
T=4.0
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622PISTON, OVERDRIVE BRAKE
AXLE CODE=A01A
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
INNER
OUTER
OUTER
INNER
INNER
OUTER
34625FLANGE, OVERDRIVE BRAKE, NO.1
T=3.3,MARK 33
T=3.8,MARK 38
T=3.9,MARK 39
T=4.0,MARK 40
T=4.0
T=4.0
T=3.9,MARK 82
T=3.8,MARK 81
T=3.7,MARK 80
T=3.6,MARK 79
T=3.5,MARK 78
T=3.3,MARK 77
T=4.0,MARK 83
T=3.5,MARK 35
T=3.6,MARK 36
T=3.7,MARK 37
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34629SPRING, OVERDRIVE BRAKE PLATE STOPPER
34634PLATE, OVERDRIVE BRAKE
34710GEAR ASSY, OVERDRIVE PLANETARY
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
CENTER
FRONT
REAR
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
REAR
FRONT
REAR
FRONT
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34727PLATE, RETAINING (FOR OVERDRIVE)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
34732FLANGE, OVERDRIVE PLANETARY RING GEAR
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
T=2.0
T=2.5
T=2.25-2.35
T=1.95-2.05
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
AXLE CODE=A02A
35789VRACE, THRUST BEARING
35789WRACE, THRUST BEARING
37 parts on this diagram · 2 diagrams in section
