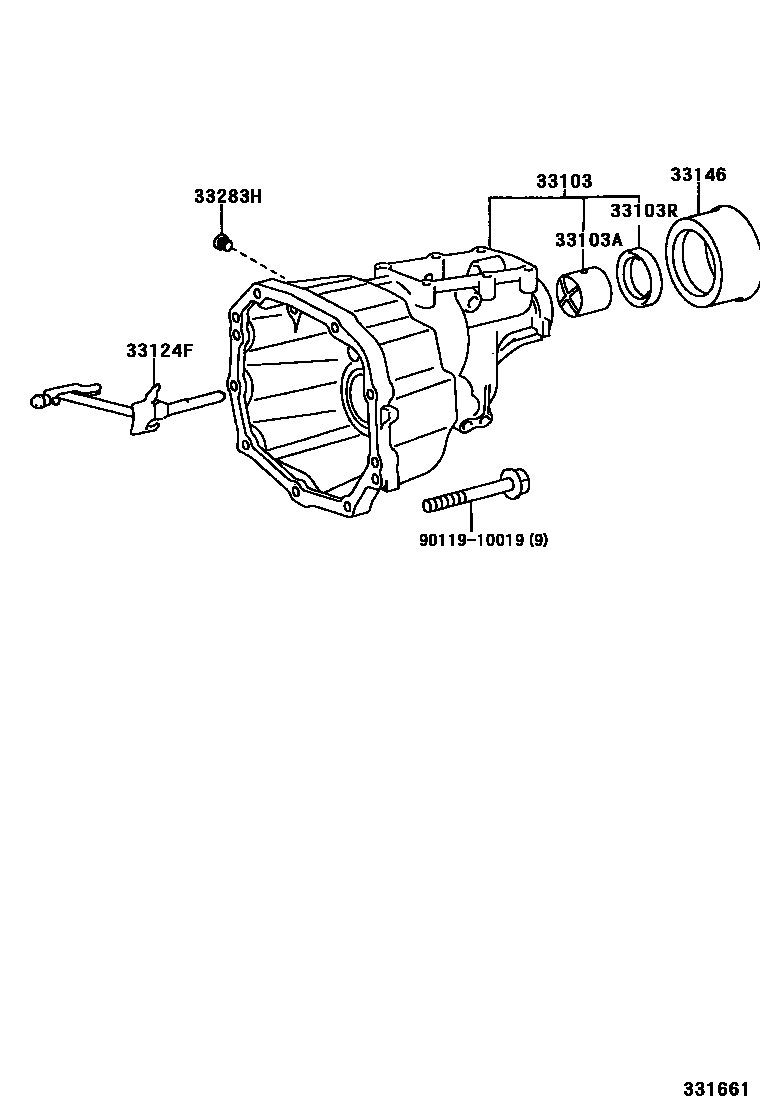

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-30201iJZS155..5F199512-199909

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73105iJZS155..5F199512-199909

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iJZS155..5F199512-199909

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33106-30040iJZS155..5F199512-199909

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iJZS155..5F199810-199909

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iJZS155..5F199512-199909

9011910019

main90119-10019

7 parts on this diagram · 1 diagram in section
