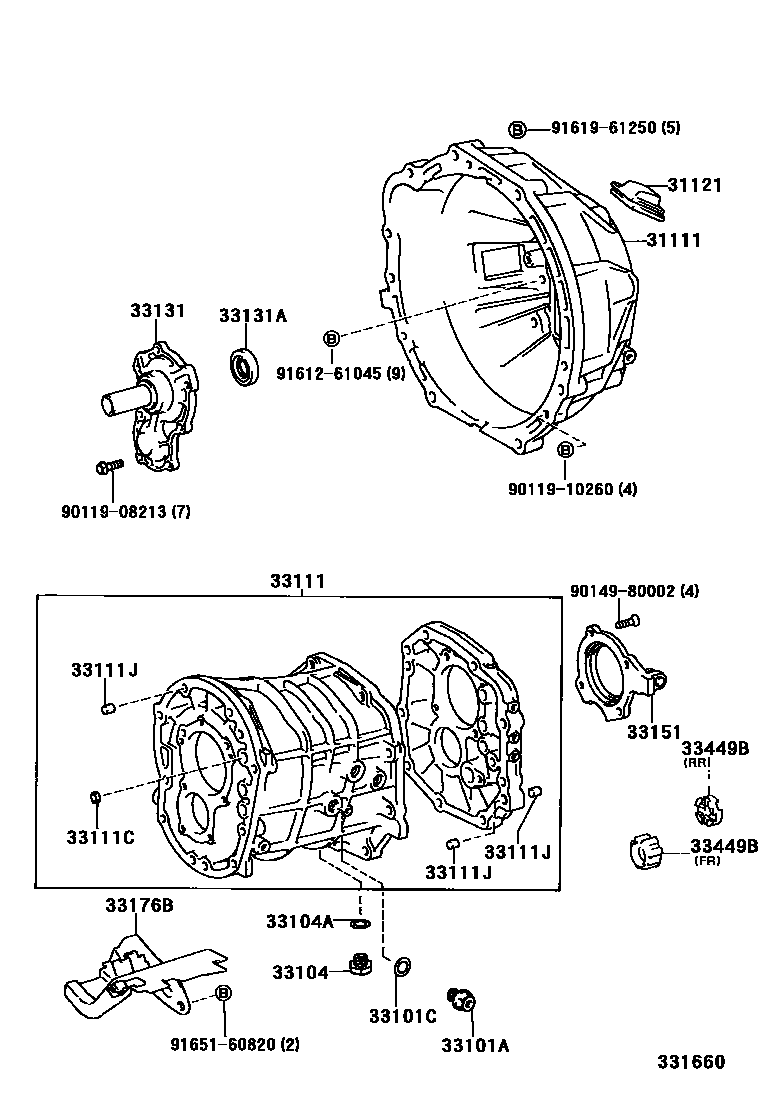

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-22140iJZS155..5F199512-199909

31121COVER, CLUTCH HOUSING, NO.1

main31121-35020×2iJZS155..5F199512-199909

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iJZS155..5F199512-199909

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iJZS155..5F199512-199909

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZS155..5F199512-199909

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iJZS155..5F199512-199909

33111CASE, MANUAL TRANSMISSION

main33101-30071iJZS155..5F199512-199909

33111CPLUG(FOR TRANSMISSION CASE)

main96411-41800×2iJZS155..5F199512-199909

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iJZS155..5F199512-199909

L=16,OD=12

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iJZS155..5F199512-199909

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iJZS155..5F199512-199909

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iJZS155..5F199512-199909

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-30020iJZS155..5F199512-199909

33449BMAGNET, TRANSMISSION

main33449-30010iJZS155..5F199512-199909

RR

main33449-30020iJZS155..5F199512-199909

FR

9011908213

main90119-08213

9011910260

main90119-10260

9014980002

main90149-80002

9161261045

main91612-61045

9161961250

main91619-61250

9165160820

main91651-60820

20 parts on this diagram · 1 diagram in section
