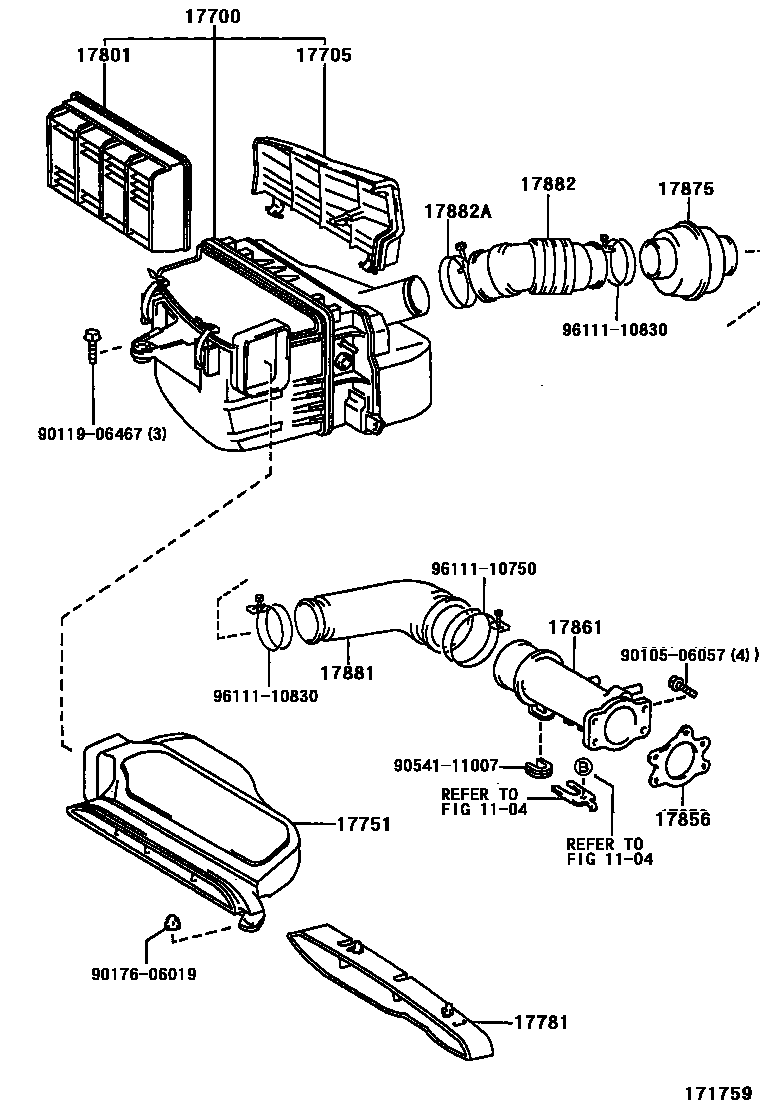

AIR CLEANER

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17700CLEANER ASSY, AIR

main17700-46260i1GFE..GS151199707-199808

17705CAP SUB-ASSY, AIR CLEANER

main17705-46150i1GFE..GS151199707-199808

17751INLET, AIR CLEANER, NO.1

main17751-46060i1GFE..GS151199707-199808

17781SEAL, AIR CLEANER INLET

main17781-70010i1GFE..GS151199707

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i1GFE..GS151199707-199808

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GS151199707-199808

17861CONNECTOR, INTAKE AIR

main17860-46031i2JZGE..JZS155..LHD199512-199909

main17860-46090i2JZGE..JZS155..RHD199512-199707

W(VVT)

main17860-46120i2JZGE..JZS155..RHD199707-199807

W(VVT)

main17860-46121i2JZGE..JZS155..RHD199807-199909

W(VVT)

main17860-46123i2JZGE..JZS155200004

main17861-70070i1GFE..GS151199707-199808

17875PIPE, INTAKE AIR CONNECTOR

main17875-70140i1GFE..GS151199707-199808

17881HOSE, AIR CLEANER, NO.1

main17881-70250i1GFE..GS151199707-199808

17882HOSE, AIR CLEANER, NO.2

main17882-70170i1GFE..GS151199707-199808

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10880i1GFE..GS151199707-199808

9010506057

main90105-06057

9011906467

main90119-06467

9017606019

main90176-06019

9054111007

main90541-11007

9611110750

main96111-10750

9611110830

main96111-10830

18 parts on this diagram · 2 diagrams in section
