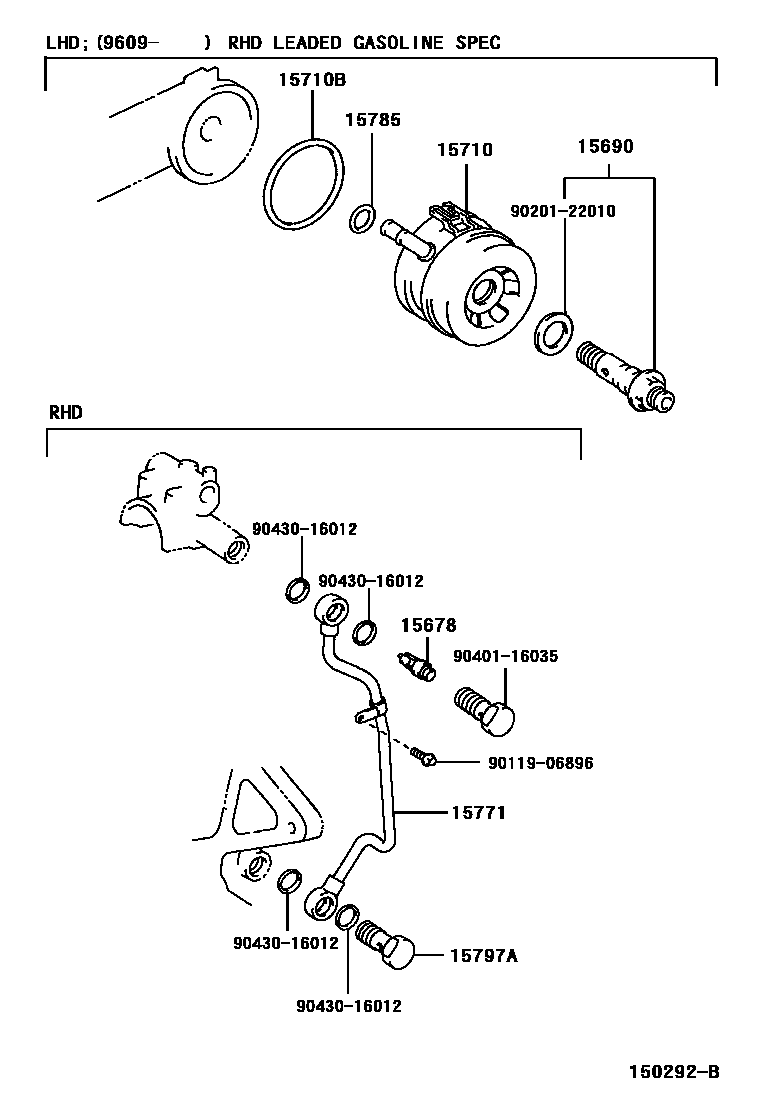

ENGINE OIL COOLER

15678FILTER, OIL CONTROL VALVE

main15678-46010i2JZGE..JZS155..RHD199512-199907

main15678-46020i2JZGE..JZS155..RHD199907-199909

15690VALVE ASSY, OIL COOLER RELIEF

main15690-46010i2JZGE..JZS155..RHD..SED199609-199909

LEADED GASOLINE SPEC

15710COOLER ASSY, OIL

main15710-46030i2JZGE..JZS155..LHD199512-199909

15710BRING, O(FOR OIL COOLER)

main90301-61003i2JZGE..JZS155..LHD199512-199608

main90301-61004i2JZGE..JZS155..LHD199608-199909

15771PIPE, OIL, NO.1

main15771-46010i2JZGE..JZS155..RHD199512-199909

15785GASKET, OIL COOLER

main15785-35010i2JZGE..JZS155..LHD199512-199909

15797ABOLT, OIL CHECK VALVE

main15797-46010i2JZGE..JZS155..RHD199512-199909

9011906896

main90119-06896

9020122010

main90201-22010

9040116035

main90401-16035

9043016012

main90430-16012

11 parts on this diagram · 1 diagram in section
