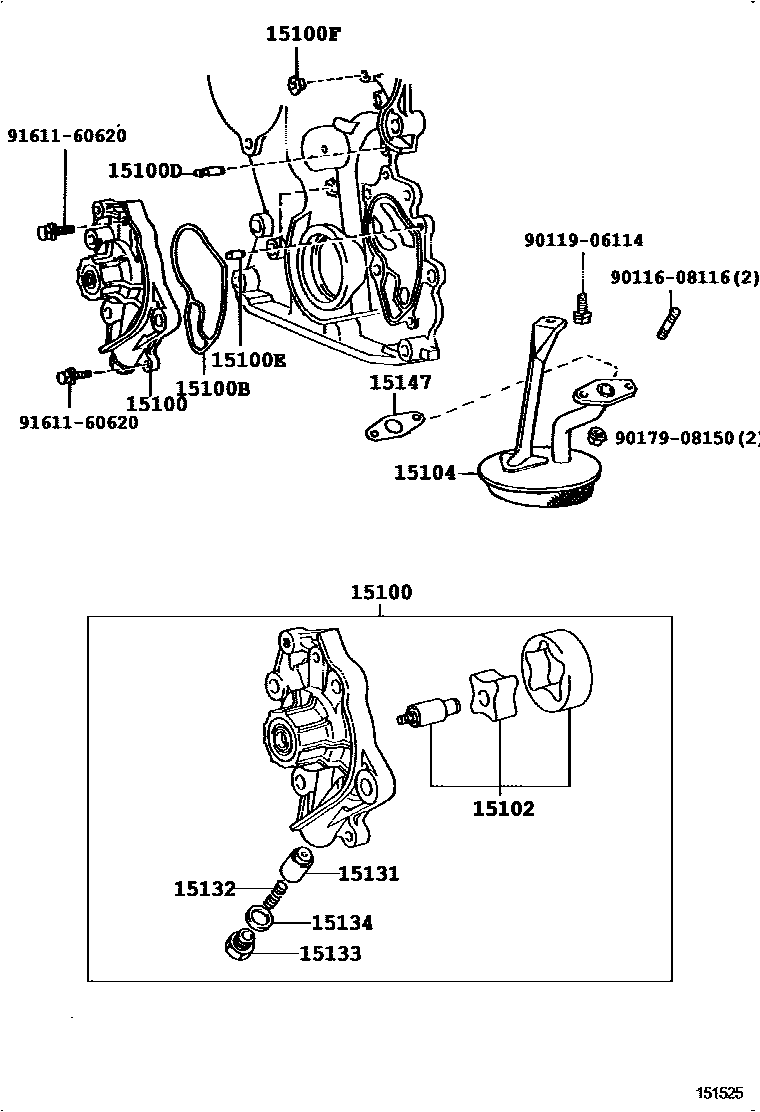

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-46041i2JZGE..JZS155..LHD199512-199602

main15100-46042i2JZGE..JZS155..RHD..SED199609-199909

LEADED GASOLINE SPEC

main15100-46060i2JZGE..JZS155..RHD199512-199607

main15100-46090i2JZGE..JZS155..RHD199607-199909

W(VVT)

main15100-46091i2JZGE..JZS155200105

main15100-70030i1GFE..GS151199707-199808

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS151199707-199808

main96721-24022i2JZGE..JZS155199512

N0.1

main96721-24031i2JZGE..JZS155199512

N0.2

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS151199707-199808

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GS151199707-199808

15100FBUSH (FOR OIL PUMP)

main90029-38302i1GFE..GS151199707-199808

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS151199707-199808

15104STRAINER SUB-ASSY, OIL

main15104-46060i2JZGE..JZS155199512-199909

main15104-70040i1GFE..GS151199707-199808

15131VALVE, OIL PUMP RELIEF

main15131-17010i2JZGE..JZS155..LHD199512-199909

main15131-24010i1GFE..GS151199707-199808

main15131-46060i2JZGE..JZS155..RHD199512-199909

W(VVT)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GS151199707-199808

main15132-46020i2JZGE..JZS155..LHD199512-199909

main15132-46060i2JZGE..JZS155..RHD199512-199909

W(VVT)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JZS155199909

main15133-20010i1GFE..GS151199707-199808

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2JZGE..JZS155199512-199909

main15134-70030i1GFE..GS151199707-199808

15147GASKET, OIL STRAINER

main15147-46010i2JZGE..JZS155199512-199909

main15147-70021i1GFE..GS151199707-199808

9011608116

main90116-08116

9011906114

main90119-06114

9017908150

main90179-08150

9161160620

main91611-60620

16 parts on this diagram · 2 diagrams in section
