ENGINE OVERHAUL GASKET KIT

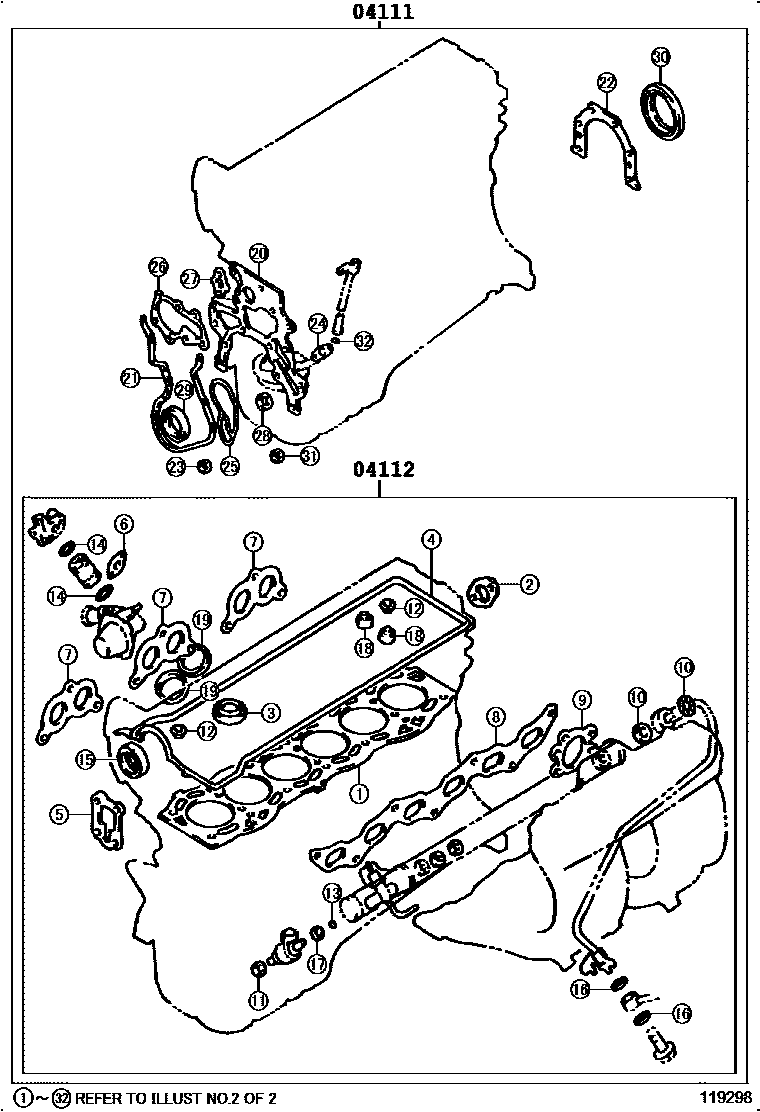

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-46044i199512-199608
sub04111-46045
main04111-46045i199608-199909
main04111-46045i199609-199909
LEADED GASOLINE SPEC
main04111-46100i199512-199609
main04111-46101i199609-199707
sub04111-46102
main04111-46102i199707-199909
W(VVT)
main04111-70062i199707-199808
04112GASKET KIT, ENGINE VALVE GRIND
main04112-46044i199512-199608
sub04112-46045
main04112-46045i199608-199909
main04112-46045i199609-199909
LEADED GASOLINE SPEC
main04112-46100i199512-199609
main04112-46101i199609-199707
sub04112-46102
main04112-46102i199707-199909
W(VVT)
main04112-70061i199707-199808

2 parts on this diagram · 4 diagrams in section
